MTD 125-224-000 (1985) Self Propelled Mower

Model: 125-224-000 (1985)

Save
 Part Not Listed?Part Not Listed?
product name

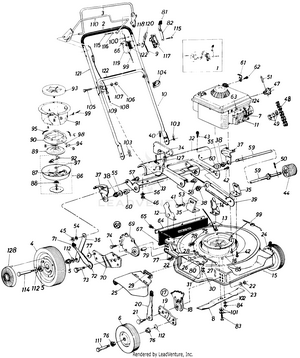

Parts02

...
...
1
Kit-Control Housing Comp. MTD-753-0361
...
2
Grip MTD-718-0145
...
3
Control Handle Ass'y. Comp.-L. H . MTD-731-0609
...
4
RearWheel Ass'y.-Comp. 9x 1.75 MTD-734-1204
...
5
Fl-Ball Brg. 1/2" I.D. MTD-941-0180
...
6
Front Wheel Ass'y.-Comp. 8 x 1 .75 MTD-NA
...
xx
Smooth MTD-734-0843
...
xx
Waffle Tread MTD-734-0894
...
xx
Twinline Tread MTD-734-0661
...
xx
Smooth MTD-734-0845
...
xx
Waffle Tread MTD-734-0645
...
xx
Twinline Tread MTD-734-0643
...
7
Spark Plug Boot MTD-735-0639
...
8
22" Blade MTD-742-0222
...
9
Throttle Wire 55" Lg. MTD-946-0671A
...
10
Lower Handle MTD-749-0928A-0637
...
xx
Lower Handle MTD-749-0928A-0637
...
11
Engine MTD-NA
...
12
Handle Brkt. Ass'y.-R.H. MTD-12936
...
13
Hex Wash. Hd. "B"-Tap Scr. 5/16-18 x .50" Lg. MTD-710-0603
...
14
Handle Brkt. Ass'y.-L.H. MTD-12935
...
15
22" DeckAss'y. MTD-14999
...
16
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
17
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
18
Height Adjustment Plate MTD-787-01290A
...
19
Pivot Bar MTD-15262B
...
20
Front Spring Lever MTD-94832
...
xx
Front Spring Lever MTD-94832
...
xx
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
21
Shoulder Bolt .50" Dia. MTD-738-0507B
...
22
Hex Nut 3/8-16 Thd. MTD-712-0798
...
23
Bell Washer .39" I.d. x 1.38" O.D. MTD-936-0356
...
24
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
25
Chute Deflector Ass'y. MTD-931-1034B
...
26
Deflector Hinge Plate Ass'y. MTD-11130
...
27
Pivot Pin MTD-711-0555
...
28
PUSH NUT MTD-726-0106
...
29
Torsion Spring MTD-732-0253
...
30
Hex Nut 1/4-20 Thd. MTD-912-0287
...
31
L-Wash. 1/4" I.D. MTD-936-0329
...
32
Pinion Pivot Cover 22" MTD-16319
...
33
Cam MTD-16346
...
34
Engagement Arm MTD-16318
...
35
Pivot Bracket MTD-14759
...
36
Link MTD-16005
...
37
Axle Brkt. MTD-14757
...
38
Fl-Ball Brg. 1/2" I.D. MTD-941-0180
...
39
Brg. Support MTD-14877
...
40
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
41
Hex Bolt 3/8-16 x .50" Lg. MTD-710-0168
...
42
Hex AB-Tap Scr. 1/4 x .62" MTD-710-0892
...
43
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
44
Drive Pinion MTD-717-0807
...
45
HEX NUT 5/16-18 MTD-712-3010
...
46
Hex Nut 1/4-20 Thd. MTD-912-0287
...
47
10 Tooth Sprocket Ass'y. MTD-713-0308
...
48
#48 Chain 1/2" Pitch 50 Links MTD-913-0311
...
49
Master Link MTD-713-0116
...
50
Roll Pin 3/16 x 1.25" MTD-915-0246
...
51
Spring Pin Spir. 3116" Dia. x 1.00" Lg. MTD-715-0247
...
53
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
54
Lock Wash. 5/16" I.D. MTD-936-0119
...
55
Fl-Wash. .531" I.D. x.930" MTD-736-0160
...
56
L-Wash. 1/4" I.D. MTD-936-0329
...
57
Shoulder Bolt MTD-938-0155
...
58
Shoulder Nut.825 x .165 Lg. MTD-938-0529
...
59
Pinion Shaft w/7 Tooth Sprocket MTD-738-0530
...
60
BALL BEARING MTD-941-0484
...
61
Casing Clamp MTD-12894
...
62
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
63
Casing Clamp MTD-751-0369
...
64
Retaining Strip MTD-14846
...
65
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
66
Fl-Wash. .203 I.D. x .406 O.D. MTD-736-0931
...
67
Rear Flap Ass'y. MTD-731-1029
...
68
Rear Height Adj. Ass'y.-Comp.-R. H. MTD-14762
...
xx
Rear Height Adj. Ass'y.-Comp.-L.H. (Not Shown) MTD-14763
...
69
Index Plate MTD-14764C
...
70
Pivot Bar-R.H. MTD-14765
...
xx
Pivot Bar-L.H. (Not Shown) MTD-14766
...
71
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
72
Spring Lever MTD-732-0417A
...
73
Shoulder Bolt .500" Dia. x .433" Lg. MTD-738-0528
...
74
Hex Bolt 3/8-16 x .75" Lg. MTD-710-0216
...
75
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
76
Front Wheel Bearing MTD-NA
...
xx
Plastic MTD-738-0102
...
xx
3/8" Ball MTD-741-0267
...
xx
BALL BEARING MTD-941-0484
...
xx
Spacer MTD-750-0434
...
77
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
78
Bell-Wash. .345" I.D. x.88" MTD-736-0242
...
79
Spacer .383" I.D. x .503" O.D. x.562" Lg. MTD-950-0503
...
80
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
81
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
82
Lockout Lever MTD-732-0401
...
83
Hex Bolt 3/8-24 x 200" Lg. (Grade 8) MTD-710-0818
...
84
Hex Nut 3/8-24 Thd. MTD-712-0241
...
85
Blade Brake Clutch Comp. MTD-717-0487
...
86
Clutch Blade Housing Ass'y. MTD-14300
...
87
Compression Spring 35" O.D. x 200" Lg. MTD-732-0396
...
88
BALL BEARING MTD-941-0600
...
89
Clutching Cone MTD-14304
...
90
Brake Cup Cone MTD-14305
...
91
Clutch Housing MTD-14307
...
92
Hex Tap L-Scr. 1/4 -20 x .75" MTD-710-0875
...
93
Fan Adapter MTD-719-0256
...
94
Ball Block MTD-731-0520
...
95
Extension Spring .35" O.D. x 1.75" Lg. MTD-732-0397
...
97
Fl-Wash. .690" I.D. x 1.060" O.D. MTD-736-0333
...
98
Steel Ball.500" Dia. MTD-741-0326
...
99
Clutch Cable-43" MTD-746-0402
...
100
Lock Pin .314" Dia. x 1.70" MTD-731-0607
...
101
Bell-Wash. .400" I.D. x.88" MTD-736-0105
...
102
L-Wash. 3/8" I.D. MTD-736-0169
...
103
Intern. Cot. Pin 5/16" Dia. MTD-714-0104
...
104
Cable Tie MTD-726-0192
...
105
Curved Carriage Bolt 5/16-18 x 1.38" Lg. MTD-710-0671
...
106
HEX NUT 5/16-18 MTD-712-3010
...
107
Lock Wash. 5/16" I.D. MTD-936-0119
...
108
Clutch Cable w/Spring MTD-746-0549
...
109
Cable Brkt. MTD-16309A
...
110
Control Handle MTD-16391
...
111
Axle Bolt MTD-NA
...
112
Fl-Wash. .531" I.D. x 93" MTD-736-0192
...
114
Shld. Bolt.498" Dia. x 1.64 MTD-738-0144
...
115
Truss Mach. Scr. #12 x 1 50" Lg MTD-710-0796
...
116
Spacer.23" I.D. MTD-750-0649
...
117
Control Panel Half MTD-731-0523
...
118
Control Disc Pin MTD-731-0524
...
119
Clutch Panel Half MTD-731-0526
...
120
Throttle Control Lever MTD-931-0972
...
121
Upper Handle (Chrome) MTD-749-0536
...
xx
Upper Handle (Painted) MTD-749-0538
...
122
Control Labels MTD-777-5166
...
124
Hex Wash. Hd. AB-Tap Scr. #8 x .38" Lg. MTD-710-0227
...
127
Compression Spring MTD-932-0306A
...
128
Hub Cap MTD-NA
...
xx
Red MTD-731-0124
...
xx
Orange MTD-731-0254
...
xx
Black MTD-731-0354
...
xx
Gray MTD-731-0355
...
xx
Hardware Pack MTD-8284-000-5
...
...
...
