MTD 124-528A000 (1994) Self Propelled Mower

Model: 124-528A000 (1994)

Save Part Not Listed?
product name

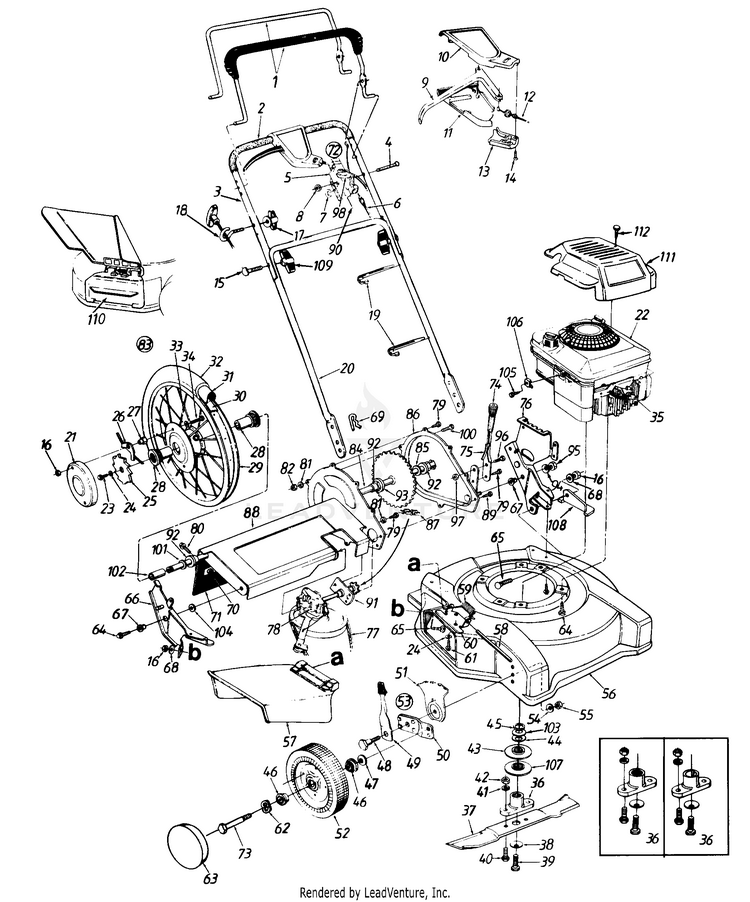

Engine, Handle, Wheel, Transmission Ass'y

...
...
1
Std. Control Handle (Deluxe) MTD-747-0824B-0637
...
xx
Std. Control Handle (Std.) MTD-747-0824B-0637
...
2
FOAM GRIP - 9" (Optional) MTD-720-0294A
...
3
UPPER HANDLE MTD-749-0539C-0637
...
4
Oval C-Sunk Scr. MTD-710-0605
...
5
Throttle Body New Part MTD-946-0875
...
6
Control Cable 39" MTD-946-0550
...
7
Curved Spring Wash. .66" I.D. MTD-936-0501
...
8
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
9
Drive Control MTD-731-0620A
...
10
Control Cover Half-Lower MTD-753-0833
...
11
Control Cover Half-Lower MTD-753-0833
...
12
S.P. Cable MTD-946-0710A
...
13
Control Cover Half-Lower MTD-753-0833
...
14
FL-"C" Sunk Hd. Tap Scr. #10 x .75" Lg. MTD-710-0841
...
15
Curved hd. Bolt 5/16-18 x 2" Lg. MTD-710-1174
...
16
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010
...
17
Handle Knob 1/4-20 Thd. New Part MTD-720-0279
...
18
Rope Guide MTD-710-1205
...
19
Cable Tie MTD-725-0157
...
20
Lower Handle MTD-749-0928A-0637
...
21
COVER-WHEE MTD-14967
...
22
Engine MTD-NA
...
23
SCREW 1/4-20X.75 GR5 MTD-710-0812
...
24
SPRING WASHER BELL MTD-736-0270
...
25
WHEEL RACHET MTD-748-0312
...
26
PAWL MTD-748-0315
...
27
HEX NUT MTD-712-0329
...
28
FLANGE BEARING MTD-741-0485
...
29
WHEEL RIM 16.0 x 2 MTD-734-1399
...
30
RIM STRIP MTD-734-1400
...
31
TUBE-16 x 2.12 MTD-734-1397
...
32
CHEVRON TIRE 16 x 2.125 MTD-734-1396
...
33
Washer, Lock, 5/16 MTD-936-0104
...
34
Hex Bolt 5/16-18 x 1.0" (Gr. 5) MTD-710-0376
...
35
INSULATOR-SPARK PLUG (Optional) MTD-735-0639
...
36
SPLINED BLADE ADAPTER KIT Used with Splined Crankshaft MTD-753-0485
...
xx
Blade Adapter Kit MTD-753-0484
...
37
22" BLADE MTD-742-0622
...
xx
22" Mulching Blade (Optional) MTD-942-0722
...
38
BELL WASHER Used with Splined Crankshaft MTD-936-0453
...
xx
Bell-Wash. .39" I.D. MTD-736-0452
...
39
Hex Bolt 7/16-20 x 1.5" Lg. Used with Splined Crankshaft MTD-710-0757
...
xx
Hex Bolt 3/8-24 x 1.5" Lg. Used with keyed Crankshaft. MTD-710-1044
...
40
SCREW 3/8-24 C 1.00 GR5 MTD-710-1055
...
41
L-Wash. 3/8" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-736-0169
...
42
Hex Nut 3/8-24 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-0241
...
43
SERRATED HALF PULLEY Used with Splined Crankshaft MTD-756-0502
...
xx
UPPER HALF PULLEY Used with keyed Crankshaft. MTD-756-0962
...
44
BELL-WASH 1.01" I.D. Used with Splined Crankshaft MTD-736-0450
...
xx
FL-Wash. 88" I.D. Used with keyed Crankshaft. MTD-736-0514
...
45
SPACER-CRANKSHAFT MTD-748-0332
...
xx
ENGINE CRANK SPACER Used with keyed Crankshaft. MTD-748-0358
...
46
BALL BEARING (Optional) MTD-941-0484
...
47
Bell-Wash. .38" I.D. MTD-736-0105
...
48
Shld. Bolt .5" MTD-738-0507B
...
49
Front Spring Lever MTD-94832
...
50
Pivot Bar MTD-15262B
...
51
Height Adjustment Plate MTD-787-01290A
...
52
Wheel Ass'y. Comp. See "Front Wheel Chart" illustration and parts list MTD-NA
...
53
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) (Not Shown) MTD-753-06761
...
54
BELL WASHER MTD-936-0356
...
55
Hex Nut 3/8-16 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-0798
...
56
DECK ASSEMBLY New Part MTD-682-0001A
...
57
CHUTE DEFLECTOR MTD-931-1034B
...
58
Hinge Pin MTD-747-0710A
...
59
Torsion Spring MTD-932-0593
...
60
PLATE-ADAPTER MTD-17032A
...
61
Hex TT-Tap Scr. 1/4-20 x .5" MTD-710-0599
...
62
Wave Washer.510 ID x.750 OD (Used w/Ref. 46) MTD-936-0504
...
63
Hub Cap (Optional) MTD-731-0981C
...
63
HUB CAP (Optional) MTD-920-0249
...
63
HUB CAP-GRAY (Optional) MTD-731-0355A
...
63
HUB CAP-BLACK (Optional) MTD-731-0354
...
64
Hex TT-Tap Scr. 3/8-16 x 1" MTD-710-0654A
...
65
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
66
BRACKET ASSEMBLY (RH) MTD-16136B
...
67
SHOULDER SPACER MTD-750-0624
...
68
Bell-Wash. 5/16" I.D. MTD-736-0242
...
69
Intern. Cotter Pin 5/16" Dia. MTD-714-0104
...
70
STRIP ASSEMBLY RETAINING MTD-16563A
...
71
FLAP-RR MTD-731-1172
...
72
Throttle Box Comp. (Incl. Ref. 4, 5, 7, 8, 98) MTD-811-0185
...
73
Front Axle Bolt MTD-738-0102
...
74
Grip MTD-720-0223
...
75
HEIGHT ADJUSTMENT LEVER MTD-732-0655
...
76
BRACKET (LH) MTD-682-3004
...
77
BELT 3/8 x 32.2" MTD-954-0369
...
78
TRANSMISSION (See Breakdown) MTD-917-0417B
...
79
Hex B-Tap Scr. 1/4 x .38" Lg. MTD-710-0352
...
80
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
81
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329
...
82
HEX NUT 1/4-20 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-0287
...
83
WHEEL ASSEMBLY W/TIRE MTD-734-1398
...
84
AXLE ASSEMBLY MTD-713-0425
...
85
Fl-Wash. MTD-936-0256
...
86
CHAINCASE AND ARM ASS'Y. MTD-682-7501
...
87
#48 CHAIN MTD-713-0257
...
88
SUPPORT ASSEMBLY-DRIVE MTD-682-7500
...
89
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
90
Throttle Wire 55" Lg. MTD-946-0671A
...
91
CUP BEARING HEX MTD-16500A-0637
...
92
Hex Flange Brg. .631" I.D. MTD-741-0413
...
93
SPACER-.630 x 1.25 MTD-748-0313
...
94
FL-Wash. .385" I.D. x 87" O.D. MTD-736-0300
...
95
HEX LOCK NUT 3/8-2 MTD-912-0296
...
96
HEX SCREW 3/8-16 x .625 GR5 MTD-710-0201
...
97
Flange Lock Nut 3/8-16 MTD-912-0431
...
98
Throttle Lever MTD-946-0876
...
?99
Hex B-Tap Scr. 5/16-18 x .5" MTD-710-0603
...
100
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
101
FLAT WASHER .632 ID x .935 ODX.048 MTD-736-0302
...
102
Spacer .628" I.D. x .875" MTD-750-0547
...
103
BELL-WASH 1.01" I.D. Used with Splined Crankshaft MTD-736-0450
...
xx
WASHER SPRING Used with keyed Crankshaft. MTD-936-0513
...
104
FL-Wash. .38" I.D. x 1. O.D. MTD-736-0258
...
105
Wash. Hd. Scr. #10-32 x .62" Lg. (B&S) (B&S) MTD-710-1237
...
106
Cable Clamp (B&S) (B&S) MTD-BS-690798
...
107
HALF PULLEY-LOWER MTD-756-0961
...
108
Deck Bracket MTD-784-9014
...
109
Hand Knob MTD-920-0276
...
110
MULCH PLUG (Optional) MTD-731-1386D
...
111
SHROUD (Optional) MTD-751B281440
...
xx
SHROUD (Optional) MTD-751B281295
...
xx
ENGINE SHROUD BLACK (Optional) MTD-731-1396A
...
112
Hi-Lo Scr. #10 x 1.25" Lg. MTD-710-1256

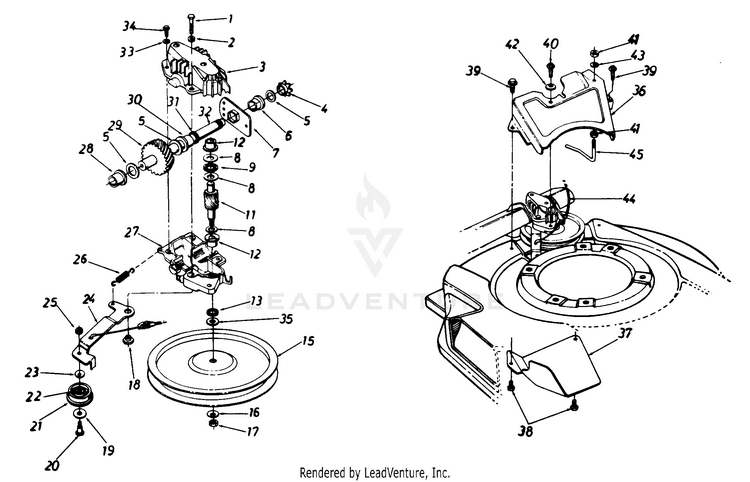

Transmission And Belt Guard

...
...
1
Hex Patch Bolt 1/4-20 x 1.25" Lg. MTD-710-1062
...
2
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-726-0329
...
3
HOUSING HALF UPPER MTD-717-0418A
...
4
SPROCKET-7T MTD-713-0400
...
5
FLAT WASHER MTD-936-0336
...
6
Hex Flange Brg. .631" I.D. MTD-741-0413
...
7
CUP BEARING HEX MTD-16500A-0637
...
8
Thrust Wash. .382" I.D. x .70" O.D. MTD-736-0314
...
9
Thrust Bearing .375" I.D. x .812" O.D. MTD-741-0479
...
11
PINION SHAFT 11T MTD-917-1216
...
12
Flange Bearing MTD-748-0208A
...
13
OIL SEAL -.375 ID MTD-721-0212
...
15
PULLEY Not Part of Transmission Complete MTD-756-0330A
...
16
SPRING WASHER BELL Not Part of Transmission Complete MTD-736-0270
...
17
Jam Nut, 1/4-28, LH Not Part of Transmission Complete MTD-712-04326
...
18
Shld. Spacer .357" Dia. x .170 Not Part of Transmission Complete MTD-738-0440
...
19
FL-Wash. .390" I.D. x 1.0" Not Part of Transmission Complete MTD-736-0344
...
20
Shld. Bolt .375" Dia. x .40" Not Part of Transmission Complete MTD-738-0826
...
21
Pulley Ass'y Idler w/ Bearing New Part; (Incl. Ref. No. 22) Not Part of Transmission Complete MTD-956-0008
...
22
Needle Brg. .375" x .375" Not Part of Transmission Complete MTD-741-0556
...
23
SPRING WASHER BELL Not Part of Transmission Complete MTD-736-0270
...
24
IDLER BRACKET ASSEMBLY Not Part of Transmission Complete MTD-17052A
...
25
Hex Patch L-Nut 1/4-28 Thd. Not Part of Transmission Complete MTD-712-0138
...
26
Extension Spring 1.12" Lg. Not Part of Transmission Complete MTD-732-0357A
...
27
HOUSING HALF-LOWER MTD-717-0419A
...
28
Flange Bearing .566 ID MTD-941-0415
...
29
SHAFT & GEAR AS MTD-717-0422
...
30
Flange Bearing .629 Dia. MTD-741-0414
...
31
Oil Seal .625 Dia. MTD-721-0213
...
32
SHAFT & GEAR AS MTD-738-0607
...
33
L-Wash. #10 I.D. MTD-736-0722
...
34
Hex Wash. Hd. Self-Tap Scr. MTD-710-0651
...
35
FLAT WASHER .260x.880x.040:HD Not Part of Transmission Complete MTD-736-0410
...
36
BELT GUARD Not Part of Transmission Complete MTD-17718
...
37
BELT COVER MTD-17064
...
38
Hex B-Tap Scr. 1/4 x .38" Lg. Not Part of Transmission Complete MTD-710-0352
...
39
Hex AB-Tap Scr. 1/4 x .50" Lg. Not Part of Transmission Complete MTD-710-0599
...
40
Hex B-Tap Scr. 1/4 x .62" Lg. MTD-710-0896
...
41
HEX NUT 1/4-20 Not Part of Transmission Complete;For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-0287
...
42
SPRING WASHER BELL Not Part of Transmission Complete MTD-736-0270
...
43
L-Wash. 1/4" I.D. Not Part of Transmission Complete;For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329
...
44
S.P. Cable Not Part of Transmission Complete MTD-946-0710A
...
45
BELT GUARD Not Part of Transmission Complete MTD-747-0549
...
xx
TRANSMISSION MTD-917-0417B
