MTD 12355S (1985) Self Propelled Mower

Model: 12355S (1985)

Save Part Not Listed?
product name

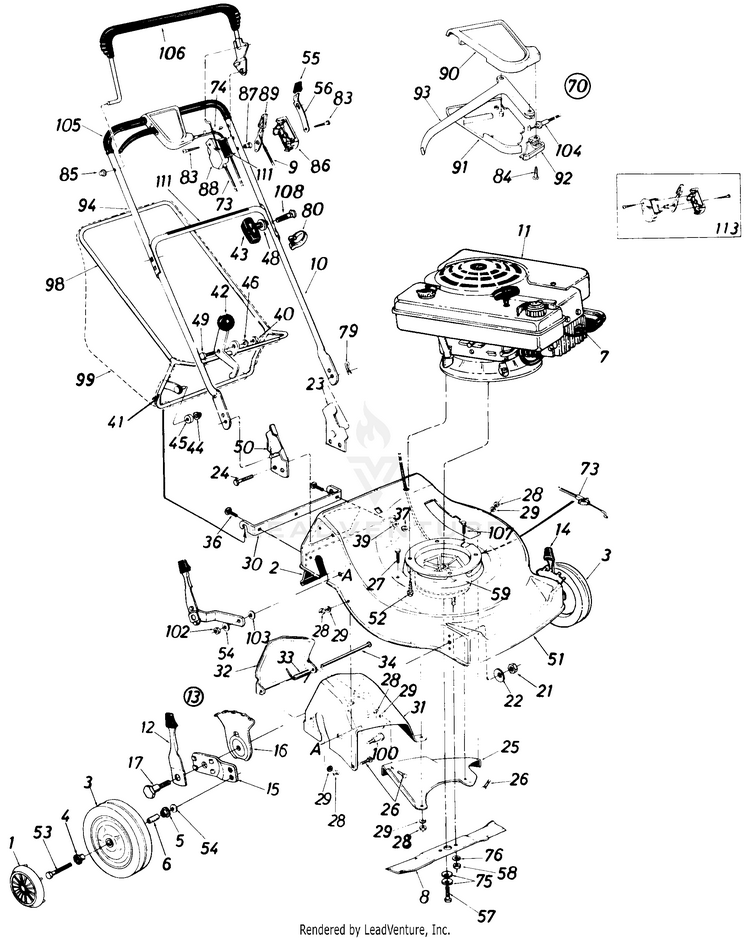

Rotary (Part 1)

...
...
1
Hub Cap Plastic MTD-731-0571
...
2
FLAP MTD-731-0581
...
3
FRONT WHEEL ASS'Y. 8 x 1.75 MTD-734-0657
...
4
FORTIFLEX BEARING MTD-741-0267
...
5
BALL BEARING MTD-941-0484
...
6
Spacer MTD-750-0434
...
7
INSULATOR-SPARK PLUG MTD-735-0639
...
8
20" BLADE MTD-742-0220
...
9
Throttle Cable MTD-946-1115
...
10
Lower Handle MTD-749-0907B
...
11
4 H.P. Engine TVS105-53055 MTD-NA
...
12
Front Spring Lever MTD-94832
...
13
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
14
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
15
Pivot Bar MTD-15262B
...
16
Height Adjustment Plate MTD-787-01290A
...
17
Shoulder Bolt .50" Dia. MTD-738-0507B
...
21
Hex Nut 3/8-16 Thd. MTD-712-0798
...
22
BELL WASHER MTD-936-0356
...
23
BRACKET ASSEMBLY MTD-12297
...
24
SCREW 1/4-14 x .625 MTD-710-0892
...
25
REAR BAFFLE L.H. MTD-13405
...
26
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
27
Hex Bolt 1/4-20 x .88" Lg.* MTD-710-0206
...
28
HEX NUT 1/4-20 MTD-912-0287
...
29
L-Wash. 1/4" I.D. MTD-936-0329
...
30
ADAPTER-GR MTD-14012
...
31
BAFFLE-CHU MTD-14235
...
32
CHUTE DOOR MTD-13407
...
33
TORSION SPRING MTD-732-0346
...
34
HINGE PIN MTD-738-0386
...
36
Carriage Bolt 1/4-20 x .75" MTD-710-0703
...
37
Sems Nut 1/4-20 Thd. MTD-712-0271
...
39
Fl-Wash. .285" I.D. x 1.25" MTD-736-0211
...
40
HEX NUT 5/16-18 MTD-712-3010
...
41
FRAME-CATC MTD-13924
...
42
GRIP ASSEMBLY- MTD-13435
...
43
Star Knob MTD-720-04072A
...
44
Push Nut 3/8 Rod MTD-726-0100
...
45
ROLLER-PLASTIC MTD-731-0430
...
46
Lock Wash. 5/16" I.D. MTD-936-0119
...
48
Bell-Wash. 5/16" I.D. MTD-736-0242
...
49
Shld. Bolt .437" Dia. x .180" MTD-738-0140
...
50
BRACKET ASSEMBLY MTD-12296B-0637
...
51
DECK ASSEMBLY-20IN MTD-16109
...
52
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
53
Axle Bolt MTD-710-0347
...
54
Bell-Wash. .44" I.D. x .88" MTD-736-0105
...
55
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
56
SPRING-LOCKOUT MTD-732-0401
...
57
Hex Bolt 3/8-24 x 2.00" Lg. (Grade 8) MTD-710-0818
...
58
Hex Nut 3/8-24 Thd. MTD-712-0241
...
59
BLADE BRAKE CLUTCH ASS'Y. COMP. MTD-717-0485
...
70
KIT-CLUTCH CONTROL MTD-753-0362
...
73
CLUTCH CABLE MTD-746-0400
...
74
LOCKING PIN MTD-731-0607
...
75
Bell-Wash. .44" I.D. x 88" MTD-736-0105
...
76
L-Wash. 3/8 I.D. MTD-736-0169
...
79
Intern. Cot. Pin 5/16" Dia. MTD-714-0104
...
80
CABLE TIE MTD-726-0192
...
83
T-russ Mach. Scr. #12 x 1.50" MTD-710-0796
...
84
Flat "C"-Sunk Hd. Scr. #10 x 1.0" Lg. MTD-710-0841
...
85
Cap Speed Nut 5/16" Rod MTD-726-0135
...
86
CONTROL PANEL HALF MTD-731-0523
...
87
CONROL DISC PIN MTD-731-0524
...
88
CLUTCH PANEL HALF MTD-731-0526
...
89
Throttle Control Lever MTD-931-0972
...
90
HALF COVER MTD-731-0617A
...
91
Control Cover Half-Lower MTD-753-0833
...
92
CABLE MOUNTING CAP MTD-731-0619
...
93
Drive Control MTD-731-0620A
...
94
Upper Handle MTD-749-0437
...
98
UPPER FRAME MTD-749-0512
...
99
GRASSBAG MTD-764-0191
...
100
Shld. Bolt .500" Dia. x .685" MTD-738-0430
...
102
Jam Nut, 3/8-16 MTD-912-3008
...
103
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
104
CABLE-CLUTCH MTD-746-0463
...
105
Grip MTD-718-0145
...
106
BAIL (LH) MTD-731-0609
...
107
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
108
Carriage Bolt 5/16-18 x 2 MTD-710-1174
...
111
Control Labels MTD-777-5196
...
113
KIT-THROTTLE MTD-753-0361
...
xx
Hardware Pack MTD-8355-400-5

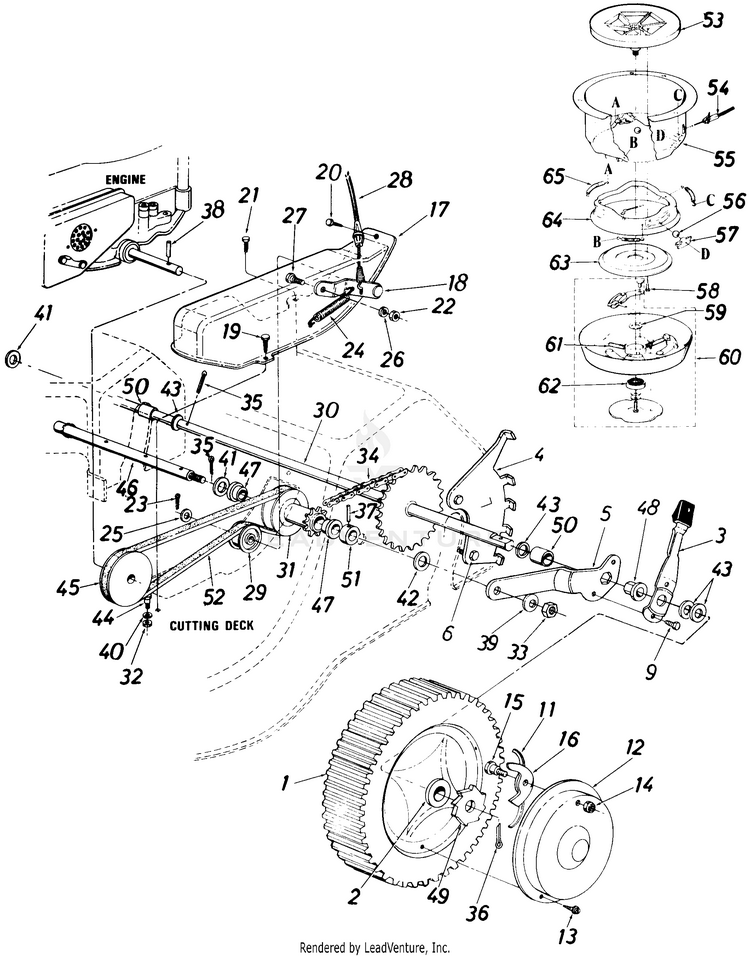

Rotary (Part 2)

...
...
1
ASS'Y. COMP. (GEAR TREAD) MTD-734-1026
...
2
BALL BEARING MTD-941-0180
...
3
LEVER-SPRING MTD-732-0467
...
4
INDEX PLATE ASS'Y. L.H. MTD-16097
...
xx
Index Plate Ass'y. R.H. (Not Shown) MTD-16098
...
5
BRACKET-PI MTD-16099
...
xx
BRACKET-PI (Not Shown) MTD-16100
...
6
SCREW 1/4-14 x .625 MTD-710-0892
...
9
Hex B-Tap Scr. 1/4 x .38" MTD-710-0352
...
11
Spring - Nylon MTD-10622B
...
12
HUB CAP MTD-10647
...
13
SCREW #12-14 x .500 MTD-710-0748
...
14
Hex Ins. L-Nut 1/4-20 Thd. MTD-712-0324
...
15
BOLT, SHOULDER, 1/4-20 x 2.65 LG MTD-738-0137
...
16
PAWL - (LH) MTD-948-0188B
...
17
Belt Cover MTD-12309
...
18
BRACKET AS MTD-13415
...
19
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
20
HEX SCREW #10-16 x 0.500 MTD-710-0456
...
21
Hex TT-Tap Scr. 1/4-20 x .75" MTD-710-0642
...
22
HEX NUT 1/4-20 MTD-912-0287
...
23
Cotter Pin 1/8" Dia. x 1.00" MTD-714-0115
...
24
Extension Spring .33 OD x 1.12 Lg. MTD-732-0357A
...
25
Fl-Wash. .531" I.D. x .930" O.D. MTD-736-0160
...
26
L-Wash. 1/4" I.D. MTD-936-0329
...
27
SHOULDER SCREW MTD-938-0255
...
28
CABLE-CLUTCH MTD-746-0463
...
29
FLAT IDLER PULLEY MTD-756-0360
...
30
SHAFT ASSEMBLY MTD-11866
...
31
PULLEY W/S MTD-756-0191
...
32
HEX NUT 5/16-18 MTD-712-3010
...
33
Jam Nut, 3/8-16 MTD-912-3008
...
34
#48 CHAIN 1/2 PITCH x 31 MTD-913-0144
...
xx
#48 MASTER LINK MTD-713-0122
...
35
Cotter Pin 3/32" Dia. x 1.00" MTD-714-0111
...
36
Cotter Pin 1/8" Dia. x 1.00" MTD-714-0115
...
37
Spring Pin Spir. 3/16" Dia. x 1.00" Lg. MTD-715-0120
...
38
SPIROL PIN MTD-715-0144
...
39
Bell-Wash. .400" I.D. x .88" O.D. MTD-736-0105
...
40
Lock Wash. 5/16" I.D. MTD-936-0119
...
41
Fl-Wash. .531" I.D. x .930" O.D. MTD-736-0160
...
42
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
43
Fl-Wash. .510" I.D. x 1.0" O.D MTD-736-0326
...
44
SHOULDER SCREW 5/16-18 x .62 GR2 MTD-738-0138A
...
45
PULLEY MTD-756-0443
...
46
SHAFT-PULLEY MTD-738-0385
...
47
Flange Brg. .506" I.D. Plastic MTD-741-0248
...
48
Flge Bearing .506 ID x .590 Lg MTD-741-0324A
...
49
RACHET-WHEEL MTD-748-0187
...
50
SPACER MTD-750-0190
...
51
SPACER MTD-750-0387
...
52
V-Belt MTD-954-0935
...
53
ADAPTER-FAN MTD-719-0256
...
54
CLUTCH CABLE MTD-746-0400
...
55
HOUSING-CL MTD-14307
...
56
STEEL BALL MTD-741-0326
...
57
BALL-BLOCK MTD-731-0520
...
58
Hex TT-Tap L-Scr. 1/4-20 x .75" Lg. MTD-710-0875
...
59
FLAT WASHER .687 x 1.060 x .032 MTD-736-0333
...
60
CLUTCH BLADE HOUSING ASS'Y. MTD-14300
...
61
SPRING MTD-732-0396
...
62
BALL BEARING MTD-941-0600
...
63
CLUTCH CONE MTD-14304
...
64
Brake Cup Cone MTD-14305
...
65
EXTENSION SPRING MTD-732-0397
