MTD 123-458B087 (1993) Self Propelled Mower

Model: 123-458B087 (1993)

Save
Part Not Listed?Part Not Listed?
product name

Front Axle Assembly

...
...
1
CLUTCH CONTROL CABLE MTD-946-0906

...
2
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599

...
3
Hex Wash. Hd. Tap Scr. 1/4-20 x .38" Lg. MTD-710-0653

...
4
Belt Cover MTD-782-7550

...
5
Roll Pin 3/16 x 1.25" MTD-915-0246

...
6
3/8" "V"-Pulley 2.75" O.D. MTD-756-0963

...
7
Grass Bag MTD-954-0271

...
8
3/8" "V"-Pulley 2.44" O.D. MTD-756-0964

...
9
Spring Pin 3/16" Dia. x .875" Lg. MTD-715-0159

...
10
Front Axle MTD-738-0953

...
11
Axle Shroud MTD-731-1361

...
12
Front Bearing Assembly MTD-982-0015

...
13
Wave-Wash. 1.01" I.D. MTD-736-0447

...
14
Height Adjuster Plate - RH MTD-782-0512B-0637

...
xx
Height Adjuster Plate - LH MTD-782-0511A-0637

...
15
Spring Lever - R.H. MTD-732-0706

...
xx
Spring Lever - L.H. MTD-732-0707

...
16
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1

...
17
Height Adj. Pivot Plate Ass'y. MTD-682-0509

...
18
DD Washer 1.5" O.D. MTD-736-0474

...
19
Snap Ring MTD-716-0102

...
21
14-T Spur Gear MTD-748-0357

...
22
E-RING FOR .500 MTD-916-0104

...
23
Wheel Dust Cap MTD-782-7551A

...
24
Front Wheel MTD-734-04223A

...
25
Fl-Wash..531" I.D. x 1" O.D. MTD-736-3013

...
26
Hairpin Clip 5/16" Dia. MTD-714-0104

...
27
Hub Cap Gray (3-1/2" Dia.) MTD-920-0249

...
28
Pulley Half MTD-956-0010

...
29
Shld. Bolt .374" Dia. x 1.94" MTD-738-0873

...
30
Idler Pivot Brkt. MTD-782-7524

...
31
Shld. Bolt .375" Dia. x .4" MTD-738-0826

...
32
Fl-Wash..39" l.D. x 1" O.D. MTD-736-0344

...
33
Idler Brkt. Ass'y. MTD-682-0014

...
34
Hex Sems Nut 1/4-20 Thd. MTD-712-0271

...
35
SHOULDER SCREW MTD-738-0572

...
36
SPRING WASHER BELL MTD-736-0270

...
37
Spring Extension 1.29" Lg. MTD-732-0709

...
38
Hex Nut 1/4-28 Thd. MTD-712-0138

...
39
Spacer.385" I.D. x.625" O.D. MTD-750-0807

...
40
Fl-ldler Plastic 1.50" Dia. MTD-956-0558

...
41
Needle Brg..375" I.D. MTD-741-0556

...
42
HEX SCREW 3/8-16 x .625 GR5 MTD-710-0201

...
43
Bell-Wash..39" I.D. x 1.13" O,D. MTD-736-0331

...
44
Hex Nut 3/8-16 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-0798

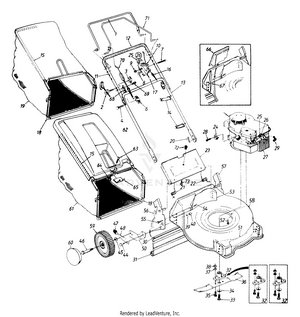

Handle And Wheel Assembly

...
...
1
Std. Control Handle MTD-747-0824B-0637

...
2
Rope Guide MTD-710-1205

...
3

...
4
Curved Hd. Bolt 5/16-18 x 2" Lg. MTD-710-1174

...
6
Hand Knob MTD-920-0276

...
7
Oval C-Sunk Mach. Scr. MTD-710-0605

...
8
Curved Spring Wash. .66" I.D. MTD-936-0501

...
9
Hex L-Nut 1/4-20 Thd. MTD-712-0324

...
10
Throttle Lever MTD-946-0876

...
11
Upper Handle MTD-749-0538C

...
12
Grip Foam (Optional) MTD-720-0295

...
13
Lower Handle MTD-749-0928A-0637

...
14
Cable Tie MTD-725-0157

...
15
Rear Catcher Frame MTD-764-0310A-0637

...
16
Control Cable 39" Models (440, 442,450,452) MTD-946-0550

...
xx
Control Cable Models (446, 448, 456, 458) MTD-946-0553

...
17
Throttle Wire 55" Lg. Models (440, 442, 450, 452) MTD-946-0671A

...
xx
Throttle Wire 55" Lg. Models (446, 448, 456, 458) MTD-946-0671A

...
18
Front Catcher Frame MTD-764-0311-0637

...
19
Grass Bag Models 440 thru 448 MTD-964-0309

...
20
Int. Cotter Pin 5/16" Dia. MTD-714-0104

...
21
Door Spring - R.H. MTD-732-0678

...
22
Door Spring (L.H.) MTD-932-0677

...
23
Rear Discharge Door MTD-782-7000

...
24
Cable Clamp (B&S) MTD-BS-690798

...
25
Throttle Body MTD-946-0875

...
26
Throttle Box Comp. (Incl. Ref. 7, 8,9, 10,25) MTD-811-0185

...
27
Engine MTD-NA

...
28
Hex Wash. Hd. Scr. #10-32 x 62" Lg. MTD-710-1237

...
29
Spark Plug Boot (Optional) MTD-735-0639

...
30
TRAILSHIELD WIRE MTD-732P0700

...
31
Rear Trailing Shield MTD-731-04998

...
32
Blade Adapter Kit (Keyed) MTD-753-0484

...
xx
Blade Adapter Kit (Splined) MTD-753-0485

...
33
Hex Bolt 3/8-24 x 1.5" Lg. (Used w/Keyed Adapter) MTD-710-1044

...
xx
Hex Bolt 7/16-20 x 1.5" Lg. (Used w/Splined Adapter) MTD-710-0757

...
34
Bell-Wash..39" I.D. (Used w/Keyed Adapter) MTD-736-0452

...
xx
Bell-Wash. .46" I.D. (Used w/Splined Adapter) MTD-936-0453

...
35
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1055

...
36
21" Blade MTD-942-0621

...
xx
21" Mulching Blade (Optional) MTD-942-0721

...
37
L-Wash. 3/8" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-736-0169

...
38
Hex Nut 3/8-24 Thd MTD-712-0241

...
39
Bell Washer .39" I.d. x 1.38" O.D. MTD-936-0356

...
40
Hex Nut 3/8-16 Thd For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-0798

...
44
Shld Bolt 5" Dia. x .357" MTD-738-0507B

...
45
Bell-Wash .38" I.D. x .88" O.D. MTD-736-0105

...
46
Axle Bolt MTD-738-0102

...
47
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1

...
48
Spring Lever MTD-732-0417A

...
50
Pivot Bar MTD-14765

...
xx
BAR-PIVOT (LH) *ON MTD-14766

...
51
FRONT BAFFLE MTD-782P5002B

...
52
Hex L-Wash Hd Scr 3/8-16 x 1" Lg. MTD-710-0654A

...
53
LH Rear Baffle MTD-782-5003A

...
54
Torx Mach AB-Tap Scr 1/4 x .62" Lg. MTD-710-1017

...
55
Hex L-Wash Hd AB-Tap Scr 1/4 x 62" Lg. MTD-710-0892

...
56
Handle Bracket Ass'y. (R.H.) MTD-682-0516-0637

...
57
Handle Bracket Ass'y. (L.H.) MTD-753-05994

...
58
21" R.D. Deck MTD-782-0020

...
59
Wheel Ass'y Comp MTD-634-0020

...
60
Hub Cap Gray (3-1/2" Dia.) (Optional) MTD-920-0249

...
61
Grass Bag Models 450 thru 458 only. MTD-764-0433

...
62
Hard Top Cover Models 450 thru 458 only. MTD-731-1322

...
63
Pan Hd Mach Scr 1/4-20 x 5" Lg. Models 450 thru 458 only. MTD-710-0286

...
64
Hex Nylon L-Nut 1/4-20 Thd. Models 450 thru 458 only. MTD-712-0324

...
65
Mounting Bracket Models 450 thru 458 only. MTD-782-9011-0637

...
66
Mulching Baffle Plug (Optional) MTD-782-5007C

...
67
Mulching Baffle - R.R. (Optional) MTD-782-5004B

...
68
Cable Mtg. Brkt. MTD-16309A

...
69
Hex Wash. AB-Tap Scr 5/16" x .75" Lg. MTD-710-0726

...
70
CLUTCH CONTROL CABLE MTD-946-0906

...
71
S.P. Bail Ass'y. MTD-747-0854-0637

...

...
73
Truss Mach Scr #10-24 x .38" Lg. MTD-710-0192
...
...
...
