MTD 12222S (1985) Self Propelled Mower

Model: 12222S (1985)

Save Part Not Listed?
product name

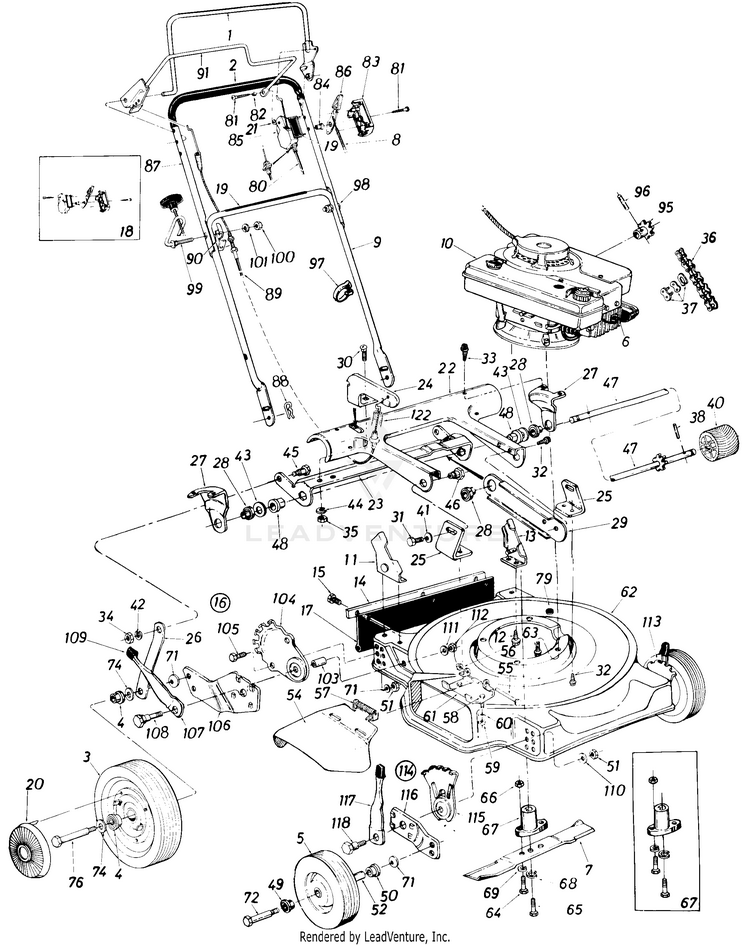

Rotary

...
...
1
BAIL (LH) MTD-731-0609
...
2
Grip MTD-718-0145
...
3
WHEEL ASSEMBLY W/TIRE-9X1.75 MTD-734-1204
...
4
BALL BEARING MTD-941-0180
...
5
FRONT WHEEL ASS'Y. 8 x 1.75 MTD-734-0657
...
6
INSULATOR-SPARK PLUG MTD-735-0639
...
7
22" BLADE MTD-942-0125B
...
8
Throttle Wire 55" Lg. MTD-946-0671A
...
9
Lower Handle MTD-749-0928A-0637
...
10
3-1/2 H.P. Engine Tec. TV590-43263 MTD-NA
...
11
BRACKET ASSY-HDLE MTD-12936
...
12
Hex Wash. Hd. B '-Tap Scr. 5/16-18 x .50" Lg. MTD-710-0603
...
13
BRACKET AS MTD-12935
...
14
RETAINER STRIP MTD-14846
...
15
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
16
ADJUSTER A MTD-14762
...
xx
L.H. Height Adj. Comp. (Not Shown) MTD-14763
...
17
FLAP ASSEMBLY MTD-731-1029
...
18
CONTROL HOUSING COMP. MTD-753-0360
...
19
Control Labels MTD-777-5195
...
20
Hub Cap MTD-731-0571
...
21
Flat Wash. .203" I.D. x .406" O.D. MTD-736-0931
...
22
COVER-PINI MTD-16319
...
23
CAM MTD-16332
...
24
Engagement Arm MTD-16318
...
25
BRACKET-PIVOT LH MTD-14759
...
26
LINK MTD-16005
...
27
BRACKET-AX MTD-14757
...
28
BALL BEARING MTD-941-0180
...
29
Brg. Support MTD-14877
...
30
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
31
Hex Bolt 3/8-16 x .50" Lg.* MTD-710-0168
...
32
Hex "B"-Tap Scr. 1/4" x .38" Lg. MTD-710-0352
...
33
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
34
HEX NUT 5/16-18 MTD-712-3010
...
35
HEX NUT 1/4-20 MTD-912-0287
...
36
#48 CHAIN 1/2 PITCH x 50 LINKS MTD-913-0311
...
37
#48 MASTER LINK (Service Only) MTD-713-0116
...
38
Roll Pin 3/16 x 1.25" MTD-915-0246
...
40
DRIVE PINION MTD-717-0807
...
41
Bell-Wash. .400" I.D. x .88" O.D. x .060 MTD-736-0105
...
42
Lock Wash. 5/16" I.D. MTD-936-0119
...
43
Fl-Wash. .531" I.D. x .930" O.D. x .050 MTD-736-0160
...
44
L-Wash. 1/4" I.D. MTD-936-0329
...
45
Shoulder Bolt MTD-938-0155
...
46
Shoulder Nut.825 x .165 Lg. MTD-938-0529
...
47
PINION SHAFT MTD-738-0530
...
48
BALL BEARING MTD-941-0484
...
49
FORTIFLEX BEARING MTD-741-0267
...
50
BALL BEARING MTD-941-0484
...
51
Hex Nut 3/8-16 Thd.* MTD-712-0798
...
52
Spacer MTD-750-0434
...
54
CHUTE DEFLECTOR MTD-931-1034B
...
55
PIVOT PIN MTD-711-0555
...
56
PUSH NUT MTD-726-0106
...
57
TORSION SPRING MTD-732-0253
...
58
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
59
HEX NUT 1/4-20 MTD-912-0287
...
60
L-Wash. 1/4" I.D. MTD-936-0329
...
61
ADAPTER PLATE MTD-11130
...
62
22" DECK ASS'Y MTD-14999
...
63
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
64
Hex Bolt 5/16-24 x 1.00" Lg. Grade 5 MTD-710-0888
...
65
Hex Bolt 3/8-24 x 2.25" Lg. (G rad e 5) MTD-710-0331
...
66
Hex Nut 5/16-24 Thd. MTD-912-3057
...
67
Blade Adapter Kit MTD-753-0348
...
68
L-Wash. 3/8 I.D. H.D. MTD-736-0217
...
69
Lock Wash. 5/16" I.D. MTD-936-0119
...
71
Bell-Wash. .400" I.D. x .88" O.D. MTD-736-0105
...
72
Hex Bolt 3/8-16 x 2" Lg. (Gr. 5) MTD-710-3144
...
74
Fl-Wash. .531" I.D. x .93" O.D. MTD-736-0192
...
76
SHOULDER SCREW .498 MTD-738-0144
...
79
PLUG MTD-731-0564
...
80
THROTTLE CABLE MTD-746-0476
...
81
Truss Mach. Self-Tap Scr. #12 x 1.50" Lg. MTD-710-0796
...
82
SPACER MTD-750-0649
...
83
CONTROL PANEL HALF MTD-731-0523
...
84
CONROL DISC PIN MTD-731-0524
...
85
CLUTCH PANEL HALF MTD-731-0526
...
86
Throttle Control Lever MTD-931-0972
...
87
UPPER HANDLE MTD-749-0536
...
88
Hairpin Cotter MTD-714-0104
...
89
Clutch Cable w/Spring MTD-746-0549
...
90
CABLE BRACKET MOUNTING MTD-16309A
...
91
HANDLE ASSEMBLY MTD-16391
...
95
SPROCKET-10T MTD-713-0308
...
96
SPRING PIN MTD-715-0247
...
97
CABLE TIE MTD-726-0192
...
98
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
99
OPE GUIDE BOLT MTD-710-0842
...
100
HEX NUT 5/16-18 MTD-712-3010
...
101
Lock Wash. 5/16" I.D. MTD-936-0119
...
103
SPACER MTD-950-0503
...
104
Index Plate MTD-14764C
...
105
Hex Bolt 3/8-16 x .75" Lg. MTD-710-0216
...
106
BAR-PIVOT (RH) *ON MTD-14765
...
xx
BAR-PIVOT (LH) *ON (Not Shown) MTD-14766
...
107
SPRING LEVER MTD-732-0417A
...
108
SHOULDER SCREW MTD-738-0528
...
109
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
110
BELL WASHER MTD-936-0356
...
111
Bell-Wash. .336" I.D. x .860 O.D. MTD-736-0242
...
112
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
113
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
114
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
115
Height Adjustment Plate MTD-787-01290A
...
116
Pivot Bar MTD-15262B
...
117
Front Spring Lever MTD-94832
...
118
Shoulder Bolt .50" Dia. MTD-738-0507B
...
122
Compression Spring MTD-932-0306A
...
xx
Hardware Pack MTD-8222-400-5
