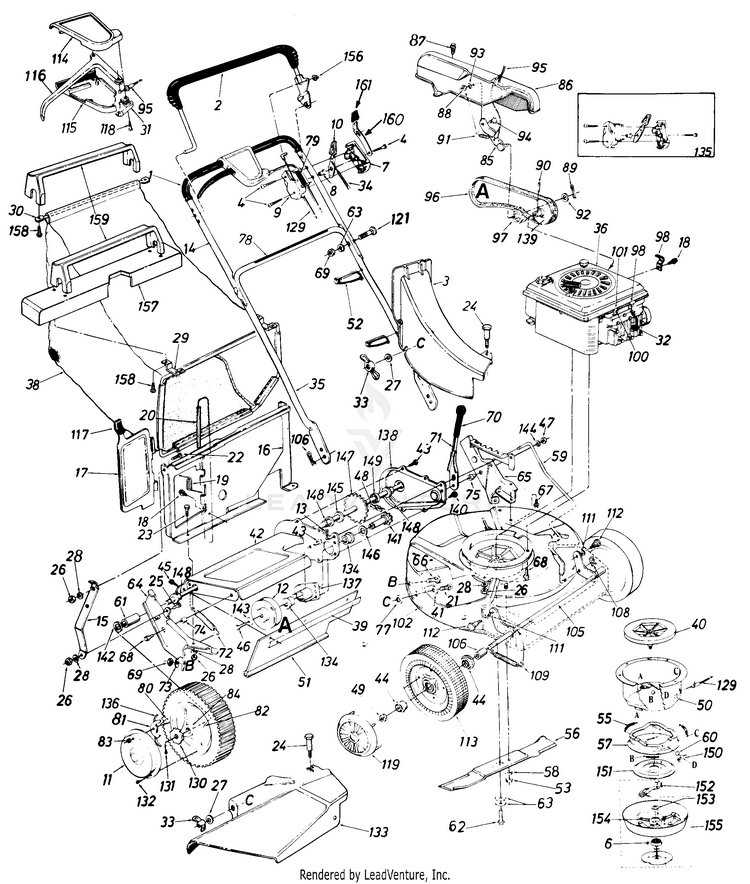

MTD 12214C (1986) Self Propelled Mower

Model: 12214C (1986)

Save Part Not Listed?
product name

Rotary

...
...
xx
Grip MTD-718-0145
...
2
BAIL (LH) MTD-731-0609
...
3
CHUTE ASSY-TOP DISCH MTD-731-0733
...
4
Truss Mach. Scr. #12 x 1.50" Lg. MTD-710-0796
...
6
BALL BEARING MTD-941-0600
...
7
PANEL MTD-731-0817
...
8
CONROL DISC PIN MTD-731-0524
...
9
CIUTCH PANEL HALF MTD-731-0816
...
10
Throttle Control Lever MTD-931-0972
...
11
HUB CAP (Rear) MTD-10647
...
12
1/2 V-PULLEY MTD-756-0459
...
13
Cotter Pin 3/32" Dia. x .75" MTD-714-0507
...
14
UPPER HANDLE MTD-749-0438D-0637
...
15
BRACKET-PANEL SUP MTD-16129A-0637
...
16
PANEL ASSY-CATCHER MTD-16140
...
17
Top Door MTD-16145
...
18
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
19
Torsion Spring MTD-732-0483A
...
20
ROD MTD-747-0514
...
21
Carriaqe Bolt 1/4-20 x .62" MTD-710-0134
...
22
Truss Mach. Scr. 1/4-20 x 1/2" Lg. MTD-710-0286
...
23
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
24
Shoulder Bolt .312 Dia. x .18 Lg. Special MTD-738-0704
...
25
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
26
HEX NUT 1/4-20 MTD-912-0287
...
27
Fl-Wash. .280" I.D. x .620" MTD-736-0463
...
28
L-Wash. 1/4" I.D. MTD-936-0329
...
29
FRONT CATCHER FRAME MTD-747-0525
...
30
SUPPORT-UPR MTD-747-0526
...
31
CABLE MOUNTING CAP MTD-731-0619
...
32
INSULATOR-SPARK PLUG MTD-735-0639
...
33
WING NUT 1/4-20 MTD-712-0109
...
34
Throttle Cable (213) MTD-946-1115
...
xx
Throttle Wire-58" Lg. (214) MTD-946-0674A
...
35
Lower Handle MTD-749-0907B
...
36
Engine MTD-NA
...
xx
BLADE BRAKE CLUTCH ASS'Y. COMP. MTD-717-0485
...
38
GRASSBAG MTD-764-0215
...
39
STRIP-RETA MTD-14835
...
40
ADAPTER-FAN MTD-719-0256
...
41
Fl-Wash. .344" I.D. x .62" MTD-736-0204
...
42
Axle ASSEMBLY- MTD-16121
...
43
Hex B-Tap Scr. 1/4" x .38" Lg. MTD-710-0352
...
44
BALL BEARING MTD-941-0180
...
45
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
46
Hex Wash. TT-Tap Scr. 1/4-20 MTD-710-0875
...
47
HEX LOCK NUT 3/8-2 MTD-912-0296
...
48
#48 CHAIN 1/2 PI MTD-713-0353
...
49
Hex L-Nut 1/2-20 Thd. MTD-712-0346
...
50
HOUSING-CL MTD-14307
...
51
Rear Flap 3.75" x 17.30" Lg. MTD-731-0671
...
52
Cable Tie MTD-725-0157
...
53
Hex Nut 3/8-24 Thd. MTD-712-0241
...
55
EXTENSION SPRING MTD-732-0397
...
56
21" BLADE MTD-742-0290
...
57
Brake Cup Cone MTD-14305
...
58
L-Wash. 3/8" I.D. MTD-736-0169
...
59
ROD-HGT ADJ MTD-747-0496
...
60
STEEL BALL MTD-741-0326
...
61
SPACER MTD-748-0191
...
62
Hex Cent. L-Bolt 3/8-24 x 2.0" Lg. (Grade 8) MTD-710-0818
...
63
Bell-Wash. 3/8" I.D. MTD-736-0105
...
64
BRACKET ASSEMBLY (RH) MTD-16136
...
65
BRACKET ASSEMBLY (LH) MTD-16137
...
66
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
67
Hex Wash. Hd. B-Tap Scr. 5/16-18 MTD-710-0603
...
68
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
69
HEX NUT 5/16-18 MTD-712-3010
...
70
GRIP MTD-720-0143
...
71
HEIGHT ADJUSTMENT LEVER MTD-732-0473B
...
72
EXTENSION SPRING MTD-732-0481
...
73
Bell-Wash. .345" I.D. x .88" MTD-736-0242
...
74
Spacer .385" I.D. x .502" O.D. x .270" Lg. MTD-750-0526
...
75
SHOULDER SPACER MTD-750-0624
...
77
Bolt Retainer 1/4 x .50" O.D. MTD-726-0233
...
78
Instruction Label MTD-777-5775
...
79
Control Label MTD-777-5772
...
80
BOLT, SHOULDER, 1/4-20 x 2.65 LG MTD-738-0137
...
81
PAWL - (LH) MTD-948-0188B
...
82
WHEEL ASSEMBLY W/TIRE-T-TREAD MTD-734-1412
...
83
Hex Ins. L-Nut 1/4-20 Thd. MTD-712-0324
...
84
BALL BEARING MTD-941-0180
...
85
BRACKET AS MTD-16134
...
86
Belt Cover MTD-16146
...
87
Hex Wash. S-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
88
HEX NUT 1/4-20 MTD-912-0287
...
89
Cotter Pin 1/8" Dia. x 1.00" Lg. MTD-714-0115
...
90
SPRING PIN MTD-715-0247
...
91
Extension Spring .33 OD x 1.12 Lg. MTD-732-0357A
...
92
Fl-Wash. .531" I.D. x .930" O.D. x .050 MTD-736-0160
...
93
L-Wash. 1/4" I.D. MTD-936-0329
...
94
SHOULDER SCREW MTD-938-0255
...
95
CABLE-53" LONG MTD-746-0466
...
96
V-BELT MTD-754-0104
...
97
FLAT IDLER PULLEY MTD-756-0360
...
98
CABLE CLAMP (214) MTD-12894
...
100
Hex Wash. Hd. Self-Tap Scr. (214) MTD-710-0651
...
101
CASING CLAMP (214) MTD-751-0442
...
102
DECK ASSEMBLY-TOP MTD-16126
...
105
Front Axle Ass'y. MTD-10662
...
106
SLEEVE MTD-711-0313
...
108
Intern. Cotter Pin 5/16" Dia. MTD-714-0104
...
109
EXTENSION SPRING MTD-732-0482
...
111
LOCK WASHER 3/8 X.56 OD MTD-736-0221
...
112
SHOULDER SCREW .623 X MTD-738-0615
...
113
Front-Wheel Ass'y. Comp. 7 x 1 .75 MTD-734-1264
...
114
HALF COVER MTD-731-0617A
...
115
Control Cover Half-Lower MTD-753-0833
...
116
Drive Control MTD-731-0620A
...
117
CUP-DOOR MTD-720-0208
...
118
Fl-"C"-Sunk Hd. Tap Scr. #10 x .75" Lg. MTD-710-0841
...
119
Hub Cap MTD-731-0571
...
121
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
xx
PUSH NUT MTD-726-0111
...
xx
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
xx
SPRING-LOCKOUT MTD-732-0401
...
xx
LOCKING PIN MTD-731-0607
...
129
CLUTCH CABLE (Incl. Ref. 122) MTD-946-0405
...
130
RACHET-WHEEL MTD-748-0187
...
131
Cotter Pin 1/8" Dia. x 1.00" Lg. MTD-714-0115
...
132
SCREW #12-14 x .500 MTD-710-0748
...
133
DEFLECTOR ASSY MTD-16559
...
134
BUSHING-FL MTD-748-0249
...
135
KIT-THROTTLE MTD-753-0361
...
136
Spring - Nylon MTD-10622B
...
137
Bearing Hub Flange Ass'y. MTD-16118
...
138
Chain Cover MTD-16119
...
139
ENGINE PULLEY-1/2 V MTD-756-0460
...
140
Hex Wash. S-Tap Scr. 1/4-20 x.50" Lg. MTD-710-0599
...
141
SHAFT ASSEMBLY-SPROCKET MTD-713-0355
...
142
Fl-Wash. .531" I.D. x .93" O.D. MTD-736-0160
...
143
SPRING WASHER BELL MTD-736-0270
...
144
Fl-Wash. .385" I.D. x .87" O.D. MTD-736-0300
...
145
Fl-Wash. .51" I.D. x 1.0" O.D. MTD-736-0326
...
146
FLAT WASHER MTD-936-0349
...
147
SHAFT ASSEMBLY-REAR MTD-738-0614
...
148
Flge Bearing .506 ID x .590 Lg MTD-741-0324A
...
149
Spacer .510" I.D. x 1.00" O.D. x .210" Lg. MTD-748-0301
...
150
BALL-BLOCK MTD-731-0520
...
151
CLUTCH CONE MTD-14304
...
152
Hex Tap L-Scr. 1/4-20 x .75" MTD-710-0875
...
153
FLAT WASHER .687 x 1.060 x .032 MTD-736-0333
...
154
SPRING MTD-732-0396
...
155
CLUTCH BLADE HOUSING ASS'Y. MTD-14300
...
156
PUSH NUT MTD-726-0111
...
157
FRAME-LOWER MTD-731-0807
...
158
Truss Mach. Tap Scr. 1" Lg. MTD-710-0969
...
159
BAG HANDLE BLACK MTD-731-0801
...
xx
TUBING-PLASTIC 25I (Not Shown) MTD-731-0759
...
xx
Hardware Pack (213) MTD-8213-400-6
...
xx
Hardware Pack (214) MTD-8214-400-6
...
160
SPRING-LOCKOUT MTD-732-0401
...
161
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
