MTD 122-488R000 (1992) Self Propelled Mower

Model: 122-488R000 (1992)

Save
 Part Not Listed?Part Not Listed?
product name

Deck And Front Wheel Assembly

...
...
1
Torx Mach. AB-Tap Scr. 1/4 x .62" Lg. MTD-710-1017
...
2
Height Adjustment Support MTD-721-0216
...
3
Height Adjustment Plate MTD-17323
...
4
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329
...
6
Height Adj. Connecting Rod MTD-747-0699
...
7
Cotter Pin 3/32" Dia. MTD-714-0507
...
8
Front Axle Ass'y. MTD-17022-0637
...
9
Hex L-Wash. Hd. AB-Tap Scr. 1/4 x .38" Lg. MTD-710-0352
...
10
Extension Spring 2.39" Lg. MTD-732-0589
...
11
Bell-Wash..380" I.D. x .88" MTD-736-0105
...
12
Flange Ball Bearing 1/2" I.D. MTD-NA
...
13
Hub Cap (See Below) MTD-NA
...
xx
Hub Cap MTD-731-0981C
...
xx
Hub Cap (Beige) MTD-731-0982C
...
xx
Hub Cap Gray (3-1/2" Dia.) MTD-920-0249
...
xx
Black (1-1/2" Dia.) MTD-720-0251
...
xx
Red (1-3/8" Dia.) MTD-731-0342
...
14
Wheel Ass'y. Comp.- Front MTD-NA
...
xx
8" x 1.75" Bar Tread Not Required MTD-634-0020
...
xx
8" x 1.75" "T" Tread MTD-734-1268
...
xx
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826
...
xx
Wheels - Front MTD-753-08093
...
xx
8" x 2" "S" Wave MTD-734-1517B
...
xx
Fl-Ball Brg. 1/2" I.D. MTD-941-0180
...
xx
Fl-Ball Brg. 1/2" I.D. MTD-941-0180
...
xx
Fl-Ball Brg. 1/2" I.D. MTD-941-0180
...
15
Shld. Bolt .498" Dia. x 1.45" MTD-738-0102
...
16
Wave Wash..53" I.D. x .78" MTD-736-0232

Handle And Engine Assembly

...
...
1
Std. Control Handle MTD-747-0748
...
2
Hex Lock Nut 1/4-20 Thd. MTD-712-0324
...
3
FOAM GRIP - 9" (Optional) MTD-720-0294A
...
4
Spr. Wash..66" I.D. MTD-936-0501
...
5
Hex L-Nut 1/4-20 Thd. MTD-712-0291
...
6
Throttle Cable - 55" (B&S) MTD-946-0671A
...
6
Throttle Cable - 45" (Tecumseh) MTD-946-1115
...
7
Throttle Box Comp. (Incl. Ref. 3, 4, 5, 24, 25) MTD-811-0185
...
8
Throttle Lever MTD-946-0876
...
9
Throttle Body MTD-946-0875
...
10
Oval C-Sunk Scr. MTD-710-0605
...
11
Control Cable - 40.5" (B&S) MTD-946-0554
...
11
Control Cable - 55" (Tecumseh) MTD-946-0555
...
12
Upper Handle MTD-749-0439E-0637
...
13
Rope Guide MTD-710-1205
...
14
Bell-Wash. 7/8" I.D. (Used w/Keyed Adapter) MTD-736-0473
...
14
Bell-Wash. 1.01" I.D. (Used w/Splined Adapter) No Longer Available MTD-736-0450
...
15
Curved Carriage Bolt 5/16-18 x 1.38" Lg. No Longer Available MTD-710-0671
...
16
Bowed Washer MTD-936-0286
...
17
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1055
...
18
Cable Tie MTD-725-0157
...
19
L-Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119
...
20
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010
...
21
Lower Handle MTD-749-0907B
...
22
Hub Cap (Optional) MTD-10647
...
23
Pan Hd. Tap Scr. #12 x .50" Lg. (Used w/Ref. #22) MTD-710-0748
...
24
SPRING WASHER BELL MTD-736-0270
...
25
Bag Handle For models 460R thru 468R Only. MTD-731-0801
...
26
Rear Catcher Frame For models 460R thru 468R Only. MTD-749-0764A-0637
...
27
Front Catcher Frame For models 460R thru 468R Only. MTD-764-0412-0637
...
28
Spark Plug Boot (Optional) No Longer Available MTD-735-0639
...
30
Control Cover Half - Upper MTD-753-0833
...
31
Control Cover Half - Lower MTD-753-0833
...
32
Control Lever MTD-731-0620A
...
33
Drive Cable - 51" Lg. MTD-946-0711B
...
34
Flat C-Sunk Hd. Tap Scr. #10 x .75" Lg. MTD-710-0841
...
35
Cable Mtg. Cap MTD-753-0833
...
36
Hardtop Bag Cover For models 470R thru 478R Only. MTD-631-0003
...
37
Hardtop Handle For models 470R thru 478R Only. MTD-631-0003
...
38
Grass Bag For models 470R thru 478R Only. MTD-964-0252
...
39
Truss Mach. Scr. 1/4-20 x 1.0" Lg. MTD-710-0166A
...
40
Hex Nut 3/8-24 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-0241
...
41
Fl-Wash. .280" I.D. x .620" O.D. For models 470R thru 478R Only. MTD-736-0463
...
42
Hex Nut 1/4-20 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-0287
...
43
Front Catcher Frame For models 470R thru 478R Only. MTD-764-0411-0637
...
44
Rear Catcher Frame No Longer Available For models 470R thru 478R Only. MTD-749-0736A
...
45
Chute Deflector MTD-931-0859A
...
46
Deflector Plug MTD-731-0970B
...
47
Seal - Extrusion MTD-731-0858
...
48
Grip MTD-720-0223
...
49
Spring Lever MTD-732-0580
...
50
Torsion Spring - R.H. MTD-732-0578B
...
51
Torsion Spring - L.H. No Longer Available MTD-732-0577A
...
52
Spacer 255" I.D. MTD-750-0566A
...
53
Handle Brkt. Ass'y.- L.H. No Longer Available MTD-12297A
...
54
Hinge Pin 17.75" Lg. MTD-747-0698B
...
55
Cap Speed Nut MTD-926-0106
...
56
SHOULDER PIN 3/8-24X1.43 MTD-711-0805
...
57
L-Wash. 3/8" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-736-0169
...
58
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
59
Hex L-Nut 3/8-24 Thd. MTD-912-0296
...
60
Bell-Wash..38" I.D. x .88" MTD-736-0105
...
61
Hex Wash. Hd. Tap Scr. 1/4-20 x 1.5" Lg. MTD-710-0778
...
62
Hex L-Wash. Hd. Scr. 3/8-16 x 1" Lg. MTD-710-0654A
...
63
21" Deck Ass'y. No Longer Available MTD-16997
...
64
Handle Brkt. Ass'y.- R.H. MTD-12296B-0637
...
65
Hex L-Wash. Hd. AB-Tap Scr. 1/4 x .62" Lg. MTD-910-0892
...
66
Hex Wash. Hd. Tap Scr. 3/8-16 x .75" Lg. MTD-910-1006
...
67
Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
68
Spacer 383" I.D. MTD-950-0736
...
69
Crankshaft Spacer (Keyed) MTD-748-0358
...
69
Crankshaft Spacer (Splined) No Longer Available MTD-748-0332
...
70
Pulley Half - Lower (Keyed) No Longer Available MTD-756-0961
...
71
Pulley Half - Upper (Keyed) MTD-756-0962
...
71
Pulley Half - 2 Req'd. (Used w/Splined Adapter) MTD-956-0502
...
72
21" Blade MTD-942-0621
...
73
Bell-Wash. .396" I.D. x 1.14" O.D. (Used w/Keyed Adapter) MTD-736-0452
...
73
Bell-Wash..46" I.D. (Used w/Splined Adapter) MTD-936-0453
...
74
Hex Bolt 3/8-24 x 1.5" Lg. (Used w/Keyed Adapter) MTD-710-1044
...
74
Hex Bolt 7/16-20 x 1.5" Lg. (Used w/Splined Adapter) MTD-710-0757
...
75
Blade Adapter Kit (Keyed) MTD-753-0484
...
75
Blade Adapter Kit (Splined) MTD-753-0485
...
76
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329
...
77
Hex Jam Nut 1/4-20 Thd. MTD-912-0298
...
78
Hex Bolt 1/4-20 x .85" Lg. MTD-710-3015
...
79
Rear Belt Baffle No Longer Available MTD-17013
...
80
CARRIAGE BOLT 1/4-20X.50" For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-05177
...
81
Rear Panel Baffle No Longer Available MTD-17006
...
82
Corner Plug No Longer Available MTD-731-0931
...
83
Torx Mach. AB-Tap Scr. 1/4 x 62" Lg MTD-710-1017
...
84
Hex B-Tap Scr. 1/4 x .38" Lg. MTD-710-0352
...
85
Rear Flap MTD-731-0669
...
86
Rear Chute Baffle MTD-17008-0637
...
87
Retaining Strip No Longer Available MTD-14847
...
88
Hub Cap (Optional) MTD-NA
...
88
Gray (5-1/2" Dia) MTD-731-0981C
...
88
Beige (5-1/2" Dia.) MTD-731-0982C
...
88
Gray (3-1/2" Dia.) MTD-920-0249
...
88
Black (1-1/2" Dia.) No Longer Available MTD-720-0251
...
88
Red (1-3/8" Dia.) No Longer Available MTD-731-0342
...
89
Spring - Nylon MTD-10622B
...
90
Pawl .345" I.D. MTD-948-0188B
...
91
Weld Top L-Nut 1/4-20 Thd. (Used w/Ref. #88) MTD-712-0414
...
92
Hex Ins. L-Nut 1/4-20 Thd. (Used w/Ref. #22) MTD-712-0324
...
93
Cotter Pin 1/8" Dia. x 1" Lg. MTD-714-0115
...
94
Ratchet Wheel 1.62" O.D. MTD-948-0318
...
95
Shld. Bolt .342" Dia. x .268" No Longer Available MTD-738-0137
...
96
Wheel Ass'y. Comp.- Rear MTD-NA
...
96
8" x 1.75" Bar Tread Not Required MTD-634-0020
...
96
8" x 1.75" "T" Tread No Longer Available MTD-734-1412
...
96
8" x 2" "S" Wave (Silver) No Longer Available MTD-734-1412
...
96
Front/Rear Wheel 8" x 2" "S" Wave No Longer Available MTD-734-1826
...
96
8" x 2" "S" Wave (Silver) MTD-734-1826
...
97
Bearing 1/2" I.D. MTD-NA
...
97
1/2" I.D. Ball Brg. (2 Req'd.) MTD-941-0180
...
97
1/2" I.D. Sleeve Brg. No Longer Available MTD-741-0486B
...
97
1/2" I.D. Sleeve Brg. No Longer Available MTD-741-0486B
...
98
Shld. Spacer .50" Dia. MTD-750-0624
...
99
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
100
SHOULDER PIN 3/8-24X1.43 MTD-711-0805
...
101
Pawl Plate MTD-16855
...
102
Chain Cover Ass'y. No Longer Available MTD-170534
...
103
Hex Flange Brg..506" I.D. MTD-741-0324A
...
104
Fl-Wash..531" I.D. x .93" MTD-936-0160
...
105
Rear Axle Ass'y. MTD-938-0719A
...
106
Hex Flange Bearing MTD-741-0522
...
107
Chain Axle Ass'. No Longer Available MTD-17009
...
108
Internal L-Wash. 1/4" I.D. MTD-736-0498
...
109
Spacer 513" I.D. MTD-748-0190
...
110
Extension Spring 3.8" Lg. MTD-932-0481
...
111
Spacer.325" I.D. MTD-950-0589
...
112
V-Belt MTD-954-0346
...
113
Grass Catcher Locking Knob MTD-920-0224
...
114
Hairpin Clip MTD-714-0104
...
115
#48 Chain .50" Pitch x 30 Links MTD-913-0353
...
116
Transmission Comp. MTD-917-0417B
...
117
Hex L-Wash. H.D. AB-Tap Scr. 1/4 x .62" Lg. For models 470R thru 478R Only. MTD-910-0892
...
118
Hex AB-Tap Scr. #12 x 1.25" Lg. For models 460R thru 468R Only. MTD-710-1025
...
119
Grass Bag No Longer Available For models 460R thru 468R Only. MTD-764-0246
...
120
Cable Clamp (B&S) MTD-BS-690798
...
121
Hex Self-Tap Scr. #10-32 x 62" Lg. (B&S) MTD-710-1237

Idler Bracket Assembly

...
...
1
Hex Bolt 1/4-20 x 1.25" Lg. w/Patch MTD-710-1062
...
2
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329
...
3
Upper Hsg. Half MTD-717-0418A
...
4
#48 Sprocket Tooth x 1/2 Pitch MTD-713-0400
...
5
FLAT WASHER MTD-936-0336
...
6
Hex Flange Brg..631" I.D. MTD-741-0413
...
7
Hex Bearing Cup MTD-16500A-0637
...
8
Thrust Wash..382" I.D. x .70" O.D. MTD-736-0314
...
9
Thrust Bearing .315" I.D. x .812" O.D, MTD-741-0479
...
11
11 Tooth Helical Gear MTD-917-1216
...
12
Flange Bearing MTD-748-0208A
...
13
Oil Seal MTD-721-0212
...
15
Fl-Pulley 5.06" O.D. Not Part of Transmission Complete MTD-756-0330A
...
16
SPRING WASHER BELL Not Part of Transmission Complete MTD-736-0270
...
17
Jam Nut, 1/4-28, LH Not Part of Transmission Complete MTD-712-04326
...
18
Shld. Spacer .375" Dia. x .170" MTD-738-0440
...
19
Fl-Wash..390" I.D. x 1.0" Not Part of Transmission Complete MTD-736-0344
...
20
Shld. Bolt .375" Dia. x .40" Not Part of Transmission Complete MTD-738-0826
...
21
Fl-ldler Plastic 1.50" Dia. Not Part of Transmission Complete MTD-956-0558
...
22
Needle Brg..375" x .31 Not Part of Transmission Complete MTD-741-0556
...
23
SPRING WASHER BELL Not Part of Transmission Complete MTD-736-0270
...
24
Idler Brk't. Ass'y. Not Part of Transmission Complete MTD-17052A
...
25
Hex Patch L-Nut 1/4-28 Thd. Not Part of Transmission Complete MTD-712-0138
...
26
Extension Spring 1.12" Lg. Not Part of Transmission Complete MTD-732-0357A
...
27
Lower Hsg. Half MTD-717-0419A
...
28
Flange Bearing .566 ID MTD-941-0415
...
29
33 Tooth Helical Gear MTD-717-0422
...
30
Flange Bearing .629 Dia. MTD-741-0414
...
31
Oil Seal .625 Dia. MTD-721-0213
...
32
Gear Sprocket Shaft MTD-738-0607
...
33
L-Wash. #10 I.D. MTD-736-0722
...
34
Hex Wash. Hd. Self-Tap Scr. MTD-710-0651
...
35
Hex Washer .26" x .88" Not Part of Transmission Complete MTD-736-0410
...
xx
Transmission Comp. MTD-714-0417B

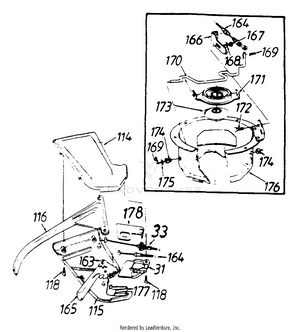

Movable Pulley Half Assembly

...
...
31
Upper Control Housing MTD-753-0717
...
33
UNKNOWN MTD-NA
...
114
Upper Control Housing MTD-753-0717
...
115
Upper Control Housing MTD-753-0717
...
116
Drive Control MTD-731-0620A
...
118
Fl-"C"-Sunk Hd. Tap Scr. #10 x .75" Lg. MTD-710-0841
...
?162
JAM LOCK NUT MTD-712-0266A
...
163
Gear Insert MTD-913-0397
...
164
Spd. Control Cable - 50" Lg. MTD-746-0706
...
165
6-Spd. Shift Lever MTD-731-0924
...
166
Adjustable Cable Bracket MTD-17070-0637
...
167
SPRING WASHER BELL MTD-736-0270
...
168
Hex Cent. L-Nut 1/4-20 Thd. MTD-712-0291
...
169
Cot-Pin 3/32" Dia. x .75" Lg. MTD-714-0507
...
170
Shift Rod MTD-747-0684
...
171
Movable Pulley Half Ass'y. MTD-741-0500
...
172
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
173
Spined Pulley Half MTD-756-0503
...
174
Flanged Bushing MTD-931-1137
...
175
Fl-Wash..328" I.D. x .68" O.D. MTD-736-0278
...
176
Cable Mtg. Brkt. Ass'y. MTD-17073
...
177
Shift Lever Spring MTD-732-0627A
...
178
6-Speed Rack Cable Brkt. MTD-16864
...
...
...
Processing
