MTD 120874R (1990) Self Propelled Mower

Model: 120874R (1990)

Save
 Part Not Listed?Part Not Listed?
product name

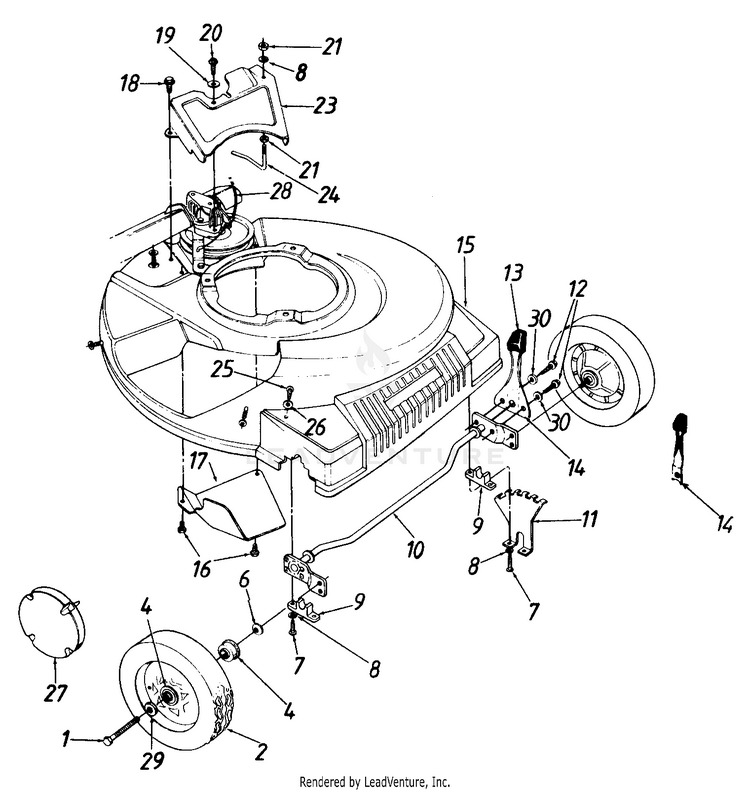

21"

...
...
1
Front Axle Bolt MTD-738-0102
...
2
Wheels with Ball Brgs.(Beige) (Brg. Part No. 741-0484) MTD-734-1517B
...
4
Fl-Ball Brg. 1/2" I.D. MTD-941-0180
...
6
Bell-Wash. .380" I.D. x .88 MTD-736-0105
...
7
Screw, Hex MTD-710-0788
...
8
L-Wash. 1/4" I.D. MTD-936-0329
...
9
Block Bushing (Used with 1 hole lever only) MTD-741-0492A
...
xx
Block Bushing (Used with 3 hole lever only) MTD-741-0492A
...
10
Axle Ass'y. (Used with 1 hole lever only) MTD-17060
...
xx
Axle Ass'y. (Used with 3 hole lever only) MTD-17733
...
11
Height Adj. Bracket MTD-17059
...
12
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. (Used with 1 hole lever only) MTD-710-0599
...
xx
Hex TT-Tap Scr. 1/4-20 x .38" (Used with 3 hole lever only) MTD-710-0653
...
13
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
14
Spring Lever (With 1 hole) MTD-732-0553
...
xx
Spring Lever (With 3 holes) MTD-732-0639
...
15
Plastic Front End MTD-731-0865
...
16
Hex B-Tap Scr. 1/4" x .38" MTD-710-0352
...
17
Belt Cover MTD-17064
...
18
Hex Wash. Hd. TT-Scr. 1/4-20 MTD-710-0599
...
19
SPRING WASHER BELL MTD-736-0270
...
20
Hex Wash. Hd. B-Tap Scr. 1/4 x .62" (Spec.) MTD-710-0896
...
21
Hex Nut 1/4-20 Thd. MTD-912-0287
...
23
Transmission Belt Guard MTD-17058A-0637
...
24
S.P. Belt Guard MTD-747-0549
...
25
HL Screw, 5/16-14 x .750 MTD-710-1242
...
26
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
27
Hub Cap (Beige) MTD-731-0982C
...
28
S.P. Cable MTD-946-0710A
...
29
Wave Wash. .53" I.D. x .78" O.D. MTD-736-0232
...
30
External L-Wash. 1/4" I.D. (Used with 3 hole lever only) MTD-736-0222

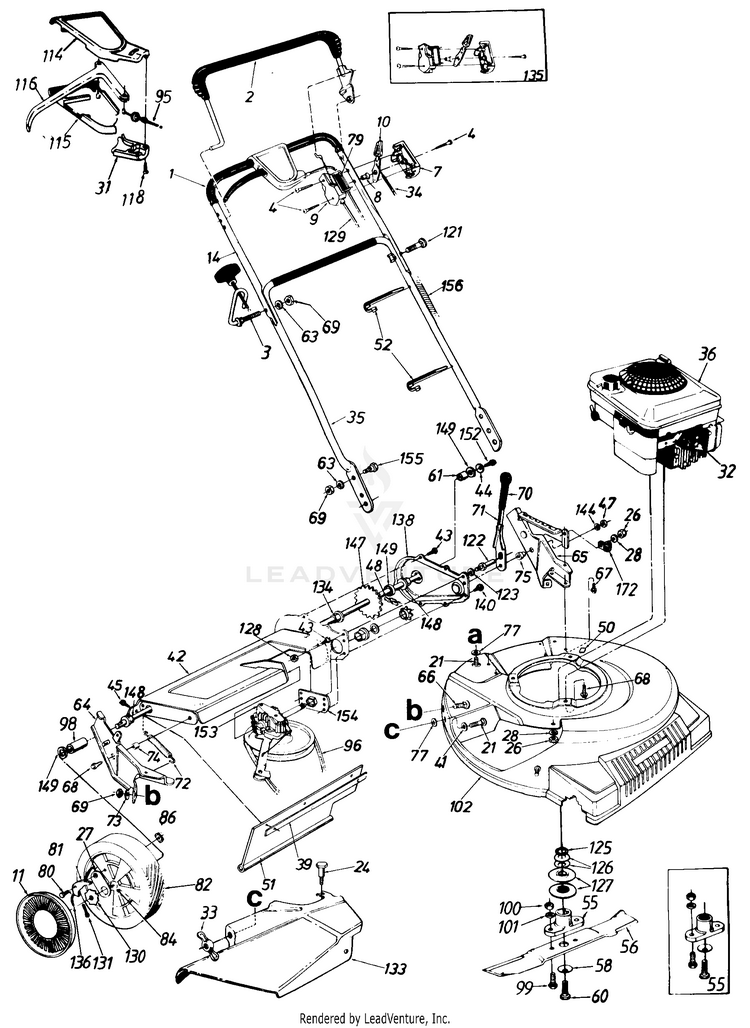

21"

...
...
1
FOAM GRIP - 9" MTD-720-0294A
...
2
Control Handle Ass'y. L.H. MTD-731-0609
...
3
Rope Guide Bolt MTD-710-0842B
...
4
Truss Mach. Scr. #12 x 1.50" Lg. MTD-710-0796
...
7
Control Panel Half MTD-731-0817A
...
8
Control Disc Pin MTD-731-0524
...
9
Clutch Panel Half MTD-731-0816A
...
10
Throttle Control Lever MTD-931-0972
...
11
Hub Cap (Beige) MTD-731-0982C
...
14
Upper Handle MTD-749-0439E-0637
...
21
Carriage Bolt 1/4-20 x .62" MTD-710-0134
...
24
Shoulder Bolt Special MTD-738-0704
...
26
Hex Nut 1/4-20 Thd. MTD-912-0287
...
27
Pawl Plate MTD-16855
...
28
L-Wash. 1/4" I.D. MTD-936-0329
...
31
Control Cover Half-Lower MTD-753-0833
...
32
Spark Plug Insulator MTD-735-0639
...
33
Wing Nut MTD-712-0397A
...
34
Throttle Wire-58" Lg. MTD-946-0674A
...
35
Lower Handle MTD-749-0907B
...
36
Engine MTD-NA
...
39
Retaining Strip MTD-14835
...
41
Fl-Wash. .344" I.D. x .62" MTD-736-0204
...
42
Chain Axle Ass'y. MTD-17055B
...
43
Hex B-Tap Scr. 1/4" x .38" MTD-710-0352
...
44
SPRING WASHER BELL MTD-736-0270
...
45
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
47
Hex L-Nut 3/8-24 Thd. MTD-912-0296
...
48
#48 Chain .500" Pitch x 30 Links MTD-713-0353
...
50
Plug MTD-731-0564
...
51
Rear Flap 3.75" x 17.30" Lg. MTD-731-0672A
...
52
Cable Tie MTD-725-0157
...
55
Blade Adapter Kit MTD-753-0485
...
56
21" Blade MTD-942-0621
...
58
Bell-Wash. .46" I.D. MTD-936-0453
...
60
Hex Bolt 7/16-20 x 1.5" MTD-710-0757
...
61
Spacer .513" I.D. MTD-748-0190
...
63
Lock Wash. 5/16" I.D. MTD-936-0119
...
64
R.H. Handle Wheel Brkt. Ass'y. MTD-16136A
...
65
L.H. Handle Wheel Brkt. Ass'y. MTD-16137B
...
66
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
67
Hex B-Tap Scr. 5/16-18 MTD-710-0603
...
68
Hex TT-Tap Scr. 3/8-16 MTD-710-0654A
...
69
HEX NUT 5/16-18 MTD-712-3010
...
70
Grip MTD-720-0223
...
71
Height Adj. Lever MTD-732-0606
...
72
Extension Spring 3.80" Lg. MTD-732-0481
...
73
Bell-Wash. 5/16" I.D. MTD-736-0242
...
74
Spacer .383" I.D. x .503" O.D. MTD-950-0736
...
75
Shld. Spacer .5" Dia. MTD-750-0624
...
77
Bolt Retainer 1/4 x .50" O.D. MTD-726-0233
...
79
Control Label MTD-777-5812
...
80
Shld. Scr. .342" Dia. x .268 MTD-738-0137
...
81
Pawl LH MTD-948-0188B
...
82
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826
...
84
Sleeve Bearing 1/2" I.D. MTD-741-0486B
...
86
Flat Nut 1/4-20 Thd. MTD-712-0189
...
95
S.P. Cable MTD-946-0710A
...
96
V-Belt MTD-954-0343
...
98
Sleeve .526" I.D. MTD-711-0313
...
99
Hex Bolt 3/8-24 x 1.0" Lg. MTD-710-1055
...
100
Hex Nut 3/8-24 Thd. MTD-712-0241
...
101
L-Wash. 3/8" I.D. MTD-736-0169
...
102
21" Deck Ass'y. MTD-17051
...
114
Control Cover Half-Lower MTD-753-0833
...
115
Control Cover Half-Lower MTD-753-0833
...
116
Drive Control MTD-731-0620A
...
118
Fl-"C"-Sunk Hd. Tap Scr. #10 x .75" Lg. MTD-710-0841
...
121
Curved Carr. Bolt 5/16-18 x 1.38" Lg. MTD-710-0671
...
122
SHOULDER PIN 3/8-24X1.43 MTD-711-0805
...
123
L-Wash. 3/8" I.D. MTD-736-0169
...
125
Crankshaft Spacer MTD-748-0332
...
126
Bell-Wash. 1.01" I.D. MTD-736-0450
...
127
Serrated Pulley Half MTD-756-0502
...
128
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
129
Control Cable 46" MTD-746-0480A
...
130
Wheel Ratchet MTD-948-0318
...
131
Cotter Pin 1/8" Dia. x 1" MTD-714-0115
...
133
Side Chute Deflector Ass'y. MTD-731-0885
...
134
Hex Flange Bearing MTD-741-0522
...
135
Kit Control Housing Comp. MTD-753-0430
...
136
Spring Nylon MTD-10622B
...
138
Chain Cover MTD-17053A
...
140
Hex S-Tap Scr. 1/4-20 x .50" MTD-710-0599
...
144
Fl-Wash. .385" I.D. x .87" MTD-736-0300
...
147
Rear Shaft Ass'y. 21.94" Lg. MTD-738-0719A
...
148
Flge Bearing .506 ID x .590 Lg MTD-741-0324A
...
149
Fl-Wash. .531" I.D. x .930" MTD-736-0160
...
152
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
153
Transmission Comp. (See Breakdown) MTD-917-0417B
...
154
Hex Bearing Cup MTD-16500A-0637
...
155
Truss Mach. Scr. 5/16-18 x .75" Lg. MTD-710-0323
...
156
Plastic Tubing MTD-731-0759
...
172
Clamp MTD-726-0175

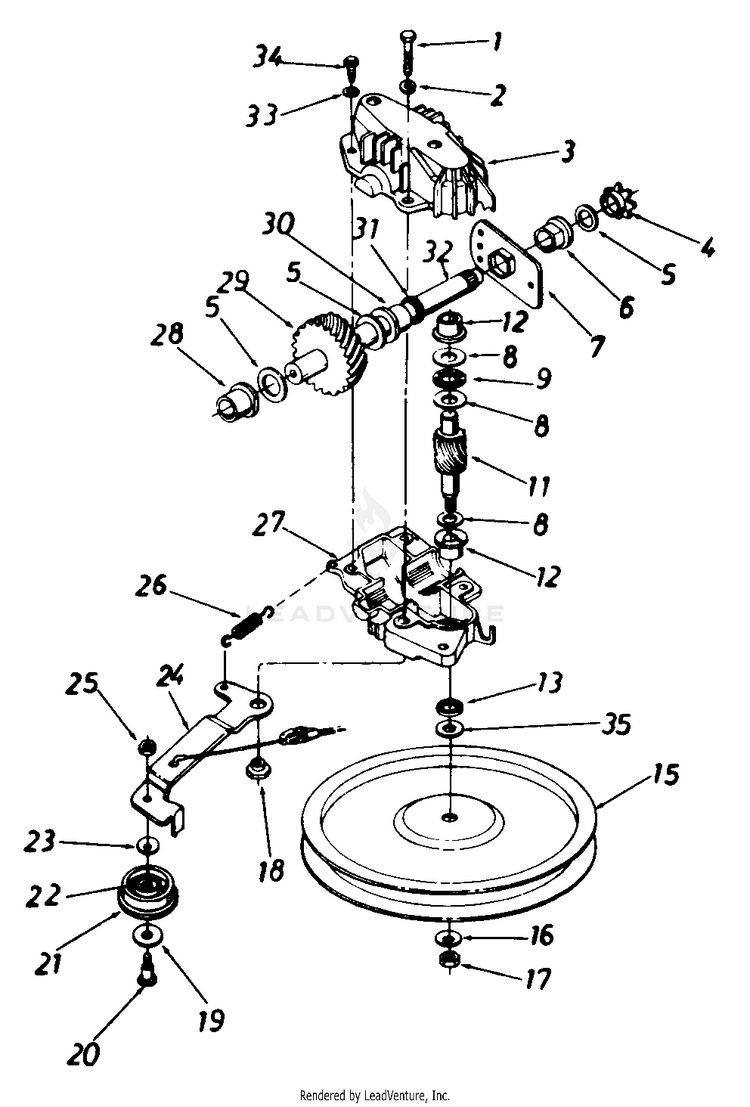

21"

...
...
1
Hex Bolt 1/4-20 x 1.25" Lg. w/Patch MTD-710-1062
...
2
L-Wash. 1/4" I.D. MTD-936-0329
...
3
Upper Hsg. Half MTD-717-0418A
...
4
#48 Sprocket 7 Tooth x 1/2 Pitch MTD-713-0400
...
5
FLAT WASHER MTD-936-0336
...
6
Hex Flange Brg. .631" I.D. MTD-741-0413
...
7
Hex Bearing Cup MTD-16500A-0637
...
8
Thrust Wash. .382" I.D. x .70" O.D. MTD-736-0314
...
9
Thrust Bearing .375" I.D. x .812" O.D. MTD-741-0479
...
11
11 Tooth Helical Gear MTD-917-1216
...
12
Flange Bearing MTD-748-0208A
...
13
Oil Seal MTD-721-0212
...
15
Fl-Pulley 5.06" O.D. (Not part of transmission complete) MTD-756-0330A
...
16
SPRING WASHER BELL (Not part of transmission complete) MTD-736-0270
...
17
Jam Nut, 1/4-28, LH (Not part of transmission complete) MTD-712-04326
...
18
Shld. Spacer .375" Dia. x .170 (Not part of transmission complete) MTD-738-0440
...
19
Fl-Wash. .390" I.D. x 1.0" (Not part of transmission complete) MTD-736-0344
...
20
Shld. Bolt .375" Dia. x .40" (Not part of transmission complete) MTD-738-0826
...
21
Fl-ldler Plastic 1.50" Dia. (Not part of transmission complete) MTD-956-0558
...
22
Needle Brg. .375" x .31 (Not part of transmission complete) MTD-741-0556
...
23
SPRING WASHER BELL (Not part of transmission complete) MTD-736-0270
...
24
Idler Brk't. Ass'y (Not part of transmission complete) MTD-17052A
...
25
Hex Patch L-Nut 1/4-28 Thd. (Not part of transmission complete) MTD-712-0138
...
26
Extension Spring .33 OD x 1.12 Lg. (Not part of transmission complete) MTD-732-0357A
...
27
Lower Hsg. Half MTD-717-0419A
...
28
Flange Bearing .566 ID MTD-941-0415
...
29
33 Tooth Helical Gear MTD-717-0422A
...
30
Flange Bearing .629 Dia. MTD-741-0414
...
31
Oil Seal .625 Dia. MTD-721-0213
...
32
Gear Sprocket Shaft MTD-738-0607A
...
33
L-Wash. #10 I.D. MTD-736-0722
...
34
Hex Wash. Hd. Self-Tap Scr. MTD-710-0651
...
35
Hex Washer .26" x .88" (Not part of transmission complete) MTD-736-0410
...
xx
Transmission Comp. MTD-917-0417B

21"

...
...
1
Front Axle Bolt MTD-738-0102
...
2
Wheels with Ball Brgs.(Beige) (Brg. Part No. 741-0484) MTD-734-1517B
...
4
Fl-Ball Brg. 1/2" I.D. MTD-941-0180
...
6
Bell-Wash. .380" I.D. x .88 MTD-736-0105
...
7
Screw, Hex MTD-710-0788
...
8
L-Wash. 1/4" I.D. MTD-936-0329
...
9
Block Bushing (Used with 1 hole lever only) MTD-741-0492A
...
xx
Block Bushing (Used with 3 hole lever only) MTD-741-0492A
...
10
Axle Ass'y. (Used with 1 hole lever only) MTD-17060
...
xx
Axle Ass'y. (Used with 3 hole lever only) MTD-17733
...
11
Height Adj. Bracket MTD-17059
...
12
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. (Used with 1 hole lever only) MTD-710-0599
...
xx
Hex TT-Tap Scr. 1/4-20 x .38" (Used with 3 hole lever only) MTD-710-0653
...
13
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
14
Spring Lever (With 1 hole) MTD-732-0553
...
xx
Spring Lever (With 3 holes) MTD-732-0639
...
15
Plastic Front End MTD-731-0865
...
16
Hex B-Tap Scr. 1/4" x .38" MTD-710-0352
...
17
Belt Cover MTD-17064
...
18
Hex Wash. Hd. TT-Scr. 1/4-20 MTD-710-0599
...
19
SPRING WASHER BELL MTD-736-0270
...
20
Hex Wash. Hd. B-Tap Scr. 1/4 x .62" (Spec.) MTD-710-0896
...
21
Hex Nut 1/4-20 Thd. MTD-912-0287
...
23
Transmission Belt Guard MTD-17058A-0637
...
24
S.P. Belt Guard MTD-747-0549
...
25
HL Screw, 5/16-14 x .750 MTD-710-1242
...
26
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
27
Hub Cap (Beige) MTD-731-0982C
...
28
S.P. Cable MTD-946-0710A
...
29
Wave Wash. .53" I.D. x .78" O.D. MTD-736-0232
...
30
External L-Wash. 1/4" I.D. (Used with 3 hole lever only) MTD-736-0222
...
...
...
