MTD 120-454R000 (1990) Self Propelled Mower

Model: 120-454R000 (1990)

Save Part Not Listed?
product name

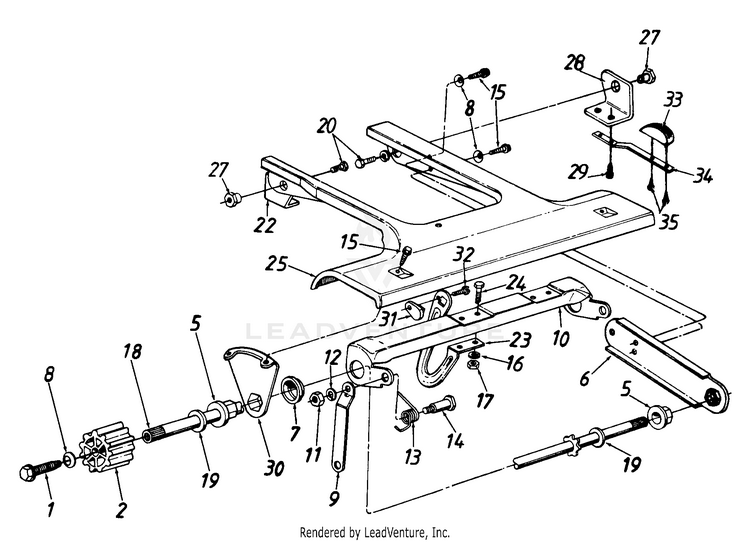

Parts

...
...
1
Hex Wash. Hd. Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
2
DRIVE PINION MTD-931-0908
...
5
Hex Flange Brg. .504" I.D. MTD-741-0503
...
6
SUPPORT-BEARING MTD-17018
...
7
FLANGE BEARING MTD-741-0504
...
8
SPRING WASHER BELL MTD-736-0270
...
9
LINK-5.3 LG MTD-16532B
...
10
DRIVE ENGAGEMENT CAM MTD-16832
...
11
HEX NUT 5/16-18 MTD-712-3010
...
12
Lock Wash. 5/16" I.D. MTD-936-0119
...
13
TORSION SPRING (RH) MTD-732-0569
...
xx
TORSION SPRING (LH) (Not Shown) MTD-732-0570A
...
14
Shoulder Bolt .437" Dia. MTD-738-0754
...
15
SCREW 1/4-14 x .625 MTD-710-0892
...
16
L-Wash. 1/4" I.D. MTD-936-0329
...
17
HEX NUT 1/4-20 MTD-912-0287
...
18
DRIVE SHAFT ASSEMBLY MTD-738-0732
...
19
Fl-Wash. .531" I.D. x .93" O.D. MTD-736-0160
...
20
Hex Bolt 3/8-16 x .5" Lg.* MTD-710-0168
...
xx
L-Wash. 3/8" I.D. MTD-736-0169
...
22
PIVOT BRACKET (RH) MTD-17614
...
23
ARM-ENGAGEMENT MTD-17185
...
24
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
25
FRONT PINION PIVOT COVER MTD-17725
...
27
Shoulder Nut.825 x .165 Lg. MTD-938-0529
...
28
PIVOT BRACKET (LH) MTD-17613
...
29
SCREW 1/4-14 x .625 MTD-710-0892
...
30
BRACKET-AXLE BEARI MTD-17017
...
31
HOLD DOWN-BARREL (RH) MTD-746-0606
...
32
Hex B-Tap Scr. #10 x .44" Lg. MTD-710-0919
...
33
CHAIN TENSIONER MTD-731-1136
...
34
SPRING-CANTILEVER MTD-732-0635
...
35
Hex B-Tap Scr. #10 x .38" MTD-910-0429

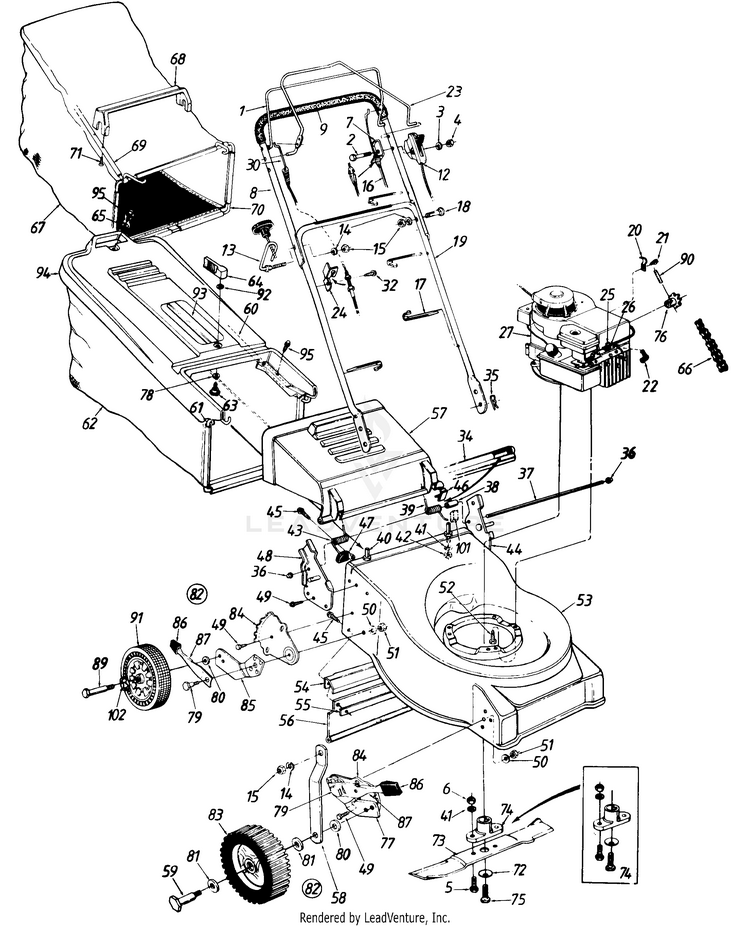

Parts

...
...
1
CONTROL HANDLE ASSEMBLY MTD-747-0748
...
2
Hex Bolt 1/4-20 x 1.75" Lg. (440R, 442R, 450R, 452R) MTD-710-0136
...
xx
Hex Bolt 1/4-20 x 2" Lg.* (444R, 446R, 454R, 456R) MTD-710-0501
...
3
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175
...
4
HEX NUT 1/4-20 MTD-912-0287
...
5
SCREW 3/8-24 C 1.00 GR5 MTD-710-1055
...
6
Hex Nut 3/8-24 Thd. MTD-712-0241
...
7
BRACKET-CA MTD-17173
...
8
UPPER HANDLE MTD-749-0438D-0637
...
9
Grip Foam (Optional) MTD-720-0295
...
12
Throttle Control Ass'y. Comp.- 0 51 .6211 MTD-946-0802A
...
13
SCREW-RECOIL HANDLE GUIDE MTD-710-0842B
...
14
Lock Wash. 5/16" I.D. MTD-936-0119
...
15
HEX NUT 5/16-18 MTD-712-3010
...
16
Control Cable 43.0" Lg. MTD-946-0551
...
17
Cable Tie MTD-725-0157
...
18
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
19
Lower Handle MTD-749-0907B
...
20
CASING CLAMP (440R, 442R, 450R, 452R) MTD-12894A
...
21
Hex B-Tap Scr. #10 x .38" (440R, 442R, 450R, 452R) MTD-910-0429
...
22
INSULATOR-SPARK PLUG (Optional) MTD-735-0639
...
23
CONTROL HANDLE ASSEMBLY MTD-747-0749A
...
24
CABLE BRACKET MOUNTING MTD-16309A
...
25
CLAMP-CONDUIT (440R, 442R, 450R, 452R) MTD-751-0369
...
26
Hex AB-Tap Scr. #8 x .5" Lg. (440R, 442R, 450R, 452R) MTD-710-0227
...
27
Engine MTD-NA
...
30
CLUTCH CABLE 47.0 YELLOW MTD-746-0627
...
32
Hex Wash. AB-Tap Scr. 5/16" x.75" Lg. MTD-710-0726
...
34
EXTRUSION SEAL MTD-731-0858
...
35
Int. Cotter Pin 5/16" Dia. MTD-714-0104
...
36
PUSH NUT MTD-726-0106
...
37
HINGE PIN MTD-747-0698B
...
38
Spacer, .260 x .372 x 1.030 MTD-750-0566A
...
39
TORSION SPRING MTD-732-0577A
...
40
SHOULDER PIN 3/8-24X1.43 MTD-711-0805
...
41
L-Wash. 3/8" I.D. MTD-736-0169
...
42
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
43
TORSION SPRING (RH) MTD-732-0578A
...
44
BRACKET ASSEMBLY MTD-12297A
...
45
Torx Mach. AB-Tap Scr. 1/4 x .62" Lg. MTD-710-1017
...
46
DEFLECTOR PLUG MTD-731-0970B
...
47
PLUG-CORNER MTD-731-0931
...
48
BRACKET ASSEMBLY MTD-12296B-0637
...
49
SCREW 1/4-14 x .625 MTD-710-0892
...
50
BELL WASHER MTD-936-0356
...
51
Hex Nut 3/8-16 Thd. MTD-712-0798
...
52
Hex TT-Tap Scr. 3/8-16 x 1" MTD-710-0654A
...
53
DECK ASSEMBLY MTD-16998
...
54
BAFFLE-CHU MTD-17014
...
55
RETAINING STRIP MTD-17003
...
56
Rear Flap 17.30" Lg. MTD-731-0669
...
57
CHUTE DEFLECTOR MTD-931-0859A
...
58
LINK-5.3 LG MTD-16532A
...
59
SHOULDER SCREW .498 MTD-738-0144
...
60
REAR CATCHER FRAME (Models 440R, 442R, 444R, & 446R only) MTD-749-0736B
...
61
CATCHER FRAME (Models 440R, 442R, 444R, & 446R only) MTD-764-0411-0637
...
62
Grass Bag (Models 440R, 442R, 444R, & 446R only) MTD-964-0252
...
63
BOLT, SHOULDER, 1/4-20 x 2.65 LG (Models 440R, 442R, 444R, & 446R only) MTD-738-0137
...
64
LOCKING KNOB (Models 440R, 442R, 444R, & 446R only) MTD-920-0224
...
65
Fl-Wash. .281" I D (Models 440R, 442R, 444R, & 446R only) MTD-736-0463
...
66
#48 CHAIN 1/2 PITCH x 50 LINKS (Endless) MTD-913-0311
...
67
GRASSBAG (Models 450R, 452R, 454R, & 456R only) MTD-764-0246
...
68
BAG HANDLE BLACK (Models 450R, 452R, 454R, & 456R only) MTD-731-0801
...
69
Rear Grass Catcher Frame (Models 450R, 452R, 454R, & 456R only) MTD-749-0764A-0637
...
70
CATCHER FRAME (Models 450R, 452R, 454R, & 456R only) MTD-764-0412-0637
...
71
SCREW #12 x 14 x 1.250 (Models 450R, 452R, 454R, & 456R only) MTD-710-1025
...
72
Bell-Wash. .39" I.D. x 1.12" O.D. MTD-736-0331
...
73
21" Blade MTD-942-0621
...
74
Blade Adapter Kit MTD-753-0484
...
75
Hex Bolt 3/8-24 x 1.5" Lg. MTD-710-1044
...
76
SPROCKET-10T MTD-713-0308
...
77
BAR-PIVOT (LH) *ON MTD-14766
...
78
Bowed Washer MTD-936-0286
...
79
Shld. Bolt .50" Dia. x .357" MTD-738-0507B
...
80
Bell-Wash. .38" I.D. x .88" O.D. MTD-736-0105
...
81
Fl-Wash. .531 " I.D. MTD-736-0192
...
82
ADJUSTER-H MTD-16107
...
xx
ADJUSTER-H MTD-16106
...
83
WHEEL ASSEMBLY W/TIRE MTD-734-1174A
...
84
Index Plate MTD-14764C
...
85
BAR-PIVOT (RH) *ON MTD-14765
...
86
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
87
SPRING LEVER MTD-732-0417A
...
89
Rear Axle Bolt MTD-738-0102
...
90
SPRING PIN MTD-715-0247
...
91
Wheel, 8 x 1.7 MTD-734-1855
...
92
Internal L-Wash. 1/4" I.D. MTD-736-0498
...
93
HARDTOP BAG COVER (Models 440R, 442R, 444R, & 446R only) MTD-631-0003
...
94
HARDTOP BAG COVER (Models 440R, 442R, 444R, & 446R only) MTD-631-0003
...
95
SCREW 1/4-14 x .625 (Models 440R, 442R, 444R, & 446R only) MTD-710-0892
...
xx
MUFFLER DEFLECTOR MTD-BS-393756
...
xx
Hex Wash. AB-Tap Scr. #8 x .5" Lg. MTD-710-0227
...
101
PLUG MTD-731-0564
...
102
Wave Wash. .53" I.D. x .78" O.D. MTD-736-0232
