MTD 11A-B0JC006 (2012) Push Walk Behind Mower

Model: 11A-B0JC006 (2012)

Back To Assemblies

Save Part Not Listed?
product name

1P65B0C Cylinder Head

...
...
2
Nut M6 MTD-712-05015
...
41
Bolt M6X14 Multi-Purpose MTD-710-04916
...
143
CYLINDER HEAD (Incl.140,141,143,145-150,152-156,160,165) MTD-951-11746
...
144
Bolt M8X54 Cylinder Head MTD-710-04982
...
145
PUSH ROD GUIDE MTD-951-11687A
...
146
Valve Kit MTD-951-10313
...
147
VALVE SEAL MTD-951-11818
...
148
Valve Kit MTD-951-10313
...
149
VALVE SPRING MTD-751P12004A
...
150
Valve Spring Retainer MTD-951-11977
...
151
ROCKER ARM MTD-951-11606A
...
152
Rocker Arm Stud MTD-710-04902
...
153
Rocker Arm MTD-951-12001
...
154
Fulcrum Nut MTD-751-11123
...
155
Jam Nut MTD-751-11124
...
156
VALVE COVER GASKET MTD-951-11551
...
157
VALVE COVER MTD-951-11548
...
158
Spark Plug MTD-951-10292A
...
159
Muffler Stud M6X68 MTD-951-11740
...
159
MUFFLER STUD ASSEMBLY MTD-951-11745
...
160
Muffler Gasket MTD-951-11739
...
161
MUFFLER ASSEMBLY MTD-951-11742
...
162
MUFFLER SHIELD MTD-951-11743
...
163
SPARK ARRESTOR MTD-951-10351A
...
164
Spark Arrestor Screw MTD-710-04983
...
165
CYLINDER HEAD GASKET MTD-951-11555
...
166
Dowel Pin 10×16 MTD-715-04108
...
167
Push Rod MTD-951-10314
...
168
Tappet MTD-951-11607
...
169
Camshaft Assembly MTD-951-11741
...
183
COMPLETE ENGINE 139cc MTD-952Z1P65BU
...
184
CYLINDER HEAD SERVICE KIT (Incl.144,147,156,165) MTD-951-10846A
...
186
GASKET KIT (EXTERNAL) (Incl.43,98,100,139-141,156,160) MTD-951-11710
...
187
Gasket Kit - Complete (Incl.40,43,72,78,98,100,105,139-141,156,160,165) MTD-951-11709

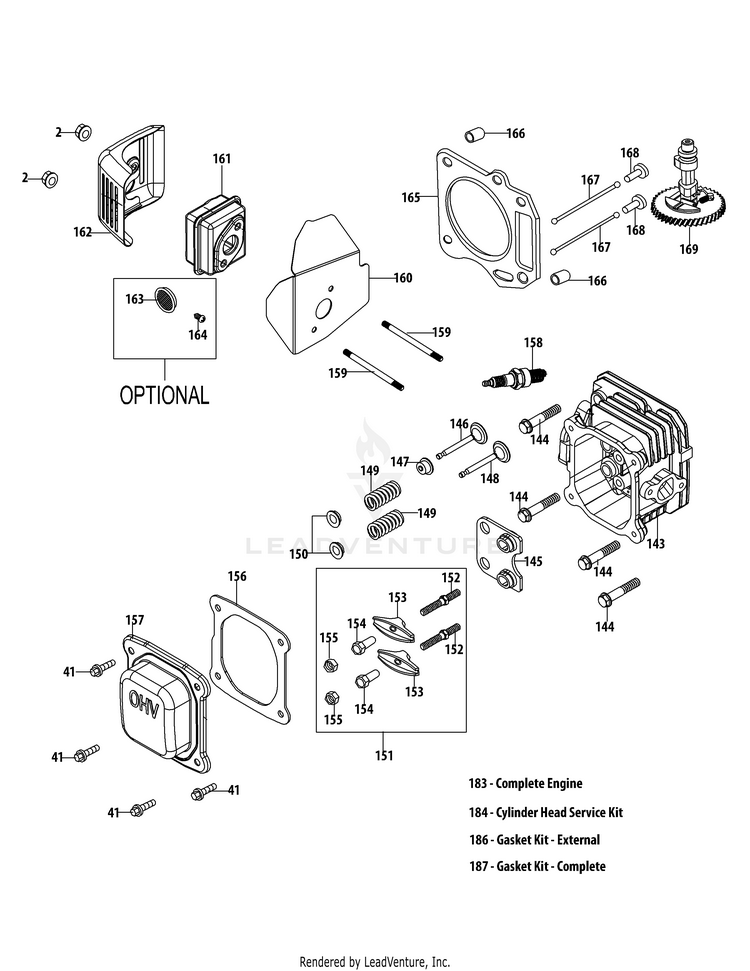

Schematic Image Zoomed
