MTD 11A-B0JC006 (2012) Push Walk Behind Mower

Model: 11A-B0JC006 (2012)

Back To Assemblies

Save Part Not Listed?
product name

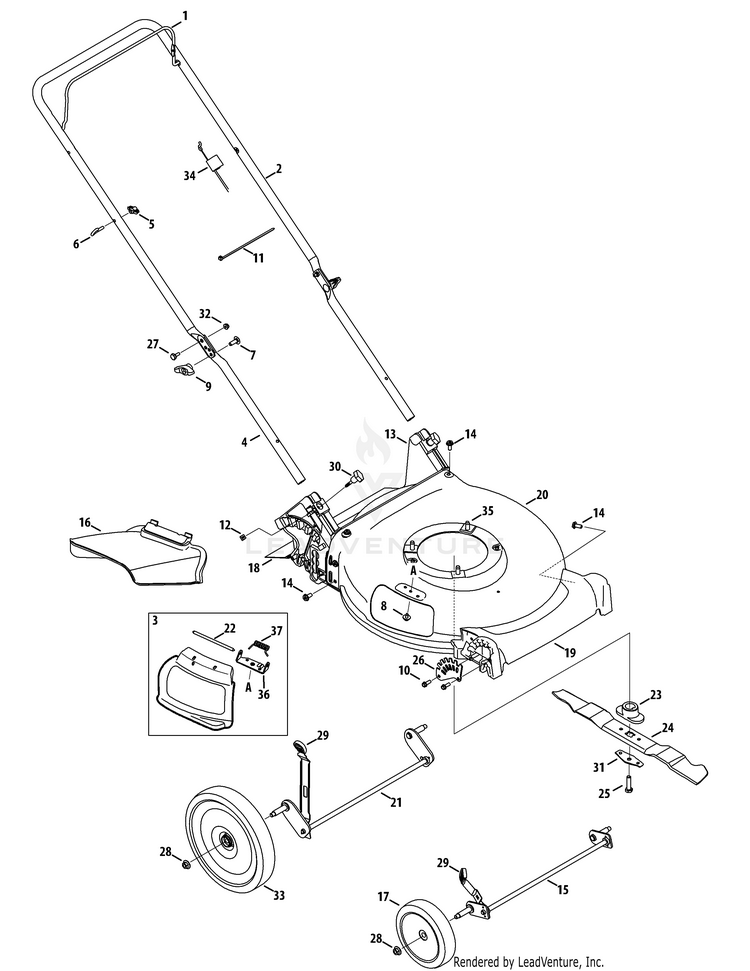

General Assembly 11A-B0X

...
...
1
Blade Control MTD-747-05184D
...
2
UPPER HANDLE (POWDER BLACK) MTD-749-05084B-0637
...
3
21" MULCH PLUG (HINGED) MTD-687-06029
...
4
LOWER HANDLE (POWDER BLACK) MTD-749-07298-0637
...
5
Wing Nut MTD-720-0279
...
6
Rope Guide MTD-710-1205
...
7
Carriage Screw ,5/16-18 MTD-710-04998
...
8
Screw, 1/4-20 x .500 MTD-710-05073
...
9
Wing Knob MTD-720-04122
...
10
Screw, 1/4-15 x .750 MTD-710-0895
...
11
Cable Tie MTD-725-0157
...
12
Nut, Sq., 1/4-20 MTD-712-04222
...
13
REAR BAFFLE ASSEMBLY MTD-631-08164
...
13
REAR BAFFLE ASSEMBLY MTD-931-04485A
...
14
SCREW 5/16-14 X .750 MTD-710-04995A
...
15
7" FRONT AXLE ASSEMBLY MTD-611-04143B
...
16
Side Chute MTD-731-07486
...
17
Front Wheel, 7 x 1.8, Gray MTD-734-04562
...
18
Trail Shield MTD-731-07203
...
19
Front Cover MTD-753-08680
...
20
21" DECK (3N1) MTD-787-01869B-0638
...
20
21" DECK (3N1) MTD-787-01869B-0709
...
21
REAR AXLE MTD-611-04144B
...
22
Hinge Pin MTD-747-0710A
...
23
Blade Adapter MTD-748-0376E
...
24
Mulching Blade MTD-942-0741A
...
25
Screw , 3/8-24 x 1.50 MTD-710-1044
...
26
Front Height Adjuster Plate MTD-787-01818A-0637
...
27
Sldr. Screw, .375 x .126 x 1/4-20 MTD-738-04419A
...
28
Flange Lock Nut, 3/8-16 MTD-712-04217
...
29
Adjustment Lever Knob MTD-720-04130
...
30
WING KNOB 1/4-20 MTD-720-05066A
...
31
BLADE BELL SUPPORT MTD-736-0524B-1
...
32
Nut, Flange Lock, 1/4-20 MTD-712-04064
...
33
Rear Wheel, 11 x 1.8, Gray MTD-634-04625
...
34
Control Cable, 37.25" B&S Engine MTD-946-0957
...
34
CONTROL CABLE 48" MTD/Powermore Engine MTD-946-04703A
...
35
TT Sems Screw, 3/8-16 x 1.0 MTD-710-0654A
...
36
Chute Deflector Bracket MTD-787-01779
...
37
Torsion Spring MTD-732-1014C
