MTD 11A-08MB006 (2009) Push Walk Behind Mower

Model: 11A-08MB006 (2009)

Back To Assemblies

Save Part Not Listed?
product name

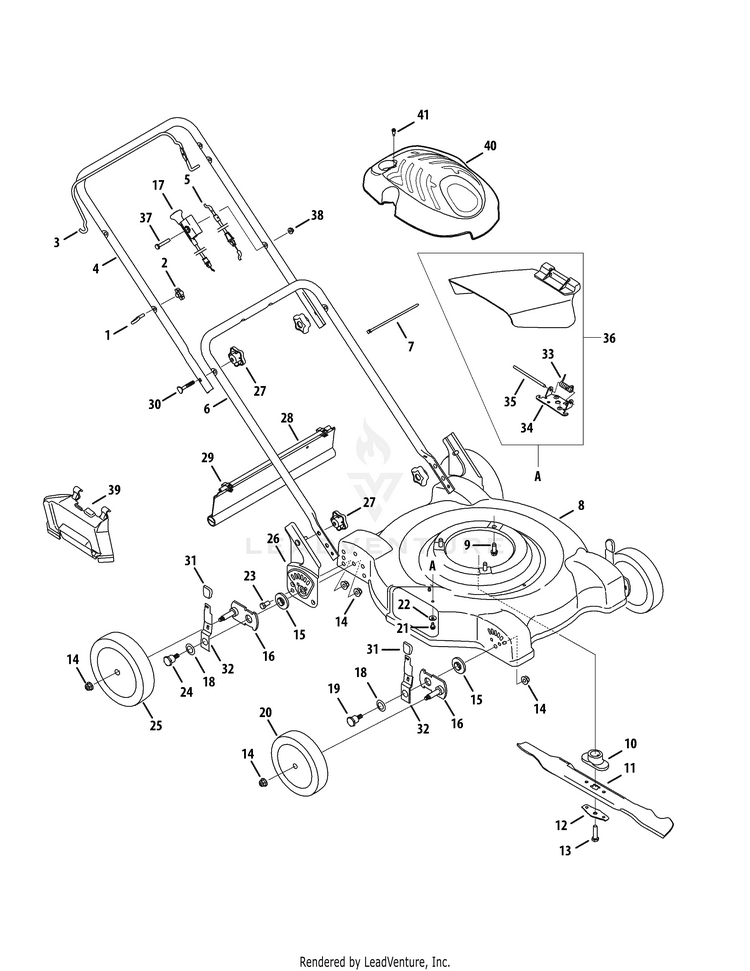

General Assembly

...
...
1
Eye Bolt MTD-710-1205
...
2
Wing Nut MTD-720-0279
...
3
Blade Control Handle MTD-747-1161A-0637
...
4
Upper Handle MTD-749-1092A-0637
...
5
ERS Control Cable MTD-946-04300
...
6
Lower Handle MTD-749-04037
...
7
Cable Tie MTD-725-0157
...
8
22" DECK ASSEMBLY(MTD RED) MTD-687-02048A-0638
...
9
TT Screw, 3/8-16 x 1.0 MTD-710-0654A
...
10
Blade Adapter MTD-748-0376E
...
11
Standard Blade, 22" MTD-942-0642A
...
11
Blade If Equipped MTD-742-0742A-0637
...
12
BLADE BELL SUPPORT MTD-736-0524B-1
...
13
Screw, 3/8-24 x 1.5 MTD-710-1044
...
14
Lock Nut, 3/8-16 MTD-712-04065
...
15
Height Adjuster Bearing MTD-741-04242
...
16
Pivot Arm MTD-687-02342
...
17
Choke Cable MTD-946-04295A
...
18
Bell Washer, .760 OD x 1.25 OD MTD-736-0741
...
19
Shoulder Screw MTD-738-1172
...
20
Front Wheel, 7 x 1.8, Bar MTD-734-1988
...
21
TT Screw, 1/4-20 x .5 MTD-710-0599
...
22
SPRING WASHER BELL MTD-736-0270
...
23
Screw, 3/8-16 x .75 MTD-710-0216
...
24
Shoulder Screw MTD-738-1173
...
25
Rear Wheel, 8 x 1.8, Bar MTD-734-1987
...
26
HANDLE BRACKET ASSEMBLY (RH) (POWDER BLACK) MTD-682-3064-0637
...
26
Handle Bracket Assembly, LH MTD-682-3065-0637
...
27
Star Knob MTD-720-04072A
...
28
Trailshield MTD-731-04019
...
29
HINGE CLIP MTD-17098P
...
30
Carriage Bolt, 5/16-18 x 2 MTD-710-1174
...
31
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
32
Lever MTD-732-1026
...
33
Torsion Spring MTD-732-1014C
...
34
PLATE-ADAPTER MTD-17032A
...
35
Hinge Pin MTD-747-0710A
...
36
CHUTE DEFLECTOR MTD-931-1034B
...
37
Screw, 1/4-20 x 1.50 MTD-710-0606
...
38
Nut, Flange Lock, 1/4-20 MTD-712-04064
...
39
Mulching Baffle If Equipped MTD-631-04045
...
40
ENGINE SHROUD MTD-731-06265A
...
41
Screw, HL, #12-16 x 1.00 MTD-710-04744
