MTD 11A-02JV006 (2011) Push Walk Behind Mower

Model: 11A-02JV006 (2011)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

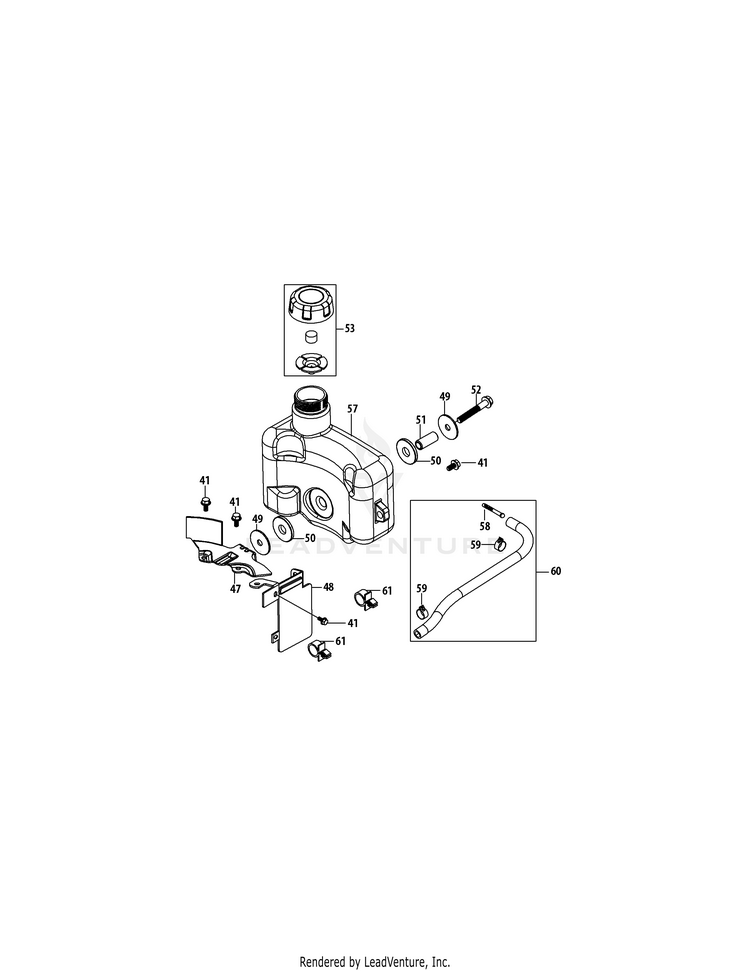

1P65N0 Fuel Tank & Mounting

...
...
41
Bolt M6×14 MTD-710-04916
...
47
Fuel Tank Bottom Bracket MTD-951-11542
...
48
Tank/Label Bracket MTD-951-11748
...
49
FUEL TANK WASHER MTD-736-04456
...
50
Rubber Bushing MTD-951-10335
...
51
Fuel Tank Bushing MTD-750-05322
...
52
Tank Bolt M8X50 MTD-710-04922
...
53
Fuel Cap Assembly MTD-951-10300
...
57
FUEL TANK MTD-951-10337
...
58
FUEL FILTER MTD-951-12296A
...
59
CARBURETOR HOSE CLAMP MTD-951-11700A
...
60
Fuel Line Kit MTD-951-10363
...
61
FUEL LINE SUPPORT CLAMP MTD-723-04071A
