product name

MTD 11A-02JV006 (2011) Push Walk Behind Mower

Model: 11A-02JV006 (2011)

Back To Assemblies

Save Part Not Listed?
product name

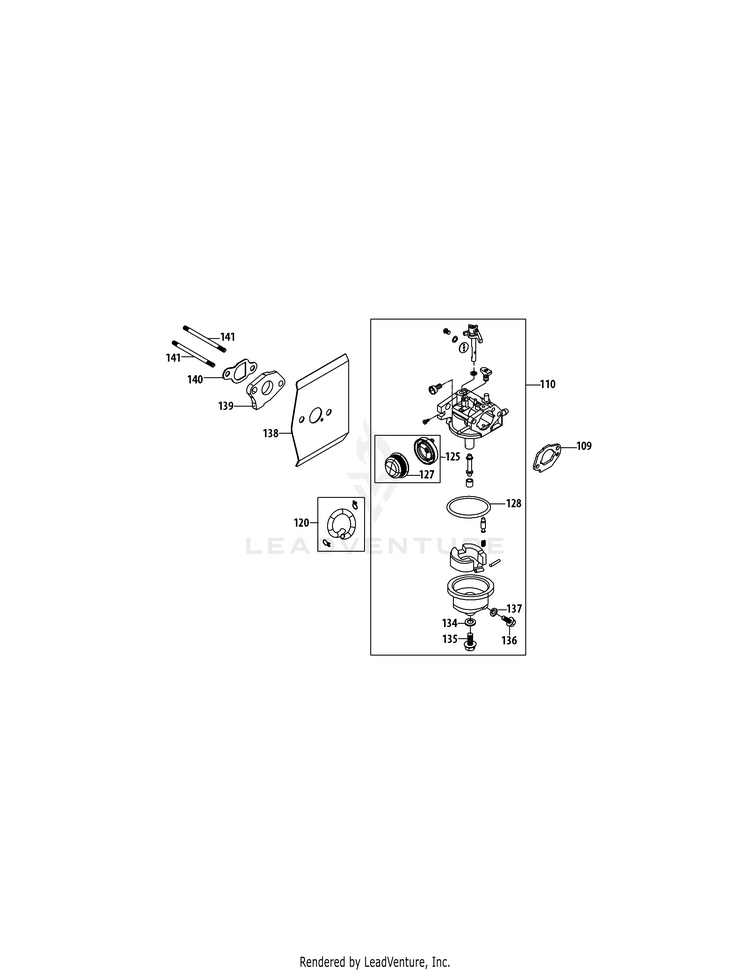

1P65N0 Carburetor Assembly

...
...
109
Carburetor Gasket Plate MTD-951-11525
...
110
Carburetor Assembly MTD-951-11707
...
120
Primer Hose Assembly MTD-951-11736
...
125
PRIMER MTD-951-10639B
...
127
Primer Bulb MTD-951-11824
...
128
Fuel Bowl O-Ring MTD-951-11589
...
134
FUEL BOWL GASKET MTD-951-11348A
...
135
Fuel Bowl Mounting Bolt MTD-710-04945
...
136
FUEL DRAIN PLUG MTD-710-04938
...
137
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
138
Carburetor Gasket MTD-951-11737
...
139
CARBURETOR INSULATOR MTD-951-11738A
...
140
Carburetor Insulator Gasket MTD-951-11528
...
141
Carb Stud M6X92 MTD-710-05093
...
xx
Carburetor Repair Kit - Major (Incl. 116,117,123,124,128-132,134,137) MTD-951-12431
