MTD 11A-020L706 (2012) Push Walk Behind Mower

Model: 11A-020L706 (2012)

Save Part Not Listed?
product name

.Quick Reference 11A-020

...
...
xx
Spark Plug B&S Engine MTD-BS-796112S
...
xx
Air Filter B&S Engine MTD-490-200-0011
...
xx
Fuel Cap B&S Engine MTD-BS-497929S
...
xx
Spark Plug MTD/Powermore Engine MTD-951-10292A
...
xx
Air Filter Kit MTD/Powermore Engine MTD-951-10732
...
xx
FUEL FILTER MTD/Powermore Engine MTD-951-12296A
...
xx
Fuel Cap MTD/Powermore Engine MTD-951-10300
...
xx
Control Cable, 37.25" B&S Engine MTD-946-0957
...
xx
CONTROL CABLE 48" MTD/Powermore Engine MTD-946-04703A
...
xx
Blade Adapter MTD-748-0376E
...
xx
20" BLADE (POWDER BLACK) MTD-742-0640-0637
...
xx
BLADE BELL SUPPORT MTD-736-0524B-1
...
xx
Blade Bolt MTD-710-1044
...
xx
COMPLETE WHEEL MTD-734-04063B
...
xx
COMPLETE WHEEL MTD-734-04063B
...
xx
Trailshield MTD-731-06953
...
xx
20" FIXED DISCHARGE CHUTE MTD-731-0064A
...
xx
Mulch Plug MTD-NA
...
xx
Grass Bag MTD-NA
...
xx
Grass Bag Frame MTD-NA
...
xx
BLADE REMOVAL TOOL MTD-490-850-0005
...
xx
BLADE BALANCER AND SHARPENER MTD-490-850-0006
...
xx
CARB & CHOKE CLEAN MTD-490-000-0028
...
xx
SIPHON PUMP MTD-490-850-0008
...
xx
UNIVERSAL LAWN MOW MTD-490-290-0012
...
xx
SPARK PLUG WRENCH 3/4, 5/8, 13/16 MTD-490-850-0018
...
xx
GENUINE FACTORY PARTS® 20" High Lift Blade 942-0640 (Bow Tie) MTD-490-100-F115

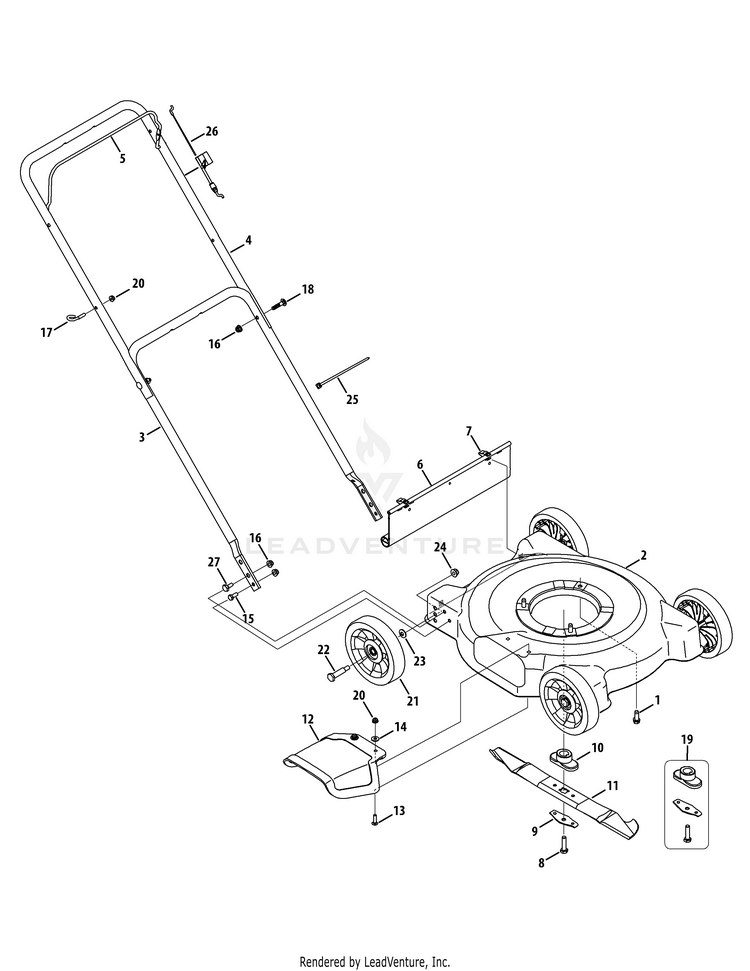

General Assembly 11A-020

...
...
1
Hex Ind. Washer Screw, 3/8-16 x 1.0 MTD-710-0654A
...
2
Cutting Deck, 20" MTD-787-01759A-0638
...
3
Lower Handle MTD-749-04037
...
4
Upper Handle MTD-749-1092A-0637
...
5
Blade Control MTD-747-1161A-0637
...
6
Rear Flap MTD-731-06953
...
7
Hinge Clip MTD-732-04631A
...
8
Screw, 3/8-24 x 1.5" MTD-710-1044
...
9
BLADE BELL SUPPORT MTD-736-0524B-1
...
10
Blade Adapter MTD-748-0376E
...
11
20" BLADE (POWDER BLACK) MTD-742-0640-0637
...
12
20" FIXED DISCHARGE CHUTE MTD-731-0064A
...
13
SCREW 1/4-20 x 1 GR5 MTD-710-0932A
...
14
Flat Washer MTD-736-0173
...
15
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
16
Flange Lock Nut, 5/16-18 MTD-712-04063
...
17
Eye Bolt MTD-710-1205
...
18
Carriage Bolt, 5/16-18 x 1.5" MTD-710-0262
...
19
Blade Adapter Kit (Incl. Ref. 8-10) MTD-753-06315
...
20
Flange Lock Nut, 1/4-20 MTD-712-04064
...
21
COMPLETE WHEEL MTD-734-04063B
...
22
SCREW:SHLDR:0.498X1.630:3/8-16 MTD-738-0533
...
23
Bell Washer MTD-736-0105
...
24
Flange Lock Nut, 3/8-16 MTD-712-04065
...
25
Cable Tie MTD-725-0157
...
26
Control Cable, 148cc, 37.25" B&S Engine MTD-946-0957
...
26
CONTROL CABLE 48" MTD/Powermore Engine MTD-946-04703A
...
27
Shoulder Screw, 5/16-18 x.428" MTD-738-04033

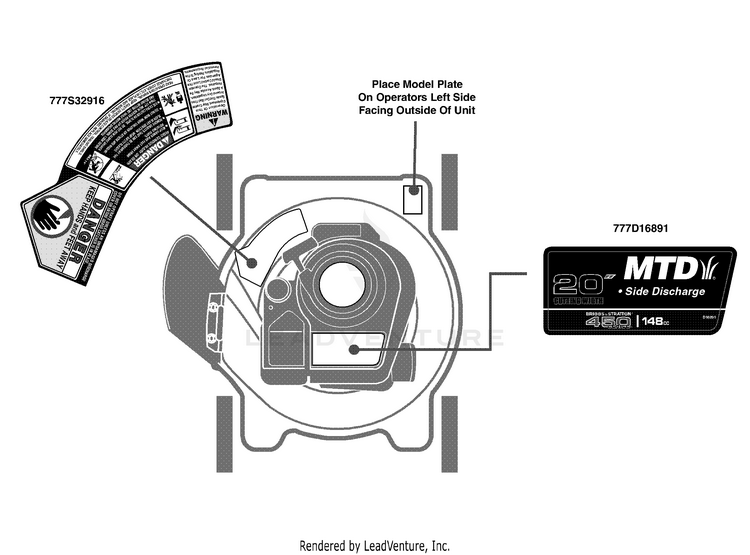

Label Map 11A-020L706

...
...
777S32916
LABEL-MOWER DECK S MTD-777S32916
...
777D16891
LABEL-MOWER SHROUD 9/10 STYLE MTD-777D16891
