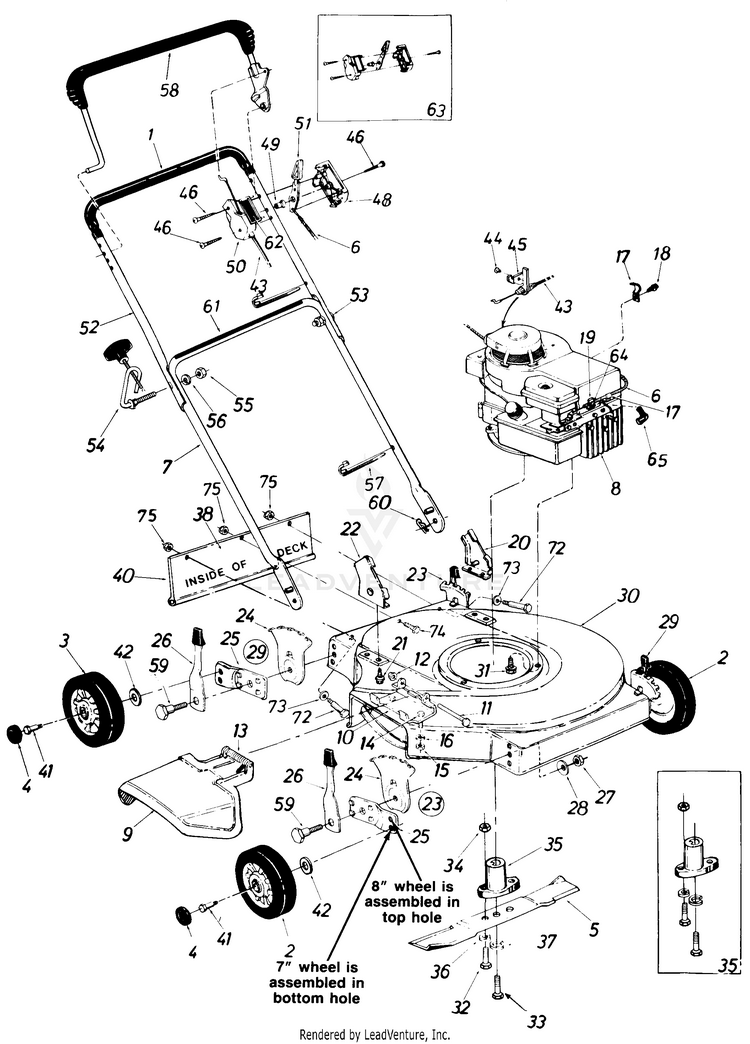

MTD 11702-7 (1987) Push Walk-Behind Mower

Model: 11702-7 (1987)

Save Part Not Listed?
product name

Rotary

...
...
1
Grip MTD-718-0145
...
2
WHEEL ASSEMBLY MTD-734-0719
...
3
WHEEL ASSEMBLY MTD-734-0719
...
4
HUB CAP MTD-734-0720
...
5
20" BLADE MTD-742-0123
...
6
Throttle Wire 55" Lg. MTD-946-0671A
...
7
Lower Handle MTD-749-0928A-0637
...
8
Engine MTD-NA
...
9
DEFLECTOR MTD-11683
...
10
ADAPTER PLATE MTD-11130
...
11
PIVOT PIN MTD-711-0555
...
12
PUSH NUT MTD-726-0106
...
13
TORSION SPRING MTD-732-0253
...
14
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
15
HEX NUT 1/4-20 MTD-912-0287
...
16
L-Wash. 1/4" I.D. MTD-936-0329
...
17
CABLE CLAMP MTD-12894
...
18
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
19
CLAMP-CONDUIT MTD-751-0369
...
20
BRACKET AS MTD-12935
...
21
Hex Wash. Hd. B-Tap Scr. 5/16-18 x .50" Lg. MTD-710-0603
...
22
BRACKET ASSY-HDLE MTD-12936
...
23
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
24
Height Adjustment Plate MTD-787-01290A
...
25
Pivot Bar 7" wheel assembled in bottom hole, 8" wheel assembled in top hole MTD-15262B
...
26
Front Spring Lever MTD-94832
...
27
Hex Nut 3/8-16 Thd. MTD-712-0798
...
28
Bell-Wash. .39" I.D. x 1.13" O.D. MTD-736-0331
...
29
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
30
20" Deck Ass'y. Comp. MTD-14920
...
31
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
32
Hex Bolt 5/16-18 x 1.0" Lg. (Grade 8) MTD-710-0888
...
33
Hex Bolt 3/8-24 x 2.25" Lg. (Grade 5) MTD-710-0331
...
34
Hex Nut 5/16-24 Thd. MTD-912-3057
...
35
Blade Adapter Kit MTD-753-0348
...
36
Lock Wash. 5/16" I.D. MTD-936-0119
...
37
L-Wash. 3/8" I.D. H.D. MTD-736-0217
...
38
Retaining Strip MTD-14837
...
40
REAR FLAP ASS'Y. MTD-731-0583
...
41
Axle Bolt MTD-738-0102
...
42
Bell-Wash. .400" I.D. x .88" O.D. MTD-736-0105
...
43
CONTROL CABLE 35" MTD-746-0475
...
44
BRACKET-CA MTD-14924
...
45
RIVET MTD-728-0171
...
46
Truss. Mach. Self-Tap Scr. #12 x 1.5" Lg. MTD-710-0796
...
48
PANEL MTD-731-0817
...
49
CONROL DISC PIN MTD-731-0524
...
50
CIUTCH PANEL HALF MTD-731-0816
...
51
Throttle Control Lever MTD-931-0972
...
52
UPPER HANDLE MTD-749-0536
...
53
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
54
OPE GUIDE BOLT MTD-710-0842
...
55
HEX NUT 5/16-18 MTD-712-3010
...
56
Lock Wash. 5/16" I.D. MTD-936-0119
...
57
Cable Tie MTD-725-0157
...
58
BAIL (LH) MTD-731-0609
...
59
Shoulder Bolt .50" Dia. MTD-738-0507B
...
60
Hairpin Cotter MTD-714-0104
...
61
LABEL MTD-777-5776
...
62
LABEL - THROTTLE CONTROL MTD-777-5773
...
63
CONTROL HOUSING COMP. MTD-753-0430
...
64
Hex Wash. Hd. AB-Tap Scr. #8 x .38" Lg. MTD-710-0227
...
65
INSULATOR-SPARK PLUG MTD-735-0639
...
72
SHOULDER SCREW MTD-738-0572
...
73
Flat Wash. .28" I.D. x .75" O.D. MTD-736-0342
...
74
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
75
Hex Ins. L-Nut 1/4-20 Thd. MTD-712-0324
...
xx
Hardware Pack MTD-8702-400-7
