MTD 111-710R000 (1991) Push Walk-Behind Mower

Model: 111-710R000 (1991)

Back To Assemblies

Save Part Not Listed?
product name

Parts

...
...
1
Engine Mounting Bolt (Special) MTD-706-10605016
...
2
SHIELD MTD-706-10795
...
3
Fl-Wash. 3/16" I.D. MTD-706-10099-01-05
...
4
POP RIVET MTD-928-0180
...
5
HANDLE BRACKET MTD-706-13053-00-91
...
6
Mount Bracket - Grass Catcher MTD-706-14093-00-91
...
7
Hex Bolt 5/16-18 x .88" Lg. - 650C MTD-710-3038
...
8
BOLT:CAR:5/16-18:.75 MTD-710-0451
...
9
HEX KEPS L-NUT 5/16-18 THD. MTD-706-10003-02
...
12
SPRING - REAR DOOR MTD-706-10238
...
13
Hinge Pin - Rear Door MTD-706-14092-00-05
...
14
REAR DOOR MTD-706-14091-00-90
...
15
PUSH NUT MTD-726-0135
...
16
21" Steel Deck Ass'y. MTD-706-11058-01-10
...
17
Blade Adapter Kit (For Keyed Shaft) MTD-753-0484
...
xx
SPLINED BLADE ADAPTER KIT (For Splined Shaft) MTD-753-0485
...
18
21" Blade MTD-942-0621
...
19
Bell-Wash. .39" I.D. x 1.14" O.D. (Keyed) MTD-736-0452
...
xx
BELL WASHER (Spli ned) MTD-936-0453
...
20
Hex Bolt 3/8-24 x 1 1/2" (Keyed) MTD-710-1044
...
xx
Hex Bolt 7/16-20 x 1 1/2 (Splined) MTD-710-0757
...
21
SCREW 3/8-24 C 1.00 GR5 MTD-710-1055
...
22
L-Wash. 3/8" I.D. MTD-736-0169
...
23
Hex Nut 3/8-24 Thd. MTD-712-0241
...
31
UPPER HANDLE MTD-706-10753-00-90
...
xx
HANDLE ASSEMBLY-UPPER-7/8 MTD-706-11038-07
...
32
Brake Cable (Std. B&S Engines) MTD-706-10979-04
...
xx
CABLE-ZONE RESTART (B&S Quantum) MTD-706-14269-04
...
xx
Brake Cable (Tecumseh w/ Throttle) MTD-706-14269
...
xx
CABLE-ZONE RESTART (Tecumseh w/ out Throttle) MTD-706-14269-04
...
33
THROTTLE CONTROL (Std. B&S Engines) MTD-746-0743
...
xx
THROTTLE CONTROL 58.8" (B&S Quantum) MTD-946-0821A
...
xx
THROTTLE CONTROL 58.8" (Tecumseh Engines) MTD-946-0821A
...
34
TAP SCREW #10-32X 1/2" MTD-706-10604-08
...
35
PLASTIC TIE MTD-706-10748
...
36
Hex Bolt 1/4-20 x 2" Lg. MTD-710-0501
...
xx
Hex Bolt 1/4-20 x 1 1/4 Lg. (Fixed Spd. Tec. Only) MTD-710-0106
...
xx
Hex Bolt 1/4-20 x 2-1/4" (B&S Quantum Only) MTD-710-0641
...
37
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
38
R.H. BAIL STOP BRACKET MTD-706-10153-00-09
...
xx
BRACKET-BA MTD-706-10699-00-09
...
39
ENGINE CONTROL LEVER MTD-706-10716-00-91
...
40
LOWER HANDLE MTD-706-10749-00-90
...
41
Carriage Bolt 5/16-18 x 2 MTD-710-1174
...
42
Star Knob MTD-720-04072A
...
43
Cotter Pin .75" Lg. MTD-714-0474
...
44
ROPE GUIDE MTD-706-10616
...
45
Hex Sems Nut 1/4-20 Thd. MTD-712-0271
...
47
GUIDE-THROTTLE CABLE PL MTD-706-10787-00-05
...
48
CLAMP-CONDUIT (Std. B&S) MTD-751-0369
...
xx
Cable Clamp (B&S) (B&S Quantum Only) MTD-BS-690798
...
49
Tapping Screw #10 x 5/8" Lg. MTD-706-10606-10
...
50
Hex Screw #10 x 5/8" Lg. (Std. B&S) MTD-710-1093
...
xx
Screw-Casing Clamp (B&S Quantum Only) MTD-706-14697-01
...
51
Trim Panel (Optional) MTD-706-10321-01-90
...
52
TAP SCREW #10-32X 1/2" MTD-706-10604-08
...
60
Cotter Pin .75" Lg. MTD-714-0474
...
61
TIRE ASSEMBLY 8 x 1.75 (Gray Dia. Thd.) (Please check type and diameter of wheel before ordering) MTD-734-1697
...
xx
Wheel, 8" (Rib Thd.) (Please check type and diameter of wheel before ordering) MTD-734-04585
...
xx
8" Steel Wheel w/Nylon Brgs. (Please check type and diameter of wheel before ordering) MTD-706-14633-01
...
62
BEARING-.5 (For Steel Wheels Only) MTD-706-10653
...
xx
BALL BEARING (For Steel Wheels Only) MTD-941-0484
...
63
BEARING-.5 (For Steel Wheels Only) MTD-706-10652
...
xx
BALL BEARING (For Steel Wheels Only) MTD-941-0484
...
64
Flat Washer 1/2" I.D. MTD-736-0192
...
65
Flange Lock Nut 3/8-16 MTD-912-0431
...
xx
ADJUSTER ASS'Y. (R.F. & L.R.) MTD-706-10127-02
...
xx
HEIGHT ADJ (L.F. & R.R.) MTD-706-10128-02
...
67
ADJUSTER KNOB MTD-706-10709-00-90
...
68
SHOULDER BOLT MTD-706-10655
...
69
Sprinq - Adjuster MTD-706-10160
...
70
DISC & PIN ASS'Y MTD-706-10968-01-05
...
71
LEVER - ADJUSTER MTD-706-10710-00-05
...
72
INNER PLATE MTD-706-10731-00-05
...
73
HUB CAP-BL (For Steel Wheels) MTD-706-10741-00-90
...
xx
HUB CAP (For Std. Marlex Wheels) MTD-706-10740
...
xx
HUB CAP (For Gray Marlex Wheels) MTD-706-13892
...
74
SPACER (For Rear Bolt on Wheels ONLY) MTD-706-10776
...
xx
Fl-Wash. .375" I.D. x 1.00" O.D. x .030" (For Front Bolt on Wheels ONLY) MTD-936-0101
...
75
Support Plate (For Bolt on Wheels ONLY) MTD-706-14221-00-05
...
76
BOLT WHEEL AXLE MTD-706-10118-01
...
77
SPACER MTD-750-0796
...
78
FLAT WASHER (For Steel Wheels ONLY) MTD-936-0456

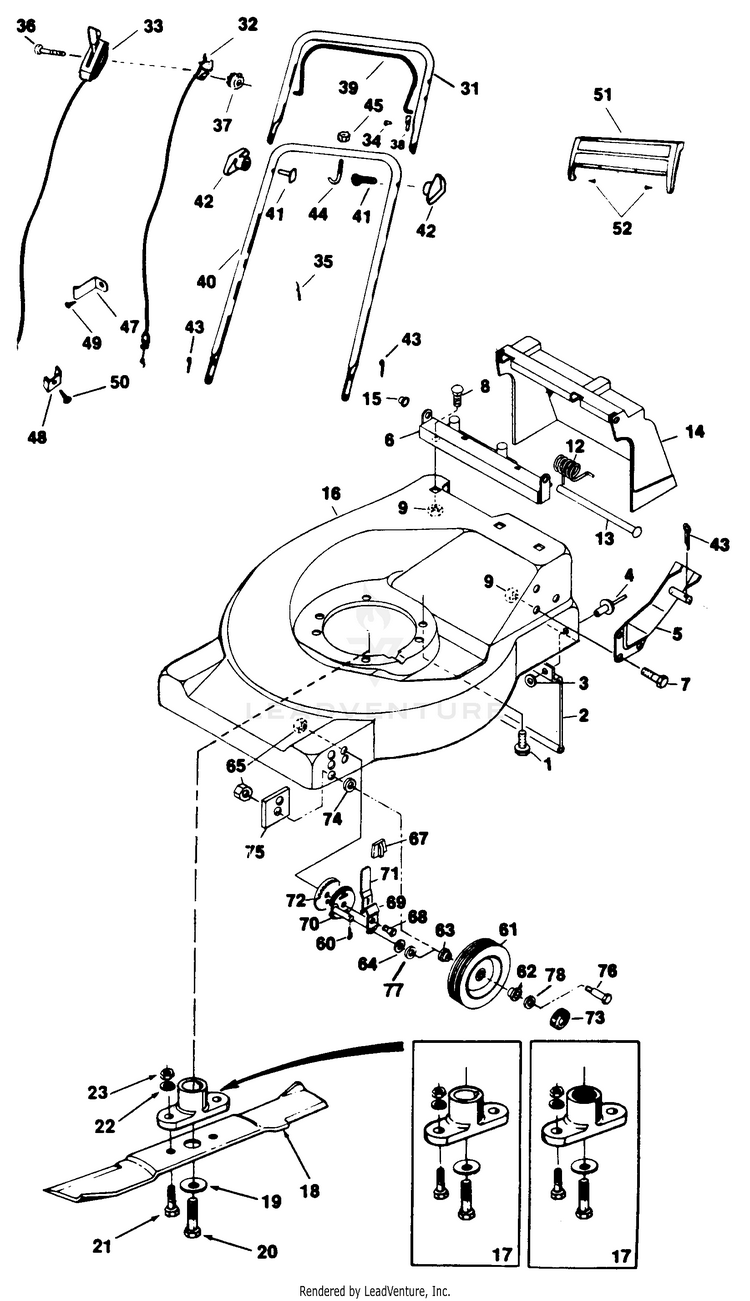

Schematic Image Zoomed
