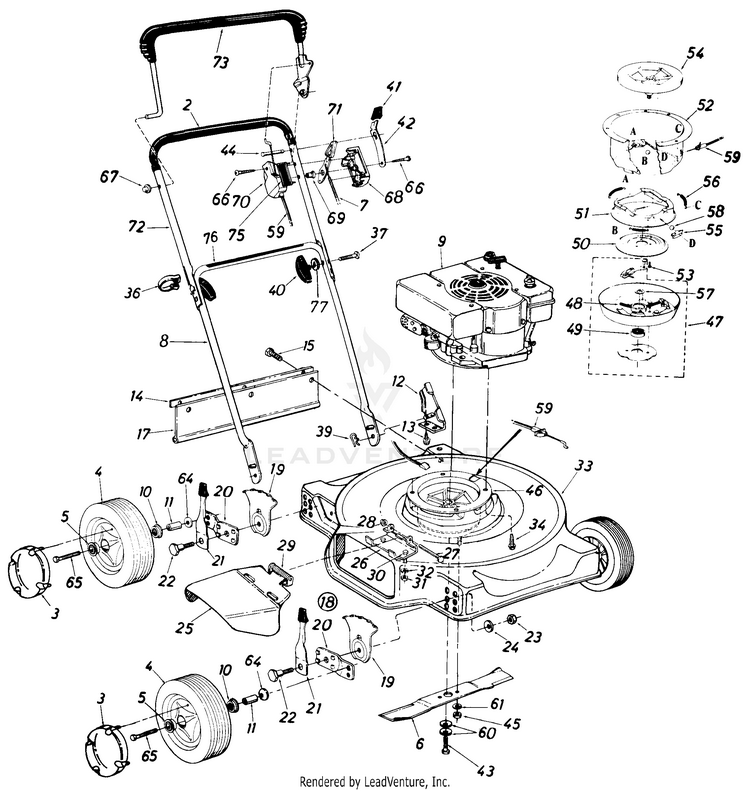

MTD 11084S (1985) Push Walk-Behind Mower

Model: 11084S (1985)

Save Part Not Listed?
product name

Rotary

...
...
2
Grip MTD-718-0145
...
3
Hub Cap MTD-731-0571
...
4
FRONT WHEEL ASS'Y. 8 x 1.75 MTD-734-0657
...
5
FORTIFLEX BEARING MTD-741-0267
...
6
22" BLADE MTD-742-0222
...
7
Throttle Control Wire 39" Lg. MTD-946-0630A
...
8
Lower Handle MTD-749-0928A-0637
...
9
3.5 H.P. Engine Tec. TVS 90-43261 MTD-NA
...
10
BALL BEARING MTD-941-0484
...
11
Spacer MTD-750-0434
...
12
BRACKET AS MTD-12935
...
xx
BRACKET ASSY-HDLE (Not Shown) MTD-12936
...
13
Hex Wash. Hd. B-Tap Scr. 5/16-18 x .50" Lg. MTD-710-0603
...
14
RETAINER STRIP MTD-14846
...
15
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
17
FLAP ASSEMBLY MTD-731-1029
...
18
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) (Not Shown) MTD-753-06761
...
19
Height Adjustment Plate MTD-787-01290A
...
20
Pivot Bar MTD-15262B
...
21
Front Spring Lever MTD-94832
...
22
Shoulder Bolt .50" Dia. MTD-738-0507B
...
23
Hex Nut 3/8-16 Thd. MTD-712-0798
...
24
BELL WASHER MTD-936-0356
...
25
CHUTE DEFLECTOR MTD-931-1034B
...
26
ADAPTER PLATE MTD-11130
...
27
PIVOT PIN MTD-711-0555
...
28
PUSH NUT MTD-726-0106
...
29
TORSION SPRING MTD-732-0253
...
30
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
31
HEX NUT 1/4-20 MTD-912-0287
...
32
L-Wash. 1/4" I.D. MTD-936-0329
...
33
22" Deck Ass'y. MTD-16302
...
34
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
36
CABLE TIE MTD-726-0192
...
37
Carriage Bolt 5/16-18 x 2 MTD-710-1174
...
xx
KIT-THROTTLE MTD-753-0361
...
39
Hairpin Cotter MTD-714-0104
...
40
Star Knob MTD-720-04072A
...
41
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
42
SPRING-LOCKOUT MTD-732-0401
...
43
Hex Cent. L-Bolt 3/8-24 x 2.00" Lg. MTD-710-0818
...
44
LOCK PIN MTD-711-0719
...
45
Hex Nut 3/8-24 Thd. MTD-712-0241
...
46
CLUTCH ASSEMBLY-BLADE BRAKE-PUSH MTD-717-0482
...
47
CLUTCH BLADE HOUSING ASS'Y. MTD-14300
...
48
SPRING MTD-732-0396
...
49
BALL BEARING MTD-941-0600
...
50
CLUTCH CONE MTD-14304
...
51
Brake Cup Cone MTD-14305
...
52
Clutch Housing MTD-14306
...
53
Hex Wash. TT-Tap Cl.-Scr. 1/4-20 x .75" Lg. MTD-710-0875
...
54
ADAPTER-FAN MTD-719-0256
...
55
BALL-BLOCK MTD-731-0520
...
56
EXTENSION SPRING MTD-732-0397
...
57
FLAT WASHER .687 x 1.060 x .032 MTD-736-0333
...
58
STEEL BALL MTD-741-0326
...
59
Throttle Cable MTD-946-1115
...
60
Bell-Wash. .400" I.D. x .88" O.D. MTD-736-0105
...
61
L-Wash. 3/8" I.D. MTD-736-0169
...
64
Bell-Wash. .400" I.D. x .88" O.D. MTD-736-0105
...
65
Hex Bolt 3/8-16 x 2" Lg. (Gr. 5) MTD-710-3144
...
66
Truss Mach. Hi-B Tap Scr. #12 x 1.50" Lg. MTD-710-0796
...
67
Cap Speed Nut 5/16" Rod MTD-726-0135
...
68
CONTROL PANEL HALF MTD-731-0523
...
69
CONROL DISC PIN MTD-731-0524
...
70
CLUTCH PANEL HALF MTD-731-0526
...
71
Throttle Control Lever MTD-931-0972
...
72
UPPER HANDLE MTD-749-0536
...
73
BAIL (LH) MTD-731-0609
...
75
CONTROL LABEL MTD-777-5166
...
76
Instruction Label Handle MTD-777-3453
...
xx
Hardware Pack MTD-8084-400-5
...
77
Bell-Wash. 5/16" I.D. MTD-736-0242
