MTD 11062-7 (1987) Push Walk-Behind Mower

Model: 11062-7 (1987)

Back To Assemblies

Save Part Not Listed?
product name

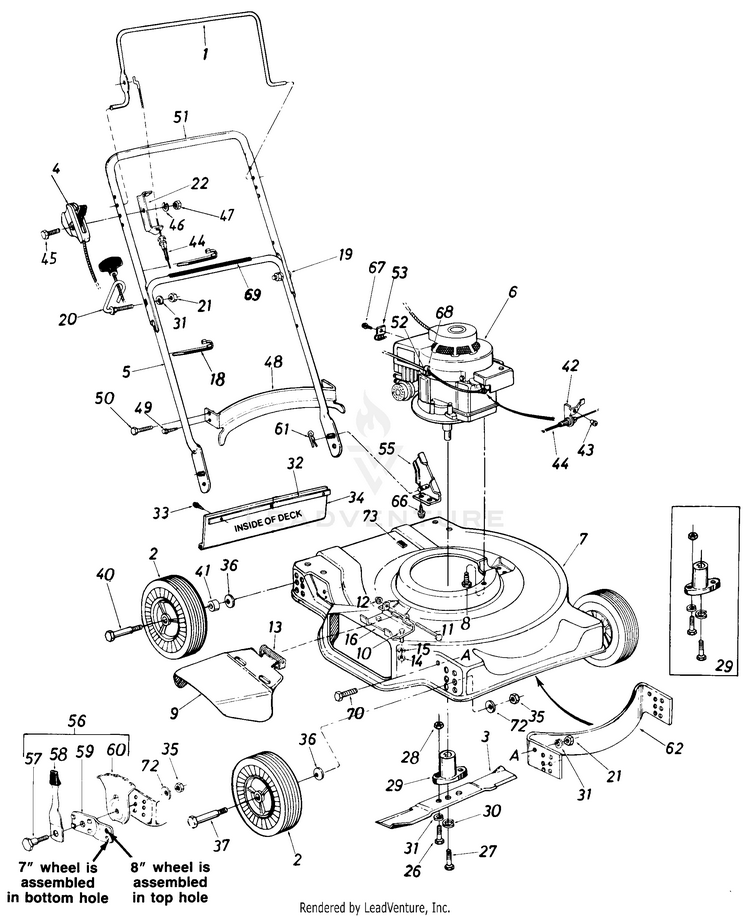

Rotary

...
...
1
HANDLE-CONTROL MTD-747-0500
...
2
WHEEL ASSEMBLY W/TIRE MTD-734-1177
...
3
22" BLADE MTD-942-0125B
...
4
Throttle Control Ass'y. Comp. MTD-946-0645A
...
5
Lower Handle MTD-749-0928A-0637
...
6
Engine MTD-NA
...
7
22" Deck Ass'y. MTD-16525
...
8
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
9
CHUTE DEFLECTOR MTD-931-1034B
...
10
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
11
PIVOT PIN MTD-711-0555
...
12
PUSH NUT MTD-726-0106
...
13
TORSION SPRING MTD-732-0253
...
14
HEX NUT 1/4-20 MTD-912-0287
...
15
L-Wash. 1/4" I.D. MTD-936-0329
...
16
ADAPTER PLATE MTD-11130
...
18
Cable Tie MTD-725-0157
...
19
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
20
OPE GUIDE BOLT MTD-710-0842
...
21
HEX NUT 5/16-18 MTD-712-3010
...
22
BRACKET-CA MTD-16201
...
26
Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5) Special MTD-710-0888
...
27
Hex Bolt 3/8-24 x 2.25" Lg. (Grade 5) MTD-710-0331
...
28
Hex Nut 5/16-24 Thd. MTD-912-3057
...
29
Blade Adapter Kit MTD-753-0348
...
30
L-Wash. 31/" I.D. H.D. MTD-736-0217
...
31
Lock Wash. 5/16" I.D. MTD-936-0119
...
32
RETAINER STRIP MTD-14846
...
33
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
34
FLAP ASSEMBLY MTD-731-0794
...
35
Hex Nut 3/8-16 Thd. MTD-712-0798
...
36
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
37
Front Axle Bolt MTD-738-0102
...
40
Rear Axle Bolt MTD-738-0102
...
41
UNKNOWN MTD-NA
...
42
BRACKET-CA MTD-14924
...
43
RIVET MTD-728-0171
...
44
Control Cable - 49" MTD-946-0552
...
45
SCREW 1/4-28 x 1.75 GR5 MTD-710-0559
...
46
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175
...
47
Hex Nut 1/4-28 Thd. MTD-712-0138
...
48
BAFFLE-20 MTD-16414
...
49
Truss Mach. B-Tap Scr. #10 x .50" Lg. MTD-710-0351
...
50
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
51
UPPER HANDLE MTD-749-0536
...
52
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
53
CLAMP-CONDUIT MTD-751-0369
...
55
BRACKET AS MTD-12935
...
xx
BRACKET ASSY-HDLE (Not Shown) MTD-12936
...
56
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) (Not Shown) MTD-753-06761
...
57
Shoulder Bolt .50" Dia. MTD-738-0507B
...
58
Front Spring Lever MTD-94832
...
59
Pivot Bar 7" wheel assembled in bottom hole, 8" wheel assembled in top hole MTD-15262B
...
60
Height Adjustment Plate MTD-787-01290A
...
61
Hairpin Cotter MTD-714-0104
...
62
Front Beafle MTD-16328
...
66
Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .50" Lg. MTD-710-0603
...
67
Hex Wash. Hd. AB-Tap Scr. #8 x .38" Lg. MTD-710-0227
...
68
CABLE CLAMP MTD-12894
...
69
LABEL MTD-777-5776
...
70
Hex Bolt 3/8-16 x .75" Lg. MTD-710-0216
...
72
BELL WASHER MTD-936-0356
...
73
PLUG MTD-731-0564
...
xx
Hardware Pack MTD-8062-400-7
