MTD 110204R (1990) Push Walk-Behind Mower

Model: 110204R (1990)

Save Part Not Listed?
product name

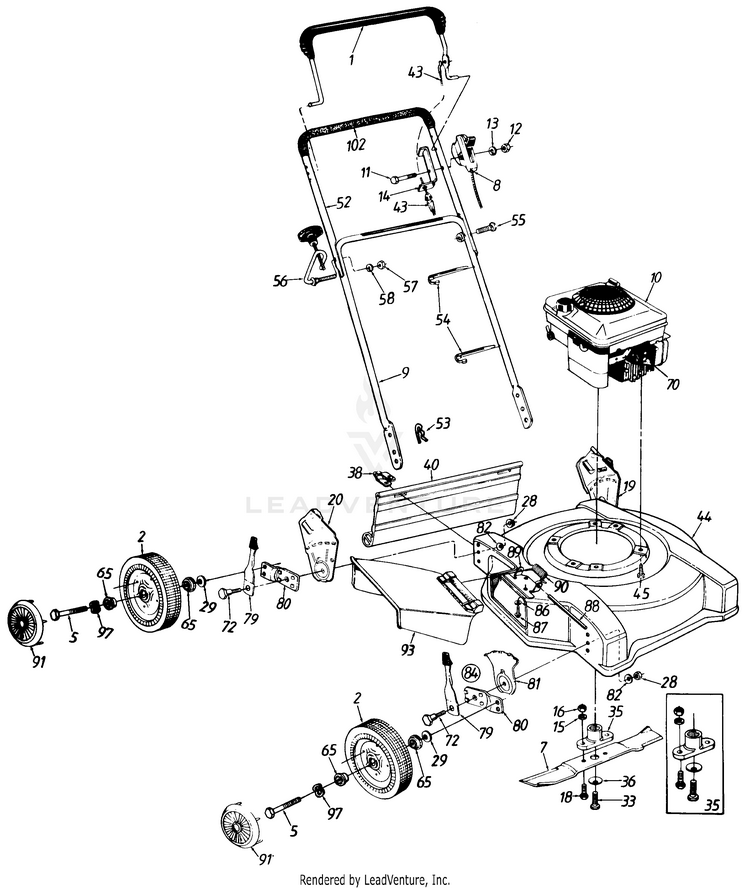

Rotary

...
...
1
HANDLE ASSEMBLY MTD-731-1135
...
2
Wheels with Ball Brgs.(Beige) (Brg. Part No. 741-0484) MTD-734-1517B
...
5
Axle Bolt MTD-738-0102
...
7
20" BLADE MTD-742-0520
...
8
THROTTLE CONTROL 58.8" MTD-946-0821A
...
9
Lower Handle MTD-749-0928A-0637
...
10
Engine MTD-NA
...
11
Hex Bolt 1/4-20 x 2" Lg. MTD-710-0501
...
12
HEX NUT 1/4-20 MTD-912-0287
...
13
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175
...
14
BRACKET-CA MTD-17174
...
15
L-Wash. 3/8" I.D. MTD-736-0169
...
16
Hex Nut 3/8-24 Thd. MTD-712-0241
...
18
SCREW 3/8-24 C 1.00 GR5 MTD-710-1055
...
19
Wheel Brkt. Ass'y. L.H. MTD-706-14642
...
20
Wheel Brkt. Ass'y. R.H. MTD-706-14641
...
28
Hex Nut 3/8-16 Thd. MTD-712-0798
...
29
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
33
Hex Bolt 7/16-20 x 1.5" Lg. MTD-710-0757
...
35
SPLINED BLADE ADAPTER KIT MTD-753-0485
...
36
BELL WASHER MTD-936-0453
...
38
HINGE CLIP MTD-17098P
...
40
FLAP ASSEMBLY MTD-731-1028
...
43
Control Cable MTD-946-0553
...
44
20" Deck Ass'y. MTD-706-14656
...
45
Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg. MTD-710-0654A
...
52
Upper Handle MTD-748-0756
...
53
Intern. Cot. Pin 5/16" Dia. MTD-714-0104
...
54
Cable Tie MTD-725-0157
...
55
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
56
SCREW-RECOIL HANDLE GUIDE MTD-710-0842B
...
57
HEX NUT 5/16-18 MTD-712-3010
...
58
Lock Wash. 5/16" I.D. MTD-936-0119
...
65
BALL BEARING MTD-941-0180
...
70
INSULATOR-SPARK PLUG MTD-735-0639
...
72
Shoulder Bolt .50" Dia. MTD-738-0507B
...
79
Front Spring Lever MTD-94832
...
80
Pivot Bar MTD-15262B
...
81
Height Adjustment Plate MTD-787-01290A
...
82
BELL WASHER MTD-936-0356
...
84
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) (Not Shown) MTD-753-06761
...
86
SPRING WASHER BELL MTD-736-0270
...
87
Hex Wash. Hd. Tap Scr. 1/4-20 x 5" Lg. MTD-710-0599
...
88
Hinge Pin MTD-747-0710A
...
89
PLATE-ADAPTER MTD-17032A
...
90
Torsion Spring MTD-932-0593
...
91
Hub Cap (Beige) MTD-731-0982C
...
93
CHUTE DEFLECTOR MTD-931-1034B
...
97
Wave Washer 53" I.D. MTD-736-0232
...
xx
FLAT WASHER .510 x .995 MTD-736-0272
...
102
Grip Foam (Optional) MTD-720-0295
