MTD 070-014 (1987) Push Walk Behind Mower

Model: 070-014 (1987)

Save Part Not Listed?
product name

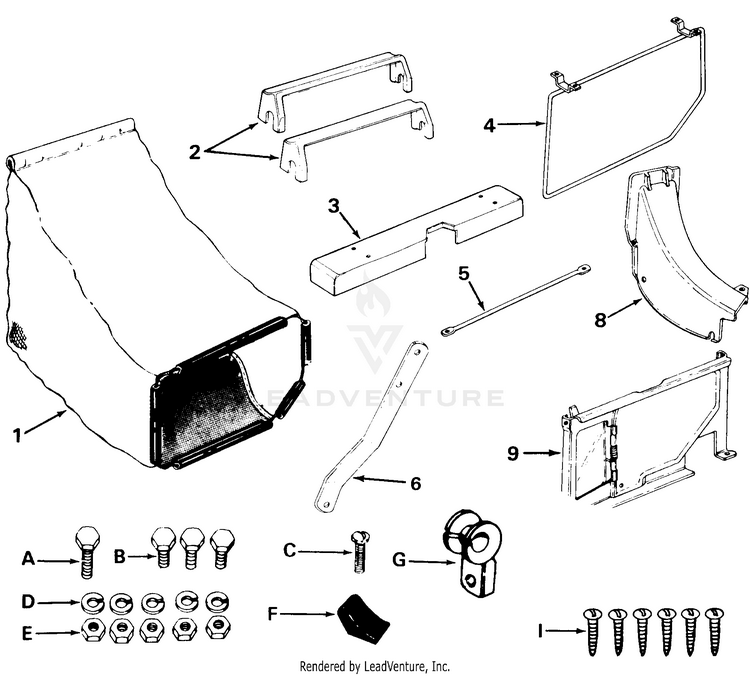

Grass Catcher Kit

...
...
1
Grass Bag MTD-764-0212
...
2
BAG HANDLE BLACK MTD-731-0801
...
3
FRAME-LOWER MTD-731-0807
...
4
FRAME ASSEMBLY MTD-16538
...
5
SUPPORT-UPR MTD-747-0526
...
6
BRACKET-PANEL SUP MTD-16129A-0637
...
8
CHUTE ASSY-TOP DISCH MTD-731-0733
...
9
PANEL ASSEMBLY-CATCHER MTD-16149
...
A
Hex Bolt 1/4-20 x 5/8" Lg.* MTD-710-0258
...
B
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
C
Truss Machine Screw 1/4-20x 3/4" Lg.* MTD-710-0225
...
D
L-Wash. 1/4" I.D. MTD-936-0329
...
E
HEX NUT 1/4-20 MTD-912-0287
...
F
CUP-DOOR MTD-720-0208
...
G
Rope Guide (Used on Extended rope Start (ERS) units only) MTD-719-0279
...
I
Truss Machine Self-Tap Screw 1.0" Lg. MTD-710-0969

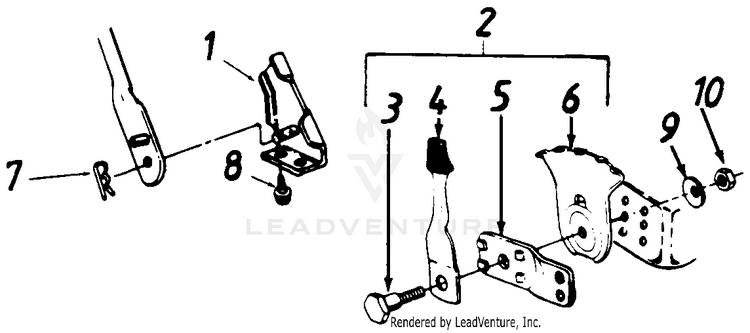

Parts

...
...
1
BRACKET AS MTD-12935
...
xx
BRACKET ASSY-HDLE (Not Shown) MTD-12936
...
2
FLAIL HOUSING ASS'Y. - COMP. MTD-14575
...
xx
Height Adj. Ass'y. Comp. (R.H.) (Not Shown) MTD-753-06761
...
3
Shoulder Bolt .50" Dia. MTD-738-0507B
...
4
Front Spring Lever MTD-94832
...
5
Pivot Bar MTD-15262B
...
6
Height Adjustment Plate MTD-787-01290A
...
7
Hairpin Cotter MTD-714-0104
...
8
Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .50" Lg. MTD-710-0603
...
9
BELL WASHER MTD-936-0356
...
10
Hex Nut 3/8-16 Thd. MTD-712-0798
...
xx
Rear Axle Bolt MTD-738-0102

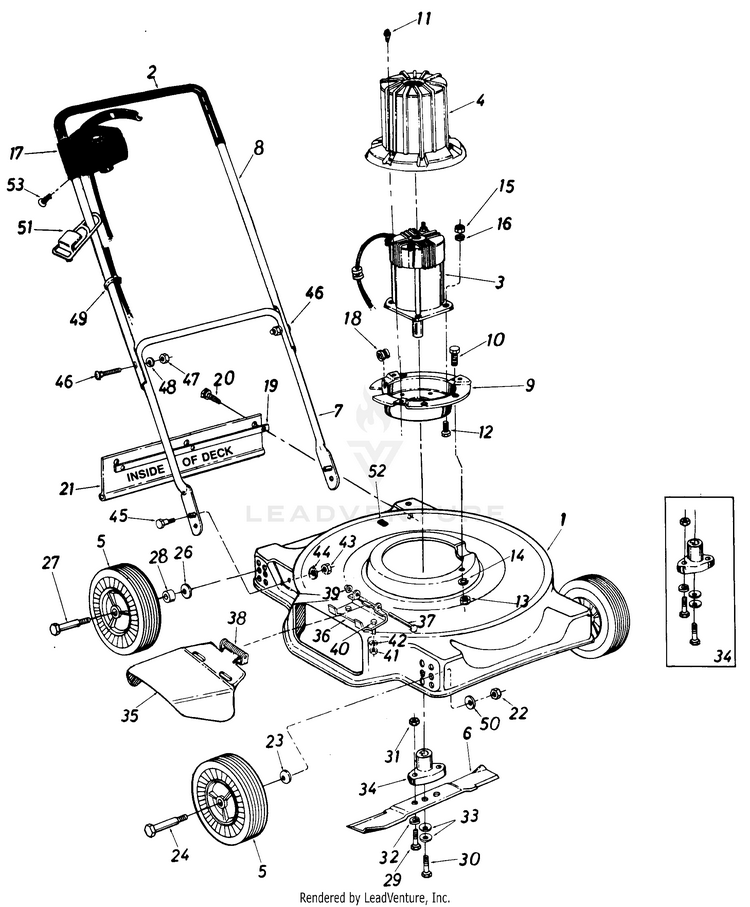

Parts

...
...
1
20" Deck Ass'y. MTD-15866
...
2
Grip MTD-718-0145
...
3
120V Electric Motor Briggs & Stratton 748001 (120 Volts, 8.0 Amps, At RPM 3200, 1000 Watts) MTD-NA
...
4
SHROUD MTD-731-0655
...
5
7 x 1.5-PLASTIC RIM MTD-734-0840
...
6
20" BLADE MTD-742-0123
...
7
Lower Handle MTD-749-0907B
...
8
Upper Handle MTD-749-0571
...
9
PLATE-ADAP MTD-15549
...
10
Hex Bolt 3/8-16 x 1" Lg. MTD-710-0514
...
11
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
12
SCREW 1/4-20 X1.00 GR5 MTD-710-0597
...
13
Hex Nut 3/8-16 Thd. MTD-712-0798
...
14
L-Wash. 3/8" I.D. MTD-736-0169
...
15
Hex Nut 1/4-20 Thd. MTD-712-0798
...
16
L-Wash. 1/4" I.D. MTD-936-0329
...
17
Control w/Cord MTD-725-0898
...
18
RESTRAINT-CORD MTD-725-0908
...
19
STRIP-RETA MTD-14836
...
20
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
21
FLAP ASSEMBLY MTD-731-1029
...
22
Hex Nut 3/8-16 Thd. MTD-712-0798
...
23
Bell-Wash. .400" I.D. x .88" O.D. MTD-736-0105
...
24
Shld. Bolt .498" Dia. x 1 .450" Lg. MTD-738-0213
...
26
Bell-Wash. .400" I.D. x .88" O.D. MTD-736-0105
...
27
SHOULDER SCREW .498 DI MTD-738-0509
...
28
Spacer .511" I.D. x .70" O.D. x.38" Lg. MTD-750-0515
...
29
Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5) MTD-710-0888
...
30
Hex Bolt 5/16-24 x .75" Lg. MTD-710-0157
...
31
Hex Nut 5/16-24 Thd. MTD-912-3057
...
32
Lock Wash. 5/16" I.D. MTD-936-0119
...
33
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
34
BLADE ADAPTER KIT MTD-753-0351
...
35
Chute Deflector Ass'y. Comp. MTD-15870
...
36
ADAPTER PLATE MTD-11130
...
37
PIVOT PIN MTD-711-0555
...
38
TORSION SPRING MTD-732-0253
...
39
PUSH NUT MTD-726-0106
...
40
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
41
HEX NUT 1/4-20 MTD-912-0287
...
42
L-Wash. 1/4" I.D. MTD-936-0329
...
43
HEX NUT 5/16-18 MTD-712-3010
...
44
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
45
Shld. Bolt .437" Dia. x .268" Lg. MTD-738-0296
...
46
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
47
HEX NUT 5/16-18 MTD-712-3010
...
48
Lock Wash. 5/16" I.D. MTD-936-0119
...
49
CABLE TIE MTD-726-0223
...
50
Bell-Wash. .39" I.D. x 1.13" O.D. MTD-736-0331
...
51
CORD RESTRAINT MTD-725-0899
...
52
PLUG MTD-731-0564
...
53
Truss Mach. AB-Tap Scr. MTD-710-0725
