MCE1640-A Murray - Murray 40cc 16" Chainsaw (2014)

Model: MCE1640-A

Save
 Part Not Listed?Part Not Listed?
product name

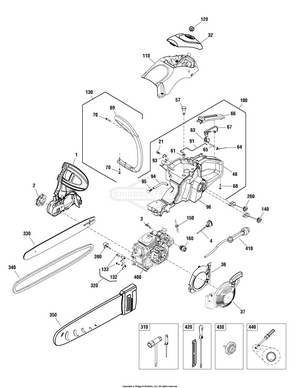

Body Group (MCE1640)

...
...
1
BRAKE BS-706669
...
2
EASY TENSION RATCHET BS-706698
...
3
SPRING BS-706762
...
4
SWITCH BS-706771
...
32
COVER-AIR CLEANER BS-706685
...
36
COVER-AIR GUIDE BS-706689
...
37
STARTER ASSEMBLY BS-706766
...
57
BALANCER BS-706655
...
66
COVER (Not a serviceable part. Order Ref. No. 100) BS-706690
...
100
HANDLE-REAR BS-706714
...
110
COVER BS-706683
...
120
KNOB-AIR CLEANER COVE BS-706729
...
130
HANDLE-FRONT (Includes Ref. Nos. 69 & 70) BS-706712
...
140
CAP-FUEL BS-706706
...
150
FILTER-FUEL BS-706709
...
160
MOUNT-VIBRATION BS-706751
...
260
CAP-OIL FILL BS-706663
...
310
KIT-TOOL BS-706776
...
320
BUMPER BS-706761
...
330
BAR BS-706657
...
340
CHAIN, 16 BS-706672
...
350
COVER BS-706686
...
390
CHAIN CATCH BS-706671
...
410
BULB-PRIMER BS-706744
...
420
FILE & GUIDE PACK, 5/ BS-706645
...
430
KIT-TOOL BS-706647
...
440
KIT-TOOL BS-706646

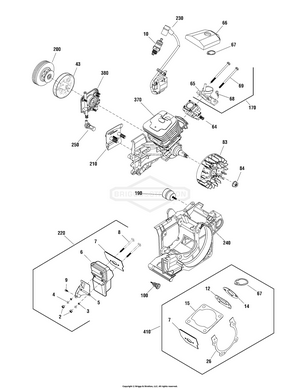

Engine Group (MCE1640)

...
...
10
SPARK PLUG BS-706759
...
43
CLUTCH BS-706678
...
64
CARBURETOR BS-706665
...
66
FILTER-AIR BS-706649
...
83
FLYWHEEL BS-706704
...
84
NUT, M8 BS-CS00175A
...
100
SPRING BS-706763
...
170
MANIFOLD-INTAKE BS-706719
...
190
MOUNT-VIBRATION BS-706753
...
200
CLUTCH CUP BS-706681
...
210
DAMPER ASSEMBLY BS-706696
...
220
MUFFLER BS-706732
...
230
MODULE-IGNITION BS-706716
...
240
BASE BS-706659
...
250
FILTER-OIL BS-706702
...
370
BLOCK-SHORT BS-706755
...
380
PUMP-OIL BS-706739
...
410
KIT-GASKET (Includes Ref. Nos. 7, 12, 14, 15, 26 & 67) BS-706722
...
...
...
