MTD M155-42 13AM775S058 (2016) Z-Series

Model: M155-42 13AM775S058 (2016)

Back To Assemblies
Save
 Part Not Listed?Part Not Listed?
product name

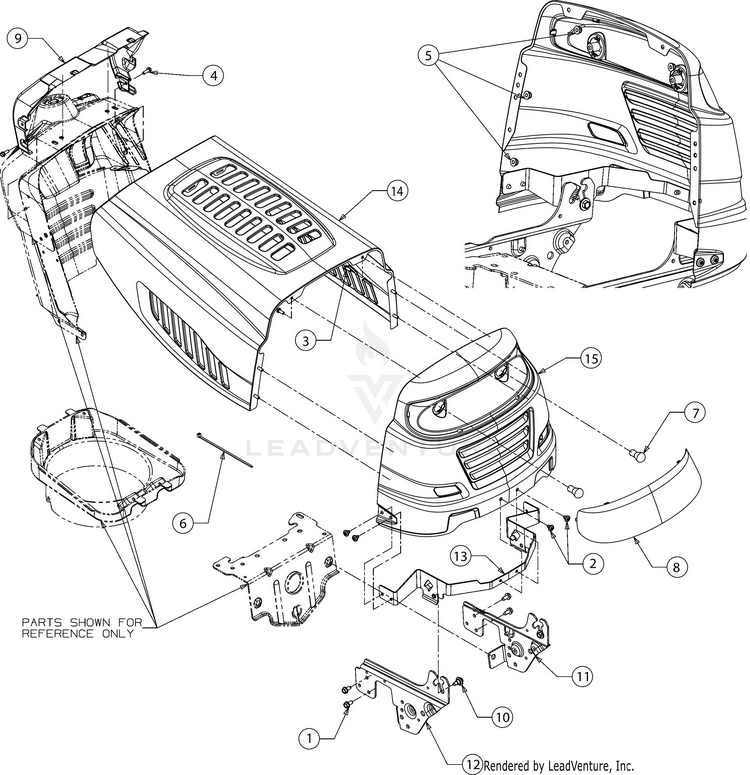

Hood & Grille

...
...
1
SCREW 5/16-18 x .750 MTD-710-04484
...
2
SCREW 5/16-18 x .375 MTD-710-04593
...
3
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
4
SCREW 1/4-15 x .750 MTD-710-0895
...
5
FLANGE LOCK NUT MTD-712-04064
...
6
7" CABLE TIE MTD-725-0157
...
7
MINIATURE LAMP-12V #1156 MTD-925-0963
...
8
GRILL LENS MTD-731-04949A
...
9
DASH COLLAR MTD-731-05078C
...
10
SHOULDER SCREW .43X.29X5/16-18 TT MTD-738-04091A
...
11
SUPPORT BRACKET (LH)(POWDER BLACK) MTD-783-05327B-0637
...
12
SUPPORT BRACKET (RH) MTD-783-05328B-0637
...
13
HOOD PIVOT BRACKET MTD-783-05454-0637
...
14
HOOD-5-STYLE *CHOOSE COLOR WHEN ORDERING* MTD-783-05683
...
15
GRILLE-1 STYLE *CHOOSE COLOR WHEN ORDERING* MTD-783-05685A
...
...
...
