Longlife by MTD 135-705-036 (1985) Lawn Tractor

Model: 135-705-036 (1985)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

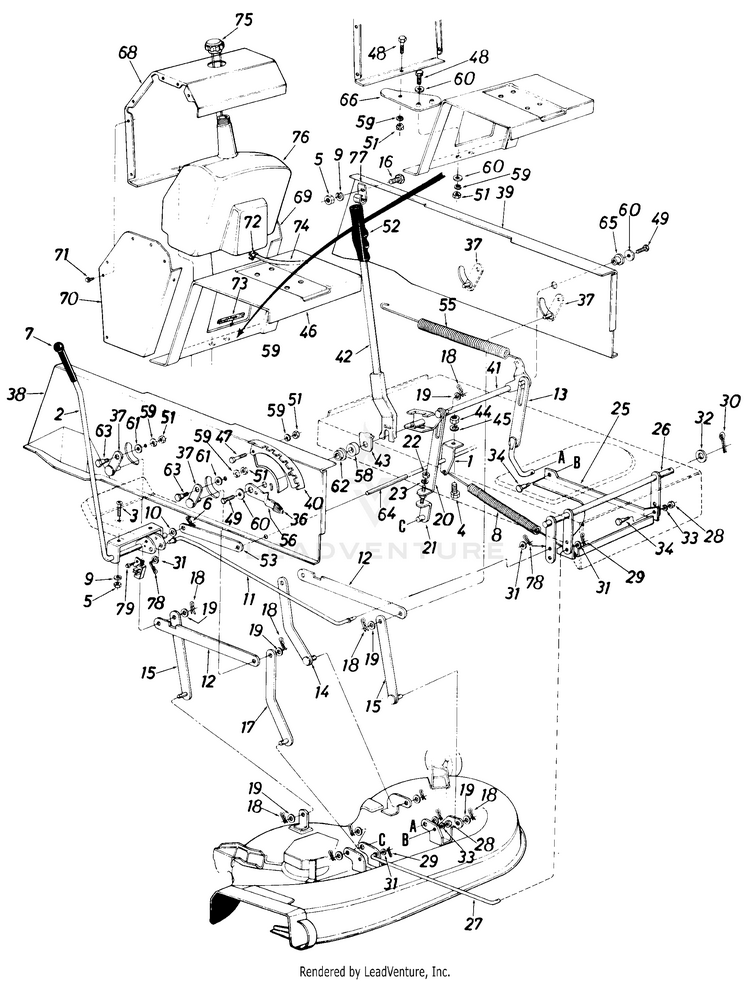

Parts04

...
...
1
Spring Hanger Bracket MTD-16181
...
2
Deck Engagement Lever Ass'y. MTD-16212
...
3
Truss Mach. Scr. 5/16-18 x .75" Lg. MTD-710-0323
...
4
Hex Bolt11/4-20 x .62" Lg. MTD-710-0258
...
5
HEX NUT 5/16-18 MTD-712-3010
...
6
Cotter Pin 3/32" Dia. x 1.00" Lg. MTD-714-0111
...
7
GRIP MTD-720-0143
...
8
SPRING MTD-732-0410
...
9
Lock Wash. 5/16" I.D. MTD-936-0119
...
10
FLAT WASHER .510 x .995 MTD-736-0272
...
11
Drive Deck Control Rod MTD-747-0491
...
12
CONNECTING ROD MTD-09735
...
13
Deck Lift Link Ass'y. MTD-16178
...
14
Deck Hanger Link Ass'y.-Rear L.H. MTD-16209
...
15
LINK ASSEMBLY- MTD-16216
...
16
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
17
Deck Hanger Link Ass'y.-Front R.H. MTD-16345
...
18
Inter. Cotter Pin 1/2" Dia. MTD-714-0101
...
19
Fl-Wash. .531 I.D. x .93" O.D. MTD-736-0192
...
20
DECK LIFT LINK (POWDER BLACK) MTD-14802A-0637
...
21
LINK ASSEMBLY-LOWER MTD-16342
...
22
Jam Nut, 3/8-16 MTD-912-3008
...
23
L-Wash. 3/8" I.D. MTD-736-0169
...
25
BRACE-DIAG MTD-16214
...
26
STABILIZER SHAFT ASS'Y MTD-16234
...
27
Stabilizer Rod MTD-711-0777
...
28
Hex Nut 3/8-16 Thd. MTD-712-0798
...
29
Inter. Cotter Pin 5/16" Dia. MTD-714-0104
...
30
Cotter Pin 1/8" Dia. x 1.25" Lg. MTD-714-0470
...
31
Fl-Wash. MTD-936-0117
...
32
Fl-Wash. .635" I.D. x 1.12" O.D. MTD-736-0156
...
33
L-Wash. 3/8" I.D. MTD-736-0169
...
34
SHOULDER BOLT MTD-938-0258
...
36
KNOB-HGT ADJ-BLACK MTD-08540
...
37
LINK ASSEMBLY- MTD-09721
...
38
FRAME-SIDE (RH) MTD-14602G-0637
...
39
L.H. SIDE FRAME MTD-14603
...
40
Index Brkt. (Deck Lift) MTD-14633
...
41
LIFT SHAFT ASS'Y. MTD-14641
...
42
Lift Handle Brkt. Ass'y. MTD-14645
...
43
Retainer Wash. Lift Handle MTD-14654
...
44
HEX NUT 1/4-20 MTD-912-0287
...
45
L-Wash. 1/4" I.D. MTD-936-0329
...
46
Hitch Plate MTD-16223
...
47
UNKNOWN MTD-NA
...
48
Hex Bolt 5/16-18 x 1.00" Lg. (Grade 5) MTD-710-0376
...
49
Screw, 5/16-18 x .625 MTD-710-0604A
...
51
HEX NUT 5/16-18 MTD-712-3010
...
52
LIFT HANDLE GRIP MTD-720-0157
...
53
Link 1.0" x 7.5" x .19 MTD-16369
...
xx
Cable Tie MTD-726-0197
...
55
EXTENSION SPRING MTD-932-0307A
...
56
HEIGHT ADJUSTMENT LEVER MTD-732-0412
...
58
RUBBER WASHER MTD-735-0216
...
59
Lock Wash. 5/16" I.D. MTD-936-0119
...
60
Fl-Wash. .344" I.D. x 1.125" O.D. x .125 MTD-736-0231
...
61
Fl-Wash. .344" I.D. x .62" O.D. x .063 MTD-736-0264
...
62
FLANGE WASHER MTD-736-0341
...
63
Shld. Bolt .437" Dia. x .180 MTD-738-0140
...
64
ROD-RUNNING BOARD MTD-738-0526
...
65
Flange Bearing .632 ID MTD-741-0487C
...
66
HITCH BAR MTD-16315
...
68
GAS TANK HOUSING MTD-16238
...
69
SIDE PANEL L.H. GAS TANK MTD-16239
...
70
SIDE PANEL R.H. GAS TANK MTD-16240
...
71
Truss Mach. B-Tapp Scr. #10 x .50" Lg. MTD-710-0351
...
72
HOSE CLAMP MTD-726-0207
...
73
Trim Strip-5" Lg. MTD-731-0511
...
74
FUEL HOSE 1/4-24" MTD-751-22813-24
...
75
Gas Tank Cap MTD-951-0226A
...
76
GAS TANK MTD-751-0403
...
77
CLAMP MTD-726-0175
...
78
Cotter Pin 3132" Dia. x .75" Lg. MTD-714-0507
...
79
Hex Wash. Hd. Tap Scr. 1/4 x.50" Lg. MTD-710-0599
...
...
...
...
...
