Lawnflite by MTD 136-504-059 Lawn Tractor

Model: MTD Lawnflite 136-504-059

Back To Assemblies

Save Part Not Listed?
product name

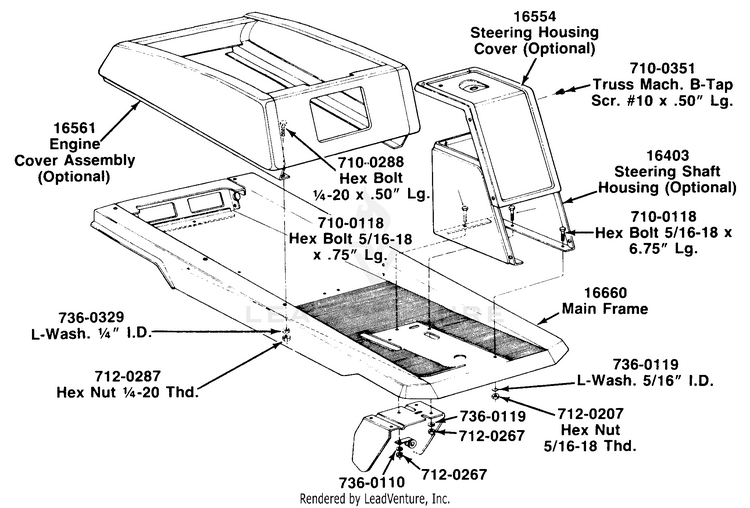

Parts Style A

...
...
16561
MTD-16561
...
736-0329
L-Wash. 1/4" I.D. MTD-936-0329
...
712-0287
HEX NUT 1/4-20 MTD-912-0287
...
710-0118
USE 710-3008 SCREW-HEX 5/16 X MTD-710-0118
...
710-0288
MTD-710-0288
...
736-0110
L-Wash. 5/16" I.D. MTD-736-0110
...
712-0267
HEX NUT 5/16-18 MTD-712-3010
...
712-0267
HEX NUT 5/16-18 MTD-712-3010
...
736-0119
Lock Wash. 5/16" I.D. MTD-936-0119
...
16554
Variable Speed Torque Brkt. Ass'y. MTD-16554
...
712-0207
SPEED NUT MTD-712-0207
...
16660
Rear Fender MTD-16660
...
736-0119
Lock Wash. 5/16" I.D. MTD-936-0119
...
710-0351
SCREW-TRUSS MACH MTD-710-0351
...
7100118
HEX SCREW 5/16-18 .78 GR2 MTD-710-0118
...
16403
HOUSING-STEER SHFT MTD-16403
