product name

Lawnflite Mdl 995 Garden Tractor

Model: Lawnflite Mdl 995

Back To Assemblies

Save Part Not Listed?
product name

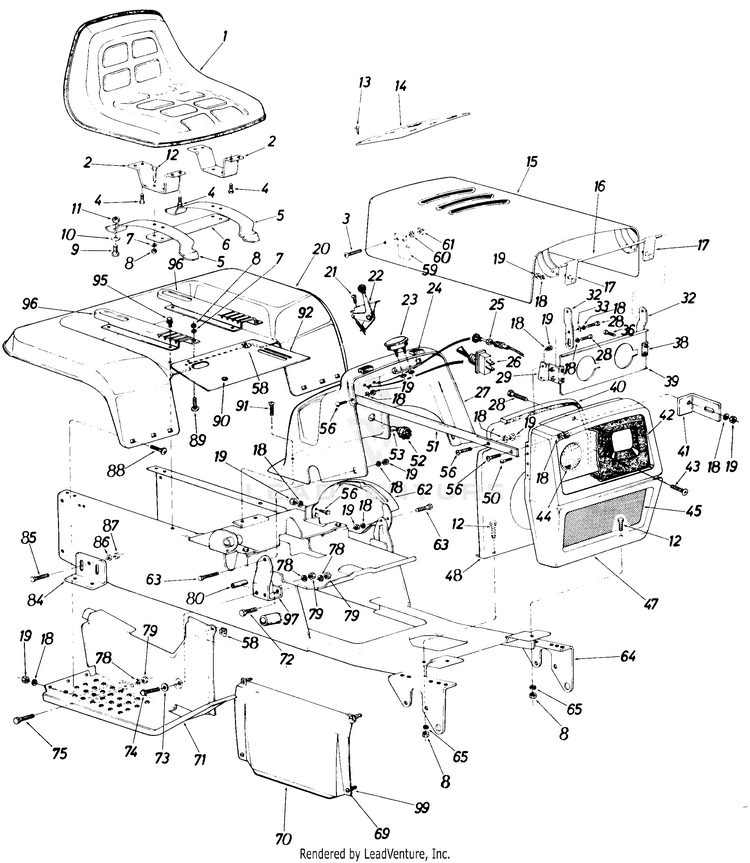

Hydrostatic

...
...
1
Seat Ass'y. Comp. MTD-757-0286
...
2
BRACKET-SE MTD-14225
...
3
Truss Hd. Mach. Scr. #10-24 x.38" Lg. MTD-710-0192
...
4
Hex Wash. Hd. Self-Tap Scr. 3/8-16 x .75" Lg. MTD-710-0623
...
5
SPRING-SEA MTD-13123
...
6
Seat Support Plate MTD-13214
...
7
Lock Wash. 5/16" I.D. MTD-936-0119
...
8
HEX NUT 5/16-18 MTD-712-3010
...
9
SCREW 1/2-13 x .75 MTD-710-0689
...
10
Fl-Wash. .531 I.D. x .930 O.D. MTD-736-0160
...
11
Hex Lock Nut, 1/2-13 Thread MTD-912-0384
...
12
Hex Scr. 5/16-18 x .75" Lg. MTD-710-0118
...
13
SCREW #10-16 x .500 MTD-710-0697
...
14
COVER-DASH PANEL MTD-731-0384
...
15
HOOD ASS'Y. MTD-13472
...
16
ROD MTD-747-0231
...
17
HOOD HINGE ASS'Y. MTD-13581
...
18
L-Wash. 1/4" I.D. MTD-936-0329
...
19
HEX NUT 1/4-20 MTD-912-0287
...
20
Rear Fender MTD-13106
...
21
Fl-Hd. Truss Scr. #10 x .62" Lg. MTD-710-0721
...
22
Throttle Control MTD-746-0342
...
23
Ammeter MTD-925-3141
...
24
Bumper, Rubber MTD-735-0199A
...
25
CONTROL-CHOKE MTD-746-0343
...
26
TOGGLE SWITCH (SINGLE) MTD-925-1756
...
27
DASH PANEL MTD-731-0463
...
28
Hex Scr. 1/4-20 x .62" Lg. MTD-710-0258
...
29
BRACKET HO MTD-13689
...
32
HINGE ROD SUPPORT MTD-13585
...
33
Fl-Wash. .250 I.D. x 1.25 O.D. MTD-736-0211
...
36
HEX CAP SCREW 1/4-20 x .375 GR5 MTD-710-0294
...
38
BRACKET HO MTD-13690
...
39
HEAD LAMP RETAINER MTD-13687
...
40
STRIP-FOAM MTD-722-0136
...
41
Heat Shield Brkt. MTD-13724
...
42
BEZEL-HEADLAMP MTD-731-0465
...
43
Truss Mach. Scr. #10-24 x .50" Lg. MTD-710-0425
...
44
Head Light MTD-925-0222
...
45
GRILLE INSERT MTD-13730
...
47
GRILLE MTD-15667
...
48
HEAT SHIELD MTD-13569
...
50
Truss Mach. Scr. 1/4-20 x .75" Lg.* MTD-710-0286
...
51
GRILLE STRAP MTD-13725
...
52
Ignition Switch MTD-925-0267B
...
53
Key MTD-925-0201
...
56
Hex Bolt 1/4-20 x .75" Lg. MTD-710-3015
...
58
Clip-On Receptacle MTD-726-0169
...
59
SPRING-HOOD MTD-732-0391
...
60
L-Wash. #10 MTD-736-0722
...
61
Hex Nut #10-24 MTD-712-0121
...
62
GUIDE-SPEE MTD-13528
...
63
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
64
FRAME ASS'Y. MTD-13509
...
65
Bell-Wash. 5/16" Scr. MTD-736-0242
...
69
1/4-Turn Stud MTD-726-0167
...
70
SIDE PANEL MTD-13525
...
71
FOOT STEP PANEL ASS'Y. (RH) MTD-13576
...
xx
FOOT STEP PANEL ASS'Y. L.H. (Not Shown) MTD-13577
...
72
Hex Bolt 3/8-16 x 1" Lg. MTD-710-0514
...
73
Fl-Wash. MTD-936-0117
...
74
HEX SCREW 3/8-16 x 3.00 GR2 MTD-710-0194
...
75
Hex Bolt 3/8-16 x 1" Lg. MTD-710-0514
...
78
L-Wash. 3/8" Scr. MTD-736-0169
...
79
Hex Nut 3/8-16 Thd.* MTD-712-0798
...
80
SPACER MTD-750-0261
...
84
BRACKET-SU MTD-13066
...
85
Rd. Hd. Rib Neck Scr. 3/8-24 MTD-710-0617
...
86
L-Wash. 3/8" Scr. MTD-736-0217
...
87
Hex Nut 3/8-24 Thd. * MTD-712-0241
...
88
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
89
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
90
BUSHING MTD-731-0405
...
91
SCREW-FL HD TORXB 1/4X20 x .6 MTD-710-0618
...
92
TRANSMISSION COVER MTD-13529
...
95
Hex Wash. Hd. Scr. 5/16-18 x .75" MTD-710-1260A
...
96
BRACKET-AD MTD-13124
...
97
DASH PANEL MTG. BRKT. MTD-13536
...
99
Retainer MTD-726-0168
