product name

Lawnflite Mdl 995 Garden Tractor

Model: Lawnflite Mdl 995

Back To Assemblies

Save Part Not Listed?
product name

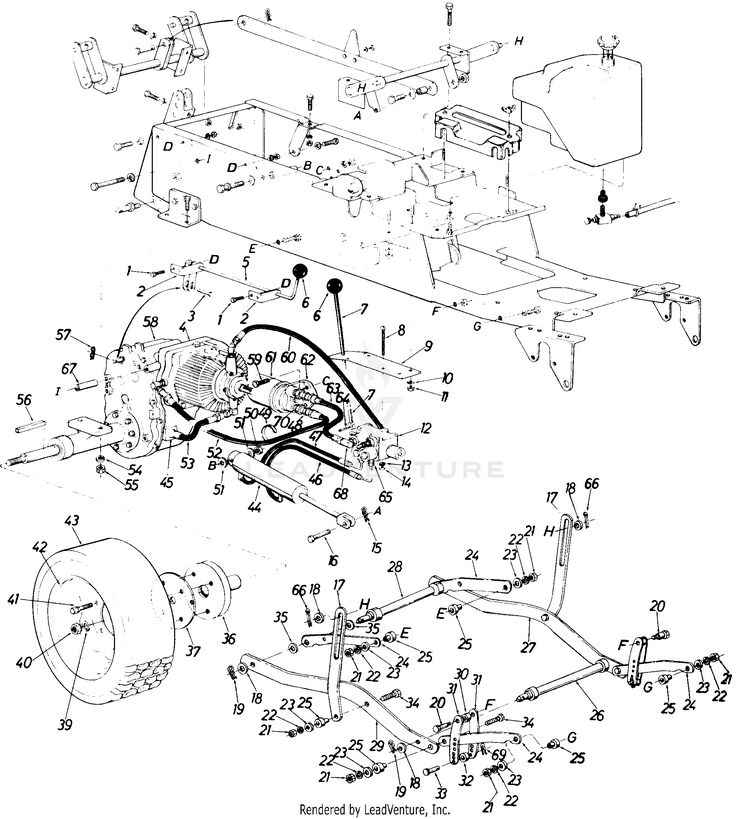

Hydrostatic

...
...
1
Hex Scr. 1/4-20 x .75" Lg. MTD-710-0237
...
2
BRACKET-HI MTD-13524
...
3
CLEVIS PIN .25 x 1.00 MTD-711-0684
...
4
PUMP MTD-717-0344
...
5
HANDLE ASSEMBLY MTD-13532
...
6
Shfter Knob MTD-931-0009A
...
7
HANDLE ASSEMBLY MTD-13531
...
8
SCREW-TRUSS MACH 1/4-20 x 3.0 MTD-710-0105
...
9
VALVE BASE PLATE MTD-13534
...
10
Lock Wash. 5/16" I.D. MTD-936-0119
...
11
HEX NUT 5/16-18 MTD-712-3010
...
12
VALVE MTD-927-0200
...
13
L-Wash. 1/4" I.D. MTD-936-0329
...
14
HEX NUT 1/4-20 MTD-912-0287
...
15
Hairpin Cotter 1/2" Dia. MTD-714-0101
...
16
CLEVIS PIN MTD-711-0308
...
17
DECK LINK MTD-13570
...
18
Fl-Wash. .62" I.D. x 1.12" O.D. MTD-736-0156
...
19
Hairpin Cotter MTD-714-0147
...
20
Shoulder Screw, .50 x .66 MTD-938-0148
...
21
Hex Nut 3/8-24 Thd.* MTD-712-0241
...
22
L-Wash. 3/8" Scr. H.D. MTD-736-0217
...
23
Fl-Wash. .38 I.D. x 1.00" O.D. MTD-736-0258
...
24
ARM-LIFT MTD-13151
...
25
SHOULDER SPACER MTD-748-0241
...
26
Cross Shaft Ass'y. Front MTD-13729
...
27
LIFT ARM LINK MTD-13139
...
28
SHAFT ASSEMBLY MTD-13728
...
29
LIFT ARM LINK MTD-13139
...
30
COLLAR 1/2 x 1.00 x .320 MTD-711-0146
...
31
BRACKET-IN MTD-13545
...
32
Spacer.38" I.D. x 1.00" O.D. x .320 MTD-711-0242
...
33
Pin, Clevis, .375 x .969 HT MTD-711-04722
...
34
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
35
Wave Washer MTD-936-0167
...
36
REAR WHEEL HUB ASS'Y. MTD-13572
...
37
PLATE-HUB MTD-13574A-0637
...
39
WASHER MTD-936-0364
...
40
HEX NUT INS L 3/4-10 MTD-912-0288
...
41
BOLT 1/2-20 x .875 GR2 MTD-710-0470
...
42
WHEEL ASSEMBLY W/O TIRE COLOR MTD-734-0935
...
43
WHEEL ASSEMBLY W/TIRE 27 x 9.50 XCOLOR MTD-734-0934
...
xx
TIRE ONLY 27 x 9.50 MTD-734-0397
...
xx
Air Valve MTD-734-0936
...
44
CYLINDER-HYDRO MTD-727-0159
...
45
90 DEG HYDRO FITTING MTD-727-0220
...
46
HOSE-VALVE TO CYL MTD-727-0219
...
47
HOSE-VALVE TO CYL MTD-727-0219
...
48
REDUCER MTD-727-0222
...
49
Cable Tie MTD-725-0157
...
50
NUT MTD-712-3029
...
51
Fl-Wash. .50" I.D. x 1.25 O.D. MTD-736-0179
...
52
HOSE-FILTER RETURN MTD-727-0217
...
53
TUBE ASSEMBLY-PUMP MTD-749-0309
...
54
L-Wash. 3/8" Scr. MTD-736-0217
...
55
Hex Nut 3/8-16 Thd.* MTD-712-0798
...
56
Sq. Key 1/4" x 1/4" x 2.00" MTD-914-0114
...
57
Hairpin Cotter 1/4" Dia. MTD-714-0104
...
58
Peerless Transaxle (See Breakdown) MTD-NA
...
59
Hex Scr. 5/16-18 x 1.25" Lg. * MTD-710-0528
...
60
HOSE-PUMP TO VALVE MTD-727-0167
...
61
FILTER MTD-727-0162
...
62
BASE-FILTER MTD-727-0163
...
63
HOSE-VALVE TO FILTER MTD-727-0218
...
64
Spring Pin Spiral 118" Dia. x .81" Lg. MTD-715-0129
...
65
ADAPTER-FLARE MTD-727-0187
...
66
Cotter Pin 1/8" Dia. x 1.00" Lg. * MTD-714-0115
...
67
SPACER MTD-750-0417
...
68
ADAPTER-90 DEGREE MTD-727-0175
...
69
Hairpin Cotter MTD-714-0145
...
70
REDUCER MTD-727-0222
