product name

Lawnflite Mdl 995 Garden Tractor

Model: Lawnflite Mdl 995

Back To Assemblies

Save Part Not Listed?
product name

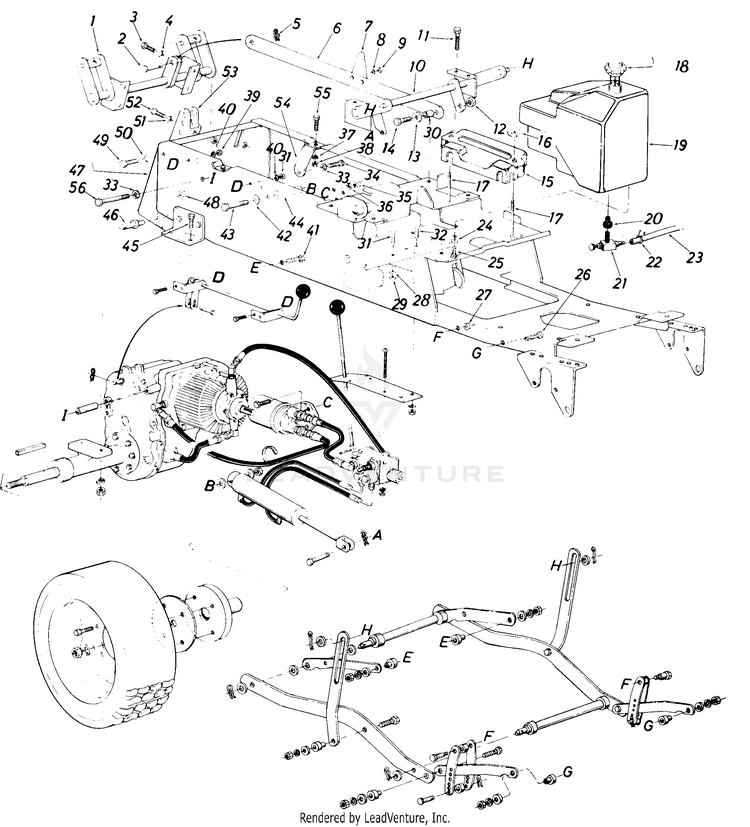

Hydrostatic

...
...
1
LIFT SHAFT-RR MTD-13135-0637
...
2
Clevis Pin MTD-711-0654
...
3
Hex Scr. 3/8-16 x 1.00" Lg. Grade 5 MTD-710-0514
...
4
L-Wash. 3/8" Scr. H.D. MTD-736-0217
...
5
Cotter Pin 1/8" Dia. x 1.25" Lg. * MTD-714-0470
...
6
BAR ASSEMBLY-P MTD-13709
...
7
INDICATOR MTD-13535
...
8
Lock Wash. 5/16" I.D. MTD-936-0119
...
9
HEX NUT 5/16-18 MTD-712-3010
...
10
LIFT SHAFT ASS Y. MTD-13501
...
11
HEX SCREW WASH HD 3/8-24X7/8 MTD-710-0649
...
12
Hex Cent. L-Nut 1/2-20 Thd. MTD-712-0239
...
13
Fl-Wash. MTD-736-0179
...
14
HEX SCREW 1/2-20 x 1.25 MTD-710-0504
...
15
BATERY COVER MTD-731-0707
...
16
Wing Nut 1/4-20 Thd. MTD-912-0113
...
17
HOLD DOWN BATTERY ROD MTD-911-0222A
...
18
Gas Tank Cap MTD-951-0226A
...
19
GAS TANK ASS'Y. MTD-751-0243
...
20
BUSHING MTD-935-0149
...
21
Fuel Shut-Off Valve with Screen MTD-951-0171
...
22
Gas Line Clamp 7/16" MTD-726-0184
...
23
Gas Line 30" Lg. MTD-731-0470
...
24
SPRING WASHER BELL MTD-736-0270
...
25
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
26
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
27
Hex Nut 3/8-16 Thd. MTD-712-0798
...
28
L-Wash. 3/8" Scr. MTD-736-0169
...
29
Hex Nut 3/8-16 Thd. MTD-712-0798
...
30
SLEEVE MTD-950-0336
...
31
Hex Bolt 3/8-16 x 1" Lg. MTD-710-0514
...
32
Hex Scr. 5/16-18 x .75" Lg. MTD-710-0118
...
33
L-Wash. 1/2" Scr. MTD-736-0921
...
34
SCREW 1/2-13 x 1.25 GR5 MTD-710-0474
...
35
HEX NUT 5/16-18 MTD-712-3010
...
36
Lock Wash. 5/16" I.D. MTD-936-0119
...
37
L-Wash. 3/8" Scr. H.D. MTD-736-0217
...
38
Hex Nut 3/8-16 Thd. MTD-712-0798
...
39
HEX NUT 1/4-20 MTD-912-0287
...
40
L-Wash. 1/4" I.D. MTD-936-0329
...
41
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
42
Fl-Wash. .50" I.D. x 1.25 O.D. MTD-736-0179
...
43
Hex Scr. 1/2-20 x 3-1/2" Lg. Grade 5 MTD-710-0515
...
44
SPACER MTD-750-0443
...
45
Hex Scr. 3/8-16 x 1.75" Lg. MTD-710-0347
...
46
CLEVIS PIN LINK MTD-711-0497
...
47
HITCH PLATE MTD-13196-0637
...
48
Hex Cent. L-Nut 5/8-18 Thd. MTD-712-0923
...
49
Hex Scr. 3/8-16 x .75" Lg. Grade 5 MTD-710-0216
...
50
L-Wash. 3/8" Scr. MTD-736-0169
...
51
L-Wash. 3/8" Scr. H.D. MTD-736-0217
...
52
Hex Scr. 3/8-16 x .75" Lg. Grade 5 MTD-710-0216
...
53
Hitch Brkt. MTD-13026-0637
...
54
Transmission Brace MTD-13530
...
55
Hex Bolt 3/8-16 x 1" Lg. MTD-710-0514
...
56
HEX SCREW 1/2-13 x 2.75 MTD-710-0490
