Lawnflite Mdl 995 Garden Tractor

Model: Lawnflite Mdl 995

Back To Assemblies

Save Part Not Listed?
product name

Hydrostatic

...
...
1
Steering Wheel Cap MTD-931-0220
...
2
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
3
SPRING WASHER BELL MTD-736-0270
...
4
STEERING WHEEL MTD-731-0356
...
5
TUBE-STEER MTD-750-0362
...
6
WASHER MTD-736-0296
...
7
Wave Wash. .660 I.D. x .88 O.D. MTD-736-0174
...
8
BALL BEARING MTD-741-0138
...
9
STEERING COLUMN ASSEMBLY MTD-13515-0637
...
10
DASH PANEL BASE PLATE ASS'Y MTD-13586
...
11
Hex Self-Tap Scr. 3/8-16 x .75" Lg. MTD-710-0623
...
12
Hex Scr. 3/8-16 x 1.50" Lg. MTD-710-0344
...
13
Hex Bolt 3/8-16 x 1" Lg. MTD-710-0514
...
14
Hx Wash Hd. Scr. 3/8-16 x 1.25" MTD-710-0502A
...
15
SHIELD-DUS MTD-13547
...
16
BRACKET-PI MTD-13032
...
17
L-Wash. 3/8" Scr. MTD-736-0169
...
18
Hex Nut 3/8-16 Thd. MTD-712-0798
...
19
Pivot Bar Ass'y. MTD-13008
...
20
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
21
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
22
Drag Link End MTD-923-0179
...
23
AXLE ASSEMBLY- MTD-13001
...
24
DRAG LINK MTD-747-0294
...
25
NUT MTD-712-3029
...
26
L-Wash. 1/2" Scr. MTD-736-0921
...
27
TIE ROD MTD-747-0279
...
28
AXLE ASSEMBLY- MTD-13002
...
29
Dust Cover MTD-731-0556
...
30
COTTER PIN-3/16 DIA x 1.50 MTD-714-0142
...
31
FLAT WASHER MTD-936-0259
...
32
WHEEL ASSEMBLY 18X6.50 MTD-734-1221
...
xx
FRONT WHEEL RIM ONLY MTD-734-0787
...
xx
Front Wheel Tire Only MTD-734-0294
...
xx
TUBELESS VALVE MTD-934-0255
...
33
Bearing MTD-931-0374
...
34
FLAT WASHER MTD-936-0259
...
35
Grease Fitting MTD-737-0146
...
36
Hex Nut 3/8-16 Thd. MTD-712-0798
...
37
L-Wash. 3/8" Scr. MTD-736-0169
...
38
Dust Cover MTD-931-0349
...
39
See Ref. No. 16 MTD-NA
...
40
Screws 3/8-16X2.5 MTD-710-0859
...
41
Flange Brg. w/Flats .75" I.D. MTD-941-0490
...
42
SPACER MTD-750-0333
...
43
ARM-STEERI MTD-13132
...
44
BEVEL GEAR MTD-948-0238
...
45
STEERING SHAFT GEAR MTD-938-0342
...
46
Hex Scr. 3/8-16 x 1.50" Lg. MTD-710-0344
...
47
L-Wash. 3/8" Scr. MTD-736-0169
...
48
Fl-Wash. .406 I.D. x 1.25" O.D. MTD-736-0133
...
49
L-Wash. 3/8" Scr.* MTD-736-0169
...
50
Hex Scr. 3/8-16 x .75" Lg. MTD-710-0216
...
51
Nylon Hex Scr. 3/8-16 x 1.25" Lg. MTD-710-0670
...
52
STEERING SHAFT MTD-738-0408
...
53
Jam Nut, 3/8-16 MTD-912-3008
...
54
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
55
Hex Ins. L-Nut 1/2-20 Thd. MTD-712-0239
...
56
Hex Flange Bearing Bronze .625" I.D. MTD-948-0227A
...
57
Pinion Gear MTD-948-0237
...
58
Fl-Wash. 3/8" Dia. MTD-736-0264
...
59
Hex Cent. L-Nut 5/16-24 Thd. MTD-712-0237
...
60
SPACER MTD-13539
...
61
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
62
Hex Nut 3/8-24 Thd. MTD-712-0241

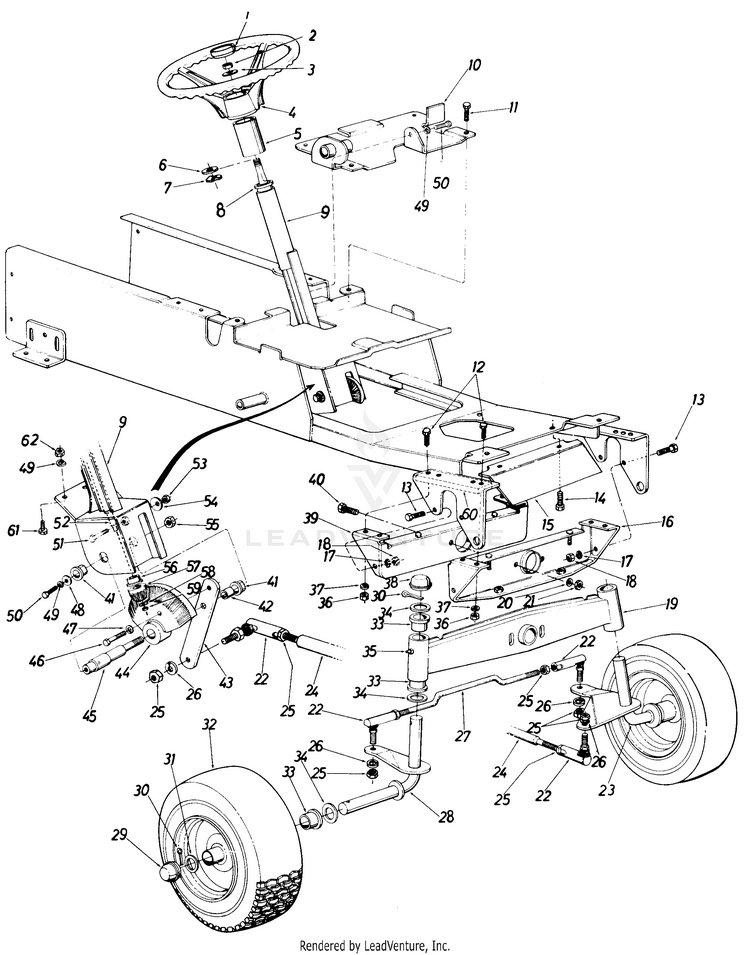

Schematic Image Zoomed
