Lawnflite Mdl 842 Garden Tractor

Model: Lawnflite Mdl 842

Back To Assemblies

Save Part Not Listed?
product name

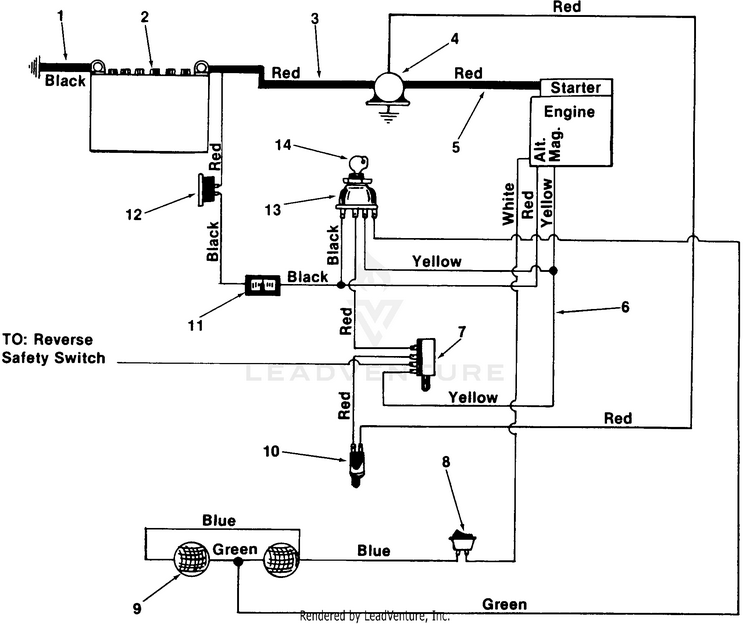

Electrical

...
...
1
6 GA. BLACK WIRE (Black-Negative) MTD-725-0996
...
2
BATTERY MTD-725-0453
...
3
Electric Wire (Red Positive) MTD-725-0563
...
4
Solenoid MTD-925-0771
...
5
WIRE ASSEMBLY (RED W/BOOT) (#6 X14) MTD-629-0705
...
6
WIRE HARNESS MTD-725-1021
...
7
Safety Switch (P.T.O.) MTD-925-0465A
...
8
Light Switch MTD-925-0634
...
9
Head Light MTD-925-0222
...
10
SWITCH (Clutch) MTD-925-0268
...
11
Ammeter MTD-925-0925
...
12
CIRCUIT BREAKER MTD-753-0685
...
13
Ignition Switch MTD-925-0267B
...
14
Key MTD-925-0201
