Lawnflite Mdl 842 Garden Tractor

Model: Lawnflite Mdl 842

Save Part Not Listed?

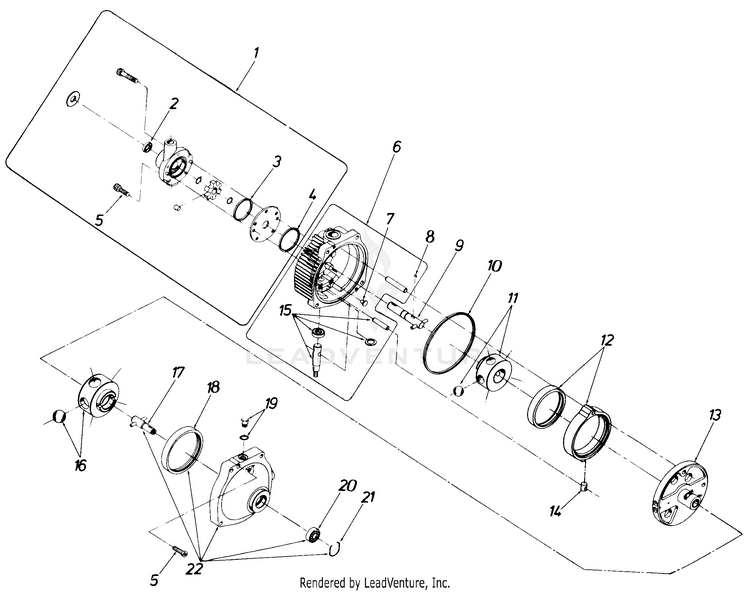

Hydrostatic Transmission

Charge Pump Kit MTD-ET-990147-000

OIL SEAL -3 MTD-ET-093955-000

RING-SQ CU MTD-ET-008771-036

RING-SQ CU MTD-ET-008771-038

Socket Head Cap Screw 5/16-18 x 1.25" Long MTD-ET-095912-125

KIT-COVER MTD-ET-990114-000

Button MTD-ET-101597-000

Drive Pin MTD-ET-090880-000

Input Shaft Subassembly MTD-ET-024490-000

RING-SQ CUT SEAL MTD-ET-008771-166

Pump Rotor-Ball Subassembly MTD-ET-101470-000

Cam Ring Subassembly MTD-ET-102603-000

Pintle Subassembly MTD-ET-101975-000

INSERT-CAM MTD-ET-097841-000

Control Shaft Kit MTD-ET-990136-000

Motor Rotor-Ball Subassembly MTD-ET-101853-000

Output Shaft Subassembly MTD-ET-024608-000

RACE-MOTOR MTD-ET-040525-000

O-RING-PLU MTD-ET-025083-006

BALL BEARING (Output) MTD-ET-090797-000

RETAINING RING MTD-ET-101680-156

Body Subassembly MTD-ET-102576-000
