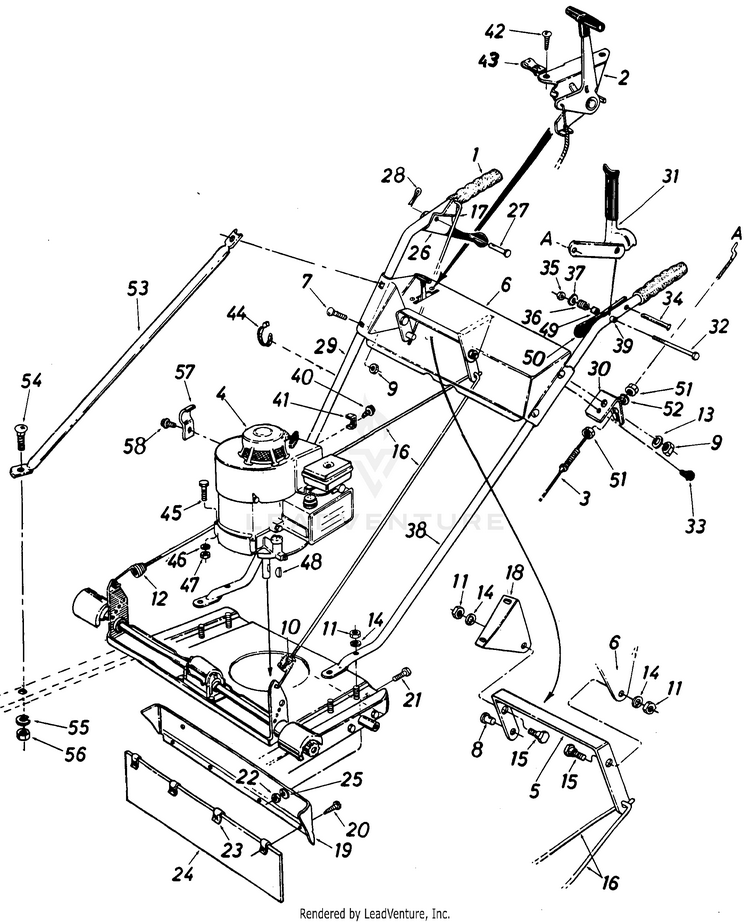

Lawnflite Mdl 574 Self-Propelled Walk-Behind Mower

Model: Lawnflite Mdl 574

Back To Assemblies

Save Part Not Listed?
product name

Parts01

...
...
1
Grip-Black MTD-720-0204
...
2
THROTTLE CONTROL ASSEMBLY MTD-746-0378
...
3
CLUTCH CABLE 56.0 MTD-746-0488
...
4
Engine MTD-NA
...
5
Link Bracket MTD-12570
...
6
Handle Panel Ass'y. MTD-15335
...
7
CARRIAGE BOLT 5/16-18 x 1.75 MTD-710-0458
...
8
FERRULE-ADJ MTD-711-0619
...
9
HEX NUT 5/16-18 MTD-712-3010
...
10
Hex Ins. L-Nut 1/4-20 Thd. MTD-712-0324
...
11
Hex Nut 3/8-16 Thd. MTD-712-0798
...
12
EXTENSION SPRING MTD-732-0305
...
13
Lock Wash. 5/16" I.D. MTD-936-0119
...
14
L-Wash. 3/8" I.D. MTD-736-0169
...
15
Shld. Bolt .500" Dia. x .295 MTD-738-0234
...
16
Lockout Rod MTD-747-0162
...
17
ROD MTD-747-0163
...
18
Bracket MTD-12571
...
19
Drag Shield Adapter MTD-12548
...
20
Hex Wash. Hd. Self-Tap Scr. MTD-710-0651
...
21
HEX SCREW 1/4-28 x .62 MTD-910-0195
...
22
Hex Nut 1/4-28 Thd.* MTD-712-0138
...
23
U-TYPE SPEED NUT MTD-926-0130
...
24
Drag Shield 4.65" x 20.0" Lg. MTD-735-0182
...
25
L-Wash. 1/4" I.D. MTD-936-0329
...
26
GRIP ASSEMBLY- MTD-12921
...
27
Clevis Pin .375" Dia. MTD-711-0415
...
28
Intern. Cot. Pin 5/16" Dia. MTD-714-0104
...
29
R.H. Handle (Chrome) MTD-749-0556
...
xx
R.H. Handle (Painted) MTD-749-0554
...
30
Clutch Cable Brkt. MTD-16047
...
31
Blade Clutch Grip Ass'y. MTD-15482
...
32
Hex Bolt 1/4-20 x 2.25" Lg.* MTD-710-0641
...
33
Hex Wash. S-Tap Scr. 1/4-20 x.50" Lg. MTD-710-0599
...
34
LOCKING PIN MTD-731-0607
...
35
Hex Cent. L-Nut 1/4-20 Thd. MTD-712-0291
...
36
Compression Spring .50" O.D. x .50" Lg. MTD-732-0334
...
37
Internal Tooth L-Wash. MTD-736-0498
...
xx
L.H. Handle (Chrome) MTD-749-0557
...
xx
L.H. Handle (Painted) MTD-749-0555
...
39
Spacer, .260 x .372 x 1.030 MTD-750-0566A
...
40
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
41
CASING CLAMP MTD-751-0333
...
42
HEX SCREW AB-TAP #10-16 x 0.500 MTD-910-0224
...
43
NUT-HEX JAM MTD-712-0344
...
44
Cable Tie Self Clinching MTD-725-0157
...
45
Hex Bolt 5/16-24 x 1.25" Lg. MTD-710-0672
...
46
Lock Wash. 5/16" I.D. MTD-936-0119
...
47
Hex Nut 5/16-24 Thd. MTD-912-3057
...
48
#6 Hi-Pro Key 5/32 x 5/8" Dia. MTD-714-0365
...
49
SPACER MTD-750-0565
...
50
SPRING-LOCKOUT MTD-732-0441
...
51
HEX JAM NUT 5/16-24 MTD-712-0256
...
52
Lock Wash. 5/16" I.D. MTD-936-0119
...
53
Strut MTD-749-0523
...
54
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
55
Lock Wash. 5/16" I.D. MTD-936-0119
...
56
HEX NUT 5/16-18 MTD-712-3010
...
57
CABLE CLAMP MTD-12894
...
58
HEX SCREW #10-16 x 0.500 MTD-710-0456
...
xx
Hardware Pack (574) MTD-8574-000-5
...
xx
Hardware Pack (573) MTD-8573-000-5
