Lawnflite Mdl 528-132 Lawn Tractor

Model: Lawnflite Mdl 528-132

Back To Assemblies

Save Part Not Listed?
product name

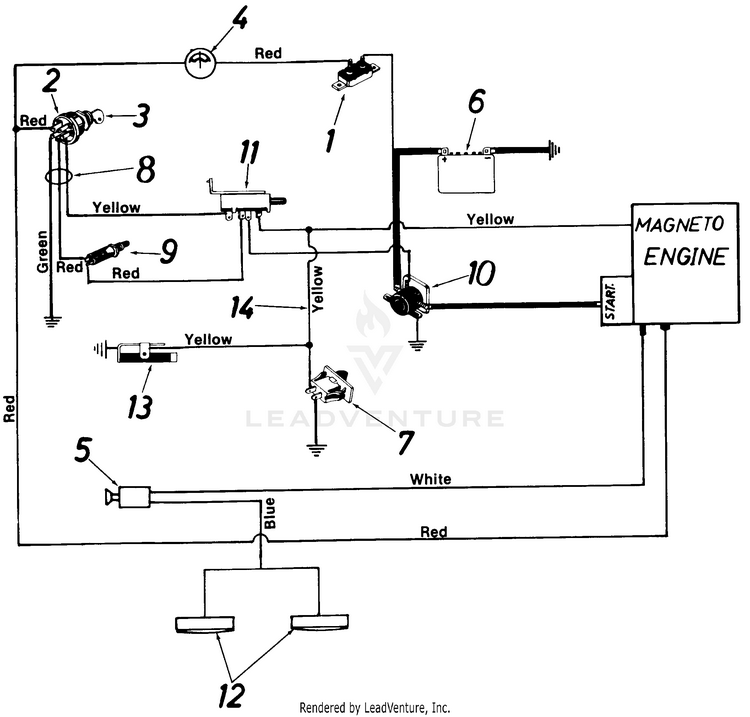

Electrical

...
...
1
CIRCUIT BREAKER MTD-753-0685
...
2
Ignition Switch MTD-925-0267B
...
3
Key MTD-925-0201
...
4
Ammeter MTD-925-3141
...
5
TOGGLE SWITCH (SINGLE) MTD-925-1756
...
6
BATTERY MTD-753-0607
...
7
ROCKER SWITCH (Grass Catcher) MTD-725-0713
...
8
WIRING HARNESS MTD-725-0849
...
9
SAFETY SWITCH (Drive) MTD-725-0577
...
10
Solenoid MTD-925-0771
...
11
Safety Switch (Blade) MTD-925-0465A
...
12
HEAD LIGHT MTD-725-0417
...
13
SAFETY SWITCH KIT (Reverse) MTD-725-0759
...
14
Wire Lead MTD-725-0712
