Lawnflite Mdl 501 Lawn Tractor

Model: Lawnflite Mdl 501

Back To Assemblies

Save Part Not Listed?
product name

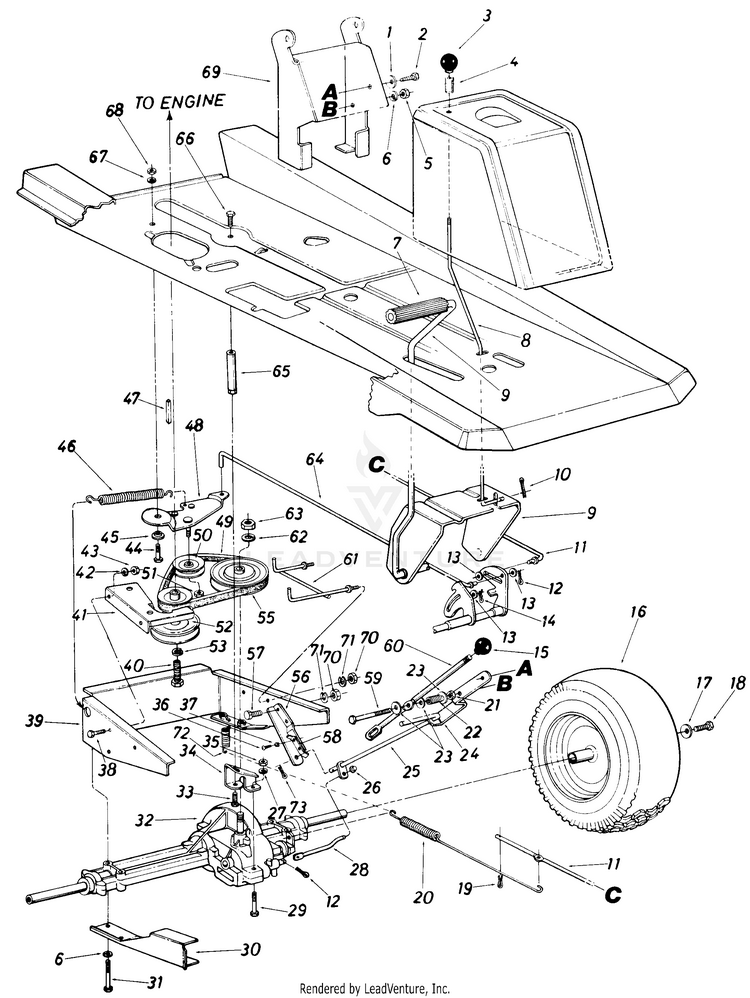

Parts04

...
...
1
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
2
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
3
Ball Knob MTD-720-0187
...
4
Compression Spring MTD-732-0437
...
5
HEX NUT 5/16-18 MTD-712-3010
...
6
Lock Wash. 5/16" I.D. MTD-936-0119
...
7
FOOT PAD MTD-735-0239A
...
8
BRAKE ROD LOCK (Style A) MTD-747-0427
...
xx
BRAKE ROD LOCK (Style B) MTD-747-0450
...
9
CLUTCH-BRAKE PEDAL ASS'Y. MTD-15562
...
10
Cotter Pin 31/32" I.D. x 3/4" Lg.* MTD-714-0507
...
11
BRAKE ROD MTD-747-0431
...
12
Cotter Pin 1/8" x 1.0" Lg. MTD-714-0115
...
13
FLAT WASHER MTD-736-0275
...
14
Intern. Cotter Pin 5/16" Dia. MTD-714-0104
...
15
Knob MTD-920-0232
...
16
Rear Wheel Ass'y. MTD-NA
...
xx
WHEEL ASSEMBLY W/TIRE- MTD-734-0523
...
xx
Rear Wheel Rim Only MTD-734-0517
...
xx
TUBELESS TIRE-13 x 5.0-6 MTD-734-0298-0901
...
xx
TUBELESS VALVE MTD-934-0255
...
17
Bell-Wash. .345" I.D. x .88"O.D. MTD-736-0242
...
18
Hex L-Bolt 5/16-24 x .75" Lg. MTD-710-0627
...
19
Cotter Pin 1/8" Dia. x 1.25" Lg. MTD-714-0470
...
20
EXTENSION SPRING MTD-732-0389
...
21
HEX NUT 5/16-18 MTD-712-3010
...
22
SPRING MTD-932-0369
...
23
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
24
Shift Lever Brkt. MTD-15659
...
25
LEVER ASSEMBLY MTD-15637
...
26
PUSH NUT MTD-726-0106
...
27
L-Wash. 1/4" I.D. MTD-936-0329
...
28
Shift Rod MTD-747-0421
...
29
Hex Bolt 1/4-20 x 1.75" Lg. MTD-710-0136
...
30
GUARD-BELT-LOWER MTD-15625
...
31
Hex Bolt 5/16-18 x 2.75" Lg. MTD-710-0176
...
32
KIT-TRANSAXLE MTD-717-0775
...
33
HEX SCREW 3/8-24 x .75 GR5 MTD-710-0180
...
34
BRACKET-TORQUE ROD MTD-15564
...
35
HEX NUT 1/4-20 MTD-912-0287
...
36
C-Sink AB S-Tap Scr. #8 x .50" Lg. MTD-710-0789
...
37
Push-ln Nut #10 MTD-726-0206
...
38
Hex Bolt 1/4-20 x .75" Lg. MTD-710-3015
...
39
SUPPORT ASSY-TRANS MTD-15552
...
40
Hex Bolt 7/16-20 x 1.0" Lg. MTD-710-0314
...
41
Upper Engine Belt Guard MTD-15646
...
42
L-Wash. 1/4" I.D. MTD-936-0329
...
43
HEX NUT 1/4-20 MTD-912-0287
...
44
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
45
Shoulder Spacer MTD-748-0234
...
46
Ext. Spring MTD-732-0383
...
47
Sq. Key 1/4" x 1/4" x 2.00" MTD-914-0114
...
48
Id ler Bracket Ass'y. MTD-15651
...
49
5L "V"-BELT 30" LG. (Bare Back) MTD-754-0249
...
50
Idler Pulley MTD-756-04209
...
51
Hex Insert L-Nut 3/8-24 Thd. MTD-712-0116
...
52
Engine Pulley MTD-756-0391
...
53
L-Wash. 7/16" I.D.* MTD-736-0171
...
55
PULLEY (Straight) MTD-756-0394
...
56
Shift Lever Support MTD-15624
...
57
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
58
SWITCH SPRING MTD-732-0420
...
59
Hex Bolt 5/16-18 x 2.25" Lg.* MTD-710-0395
...
60
Upper Shift Lever MTD-747-0430
...
61
Belt Trap MTD-747-0429
...
62
L-Wash. 1/2" I.D. MTD-736-0921
...
63
HEX NUT MTD-712-0206
...
64
CLUTCH ROD MTD-747-0423
...
65
Torque Rod 4.325" Lg. MTD-711-0544
...
66
HEX SCREW 3/8-24 x .75 GR5 MTD-710-0180
...
67
Lock Wash. 5/16" I.D. MTD-936-0119
...
68
HEX NUT 5/16-18 MTD-712-3010
...
69
Front Seat Bracket MTD-15897
...
70
HEX NUT 1/4-20 MTD-912-0287
...
71
L-Wash. 1/4" I.D. MTD-936-0329
...
72
Spring .38" O.D. x 3.18" Lg. MTD-932-0303
...
73
Cotter Pin 3/32" Dia. x .75" Lg. MTD-714-0111
