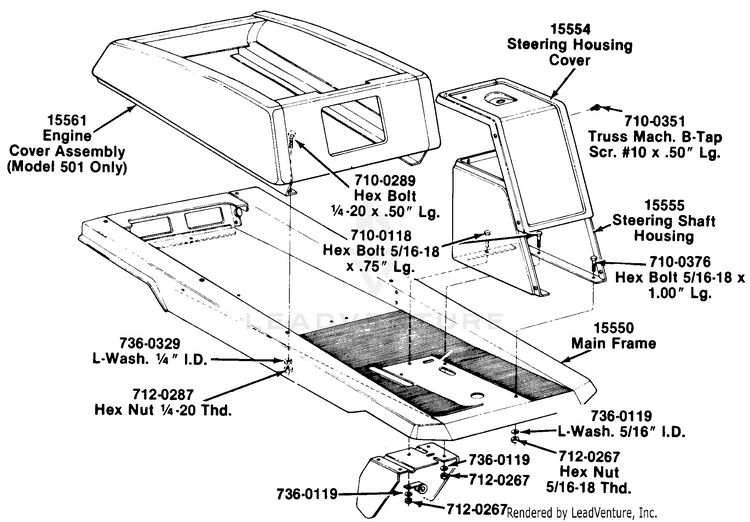

Lawnflite Mdl 501 Lawn Tractor

Model: Lawnflite Mdl 501

Back To Assemblies

Save Part Not Listed?
product name

Parts01

...
...
15561
Engine Cover Assembly MTD-15561
...
7360329
L-Wash. 1/4" I.D. MTD-936-0329
...
7120287
HEX NUT 1/4-20 MTD-912-0287
...
7360119
Lock Wash. 5/16" I.D. MTD-936-0119
...
7100118
HEX SCREW 5/16-18 .78 GR2 MTD-710-0118
...
7100289
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
51618
MTD-51618
...
7120267
HEX NUT 5/16-18 MTD-712-3010
...
7360119
Lock Wash. 5/16" I.D. MTD-936-0119
...
7120267
HEX NUT 5/16-18 MTD-712-3010
...
15554
COVER-STEE MTD-15554
...
7120267
HEX NUT 5/16-18 MTD-712-3010
...
7360119
Lock Wash. 5/16" I.D. MTD-936-0119
...
15550
FRAME MTD-15550
...
7100351
SCREW #10-16 x 0.500 MTD-710-0351
...
15555
MTD-15555
...
7100376
SCREW 5/16-18 x 1.0 GR5 MTD-710-0376
...
51618
MTD-51618
