Lawnflite Mdl 412 Tiller

Model: Lawnflite Mdl 412

Back To Assemblies

Save Part Not Listed?

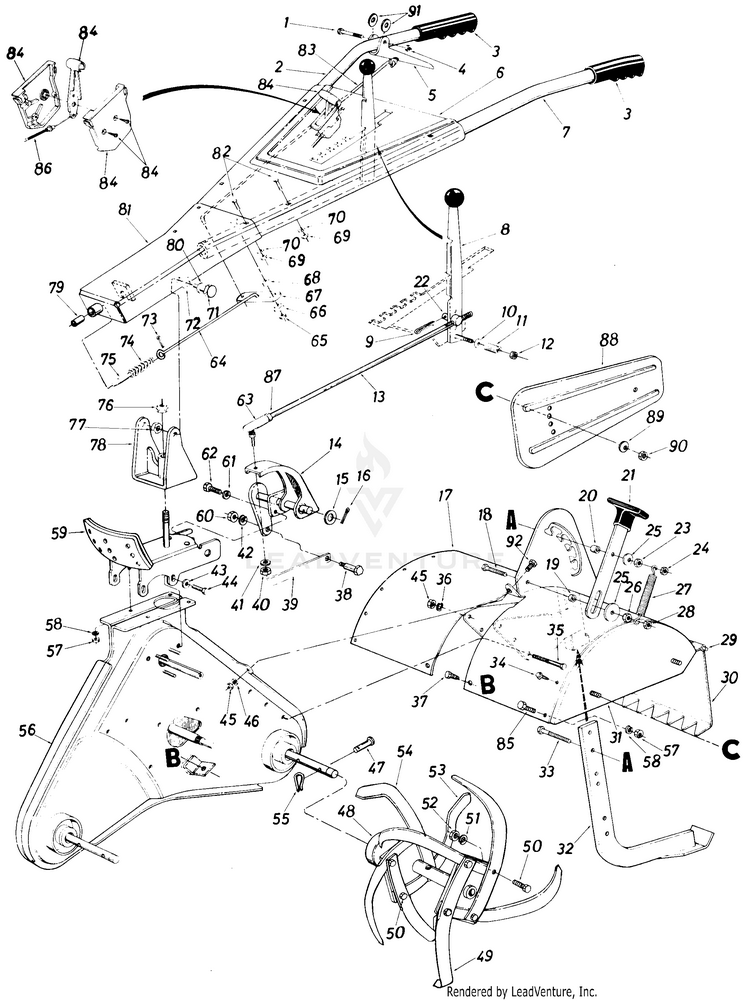

product name

Parts01

...
...
1
Hex Bolt 1/4-20 x 1.75" Lg. MTD-710-0136
...
2
HANDLE (RH) MTD-749-0268
...
3
Grip MTD-720-04083
...
4
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
5
Clutch Grip MTD-14844
...
6
Handle Panel Ass'y. MTD-04831
...
7
HANDLE (LH) MTD-749-0269
...
8
Clutch Handle Ass'y. MTD-04810
...
9
Inter. Cotter Pin MTD-714-0149B
...
10
Belleville Wash. .38" I.D. MTD-736-0105
...
11
Compression Spring .88" O.D. x .81" Lg. MTD-732-0193
...
12
Hex Cent L Nut 3/8-24 Thd. MTD-712-0214
...
13
Gear Shift Rod MTD-747-0278
...
14
Pivot Horn Ass'y. MTD-14734
...
15
FLAT WASHER MTD-736-0290
...
16
Cotter Pin 118" Dia. x .75" Lg . * MTD-714-0474
...
17
Tine Shield Ass'y. MTD-15381
...
18
Hex Bolt 3/8-16 x 1.5" Lg. MTD-710-0344
...
19
SPACER MTD-750-0527
...
20
SPACER MTD-950-0528
...
21
Depth Bar Handle Ass'y. w/ Knob MTD-14843
...
22
Ferrule MTD-911-0198
...
23
Hex Nut 3/8-16 Thd. MTD-712-0798
...
24
Hex Ins. L-Nut 3/8-16 Thd. MTD-712-0130
...
25
Fl-Wash. .38 I.D. x 1.50 O.D. x .13 MTD-736-0227
...
26
Hex Nut 3/8-16 Thd. MTD-712-0798
...
27
SPRING MTD-732-0416
...
28
Hex Ins. L-Nut 3/8-16 Thd. MTD-712-0130
...
29
Hinge Rod MTD-747-0252
...
30
Tine Shield Hinge Flap Ass'y. MTD-04804
...
31
Side CoverTine Shield-L.H. MTD-15389
...
xx
Side Cover Tine Shield-R.H. (Not Shown) MTD-15388
...
32
Depth/Drag Bar Ass'y. MTD-14731
...
33
Hex Bolt 3/8-16 x 1.75" Lg. MTD-710-0347
...
34
Screw, 5/16-18 x .625 MTD-710-0604A
...
xx
Speed Nut MTD-712-0292
...
35
HEX SCREW 3/8-24 x 3.0 LG MTD-710-0830
...
36
L-Wash. 3/8" I.D. MTD-736-0169
...
37
Hex Wash. Hd. Self-Tap Scr. MTD-710-0623
...
38
SHOULDER BOLT MTD-938-0258
...
39
Control Bracket MTD-04841
...
40
Hex Ins. L-Nut 3/8-24 Thd. MTD-712-0116
...
41
L-Wash. 3/8" I.D. MTD-736-0169
...
42
L-Wash. 3/8" I.D. MTD-736-0169
...
43
Belleville Wash. MTD-736-0105
...
44
Hex Wash. Hd. Self-Tap Scr. MTD-710-0623
...
45
Hex Nut 3/8-24 Thd. MTD-712-0241
...
46
L-Wash. 3/8" Scr. MTD-736-0169
...
47
Clevis Pin .375" Dia. x 1.88" MTD-711-0679A
...
48
Tine Adapter Ass'y. MTD-15295
...
49
L.H. Tine Ass'y. Comp. MTD-15387
...
xx
TINE ASSEMBLY- (Not Shown) MTD-15386
...
50
Hex Bolt 3/8-24 x 1.25" Lg. MTD-710-0192
...
51
L-Wash. 3/8" I.D. MTD-736-0169
...
52
Hex Nut 3/8-24 Thd. MTD-712-0241
...
53
TINE (RH) (POWDER BLACK) MTD-742-0244-0637
...
54
TINE (LH) MTD-742-0243
...
55
Inter. Cotter Pin MTD-714-0149B
...
56
Chai n Case Ass'y. Comp. MTD-15385
...
57
HEX NUT 5/16-18 MTD-712-3010
...
58
Lock Wash. 5/16" I.D. MTD-936-0119
...
59
Handle Positioner Ass'y. MTD-14744
...
60
Hex Ins. L-Nut 3/8-16 Thd. MTD-712-0130
...
61
Lock Wash. 5/16" I.D. MTD-936-0119
...
62
Hex Wash. Hd. Scr. 5/16-18 x .75" MTD-710-1260A
...
63
Ball Joint MTD-923-0156
...
64
Lower Handle Control Rod MTD-747-0254
...
65
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
66
Pivot Handle Brg. MTD-748-0516
...
67
Pivot Handle Link MTD-04819
...
68
Bushing, Shoulder, .320 ID x .135 MTD-936-0289
...
69
HEX NUT 5/16-18 MTD-712-3010
...
70
Lock Wash. 5/16" I.D. MTD-936-0119
...
71
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
72
Belleville Wash. .505" I.D. x 1.00" O.D. MTD-736-0253
...
73
Cotter Pin 1/8" Dia. x .75" Lg . MTD-714-0474
...
74
SPRING MTD-732-0132
...
75
Locking Pin MTD-711-0663
...
76
HEX NUT MTD-712-0221
...
77
Hex Top L-Nut 3/8-16 Thd. MTD-712-0181
...
78
Pivot Brkt. Ass'y. MTD-04812
...
79
SLEEVE BEARING .50 MTD-748-0150
...
80
Fl-Wash. .50" I.D. x 1.00" O.D. x .090 MTD-736-0192
...
81
Handle Mtg. Brkt. Ass'y. MTD-04792
...
82
CARRIAGE BOLT 5/16-18 x 1.75 MTD-710-0458
...
83
Handle Lock Rod MTD-747-0255
...
84
Throttle Control Box Ass'y. MTD-831-0796A
...
85
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
86
Throttle Control Wire MTD-946-0502
...
87
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
88
483 SIDE SHIELD MTD-15390
...
89
SPECIAL WASHER MTD-736-0170
...
90
HEX NUT 5/16-18 MTD-712-3010
...
91
Fl-Wash. 1/4" I.D. MTD-736-0173
...
92
Hex Bolt 3/8-24 x .75" Lg. MTD-710-0191
