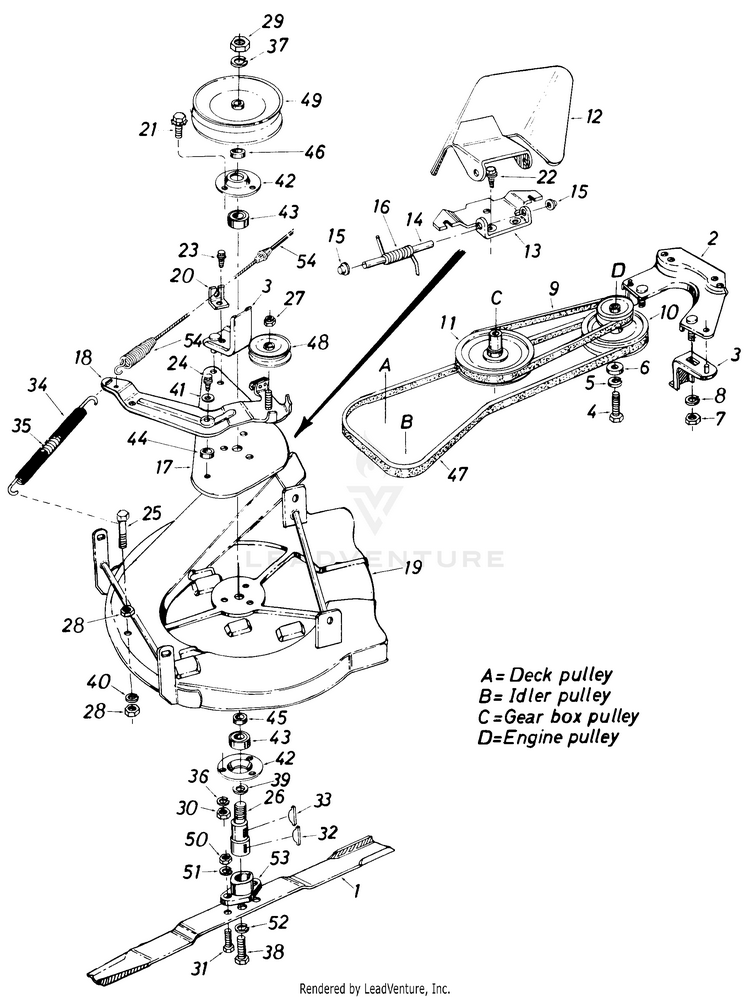

Lawnflite Mdl 3Z589F Self-Propelled Walk-Behind Mower

Model: Lawnflite Mdl 3Z589F

Back To Assemblies

Save Part Not Listed?
product name

Parts03

...
...
1
26" BLADE MTD-942-0147
...
2
GUARD ASSEMBLY MTD-10423
...
3
GUARD ASSEMBLY MTD-10426
...
4
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
5
L-Wash. 3/8" I.D. MTD-736-0169
...
6
FLAT WASHER .406 ID X 1 1/4 OD MTD-736-0247
...
7
HEX NUT 5/16-18 MTD-712-3010
...
8
Lock Wash. 5/16" I.D. MTD-936-0119
...
9
3 V-BELT 28" LG. MTD-754-0143
...
10
ENGINE PULLEY-TWO STEP MTD-756-0154
...
11
PULLEY MTD-756-0155
...
12
COVER-CHUT MTD-11634
...
13
ADAPTER MTD-11396
...
14
HINGE PIN MTD-711-0571
...
15
PUSH NUT MTD-726-0106
...
16
TORSION SPRING MTD-732-0261
...
17
Deck Belt Guard Plate MTD-12453
...
18
BRACKET ASSY-DECK MTD-12469
...
19
26" Deck Ass'y. MTD-15325
...
20
Cable Support Brkt. MTD-15343
...
21
HEX BOLT 5/16-18 x 1 LG.* MTD-710-0322
...
22
Hex Wash. S-Tap Scr. 1/4-20 x.50" Lg. MTD-710-0599
...
23
Hex Wash. Hd. B-Tap Scr. 5/16-18 x .50" Lg. MTD-710-0603
...
24
Hex L-Bolt 5/16-18 x 1.00" Lg. MTD-710-0643
...
25
SCREW 1/4-28 x 1.50 GR5 MTD-710-0698
...
26
BLADE SPINDLE MTD-711-0405
...
27
Hex Ins. L-Nut 3/8-24 Thd. MTD-712-0116
...
28
HEX NUT MTD-712-0117
...
29
HEX NUT MTD-712-3015
...
30
HEX NUT 5/16-18 MTD-712-3010
...
31
Hex Bolt 5/16-24 x 1.00" Lg. (Grade 8) MTD-710-0888
...
32
#6 Hi-Pro Key 5/32 x 5/8" Dia. MTD-714-0365
...
33
#61 Hi-Pro Key 3/16 x 5/8 0 Dia. MTD-914-0388
...
34
Plastic Tube .52" I.D. x 7.0" Lg. MTD-731-0675
...
35
EXTENSION SPRING MTD-732-0448
...
36
Lock Wash. 5/16" I.D. MTD-936-0119
...
37
L-Wash. 5/8" I.D. MTD-736-0158
...
38
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
39
SHIELD-BRG MTD-13703
...
40
L-Wash. 1/4" I.D. MTD-936-0329
...
41
Fl-Wash. .330" I.D. x 1.25" O.D. x .120 MTD-736-0343
...
42
Bearing Housing MTD-08253B
...
43
BALL BEARING MTD-741P0919B
...
44
Spacer.315" I.D. x .75" O.D. x.37" Lg. MTD-750-0258
...
45
SPACER MTD-950-0142
...
46
Spacer.630" I.D. x 1.135" O.D. x .195" Lg. MTD-748-0168
...
47
V - Belt MTD-954-0267
...
48
Idler Pulley MTD-756-04209
...
49
TRANSMISSION PULLEY SPLIT .63 ID MTD-756-0143
...
50
Hex Nut 5/16-24 Thd. MTD-912-3057
...
51
Lock Wash. 5/16" I.D. MTD-936-0119
...
52
L-Wash. 3/8" I.D.-Heavy Duty MTD-736-0217
...
53
BLADE ADAP MTD-10769
...
54
CLUTCH CABLE 56.0 MTD-746-0488
