Lawnflite Mdl 397 Lawn Tractor

Model: Lawnflite Mdl 397

Back To Assemblies

Save Part Not Listed?
product name

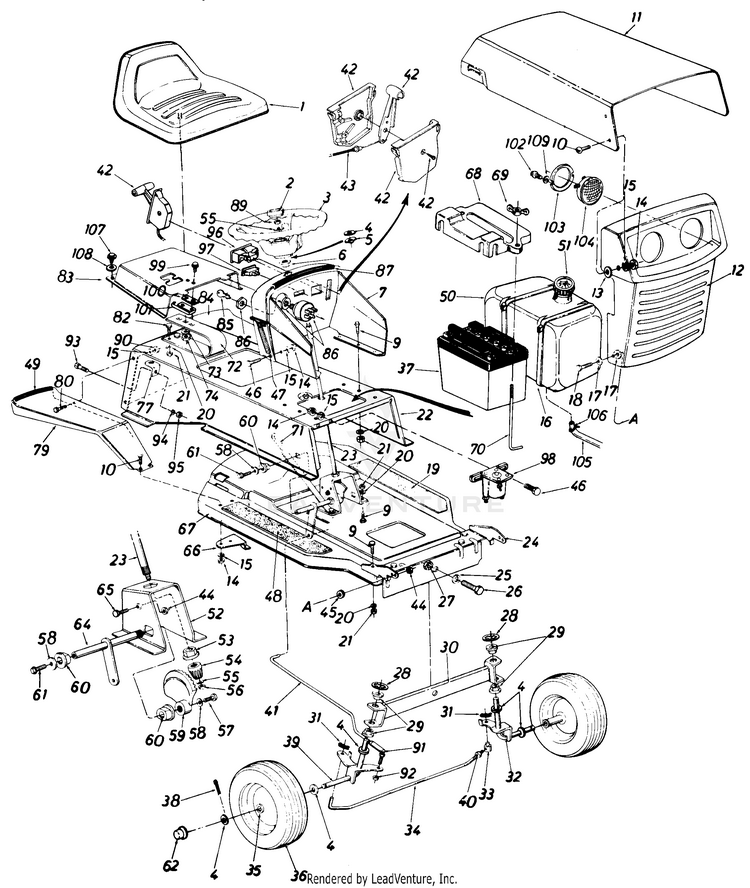

Parts01

...
...
1
SEAT MTD-757-0264
...
2
Steering Wheel Cap MTD-931-0220
...
3
STEERING WHEEL ASSEMBLY MTD-731-0219
...
4
Fl-Wash. .64 I.D. x 1.12 O.D. MTD-736-0156
...
5
Wave Wash. .66 I.D. x .88 MTD-736-0174
...
6
Hex Flange Bearing Bronze .625" I.D. MTD-948-0227A
...
7
Dash Panel Ass y. MTD-16037
...
xx
Dash Panel Ass'y. w/Lights Optional MTD-16038
...
9
HEX SCREW SEMS 5/16-18 x .75 MTD-910-0198
...
10
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
11
Hood MTD-11836
...
12
Grille w/Lights Optional MTD-731-0562
...
xx
GRILLE Optional MTD-731-0563
...
13
L-Wash. .281" I.D. x .50" O.D. MTD-736-0142
...
14
HEX NUT 1/4-20 MTD-912-0287
...
15
L-Wash. 1/4" I.D. MTD-936-0329
...
16
Cable Tie MTD-726-0230
...
17
Flat Wash. .39" I.D. x .87" O.D. MTD-736-0300
...
18
Hex Bolt 3/8-16 x 1" Lg. MTD-710-0514
...
19
FOOT PAD (LH) MTD-723-0305
...
20
Lock Wash. 5/16" I.D. MTD-936-0119
...
21
HEX NUT 5/16-18 MTD-712-3010
...
22
UPPER FRAME MTD-13880
...
23
STEERING SHAFT MTD-738-0307
...
24
BRACKET-PI MTD-12746
...
25
L-Wash. 518" Scr. MTD-736-0158
...
26
HEX SCREW 5/8-18 x 1.31 GR5 MTD-710-0312
...
27
Hex Jam Nut 5/8-18 Thd. MTD-712-0923
...
28
PUSH NUT SPEED MTD-926-0159B
...
29
FLANGE BEARING MTD-941-0225
...
30
BAR ASSEMBLY-P MTD-13274
...
31
Cot-Pin 1/8" Dia. x 1.00" Lg. MTD-714-0115
...
32
AXLE ASSEMBLY- MTD-14453
...
33
Ferrule MTD-911-0198
...
34
TIE ROD MTD-747-0144
...
35
Flange Bearing .632 ID MTD-741-0487C
...
36
WHEEL ASSEMBLY (11 x 4-4) MTD-634-0147
...
37
BATTERY MTD-753-0607
...
38
Cot-Pin 1/8" Dia. x 1.25" Lg. MTD-714-0470
...
39
AXLE ASSEMBLY- MTD-14452
...
40
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
41
STEERING ROD MTD-711-0625
...
42
Throttle Control Box Ass'y. MTD-831-0796A
...
43
Throttle Control Wire MTD-746-0501
...
44
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
45
Spacer MTD-748-0190
...
46
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
47
HOOD LOCK ASSEMBLY MTD-723-0296
...
48
FOOT PAD (RH) MTD-723-0304
...
49
TRIM MTD-731-0497
...
50
Gas Tank MTD-731-0172
...
51
GAUGE-GAS MTD-723-0155
...
52
SUPPORT-ST MTD-12850
...
53
HEX FLANGE BEARING MTD-741-0226
...
54
Pinion Gear MTD-948-0237
...
55
Bell-Wash. .357 I.D. x .88 O.D. MTD-736-0242
...
56
Hex Ins. L-Nut 5/16-18 Thd. MTD-712-0429
...
57
HEX SCREW 3/8-24 x .75 GR5 MTD-710-0180
...
58
Bell-Wash. MTD-736-0105
...
59
Bevel Gear MTD-748-0236
...
60
Flange Brg. w/Flats .75" I.D. MTD-941-0490
...
61
HEX SCREW 3/8-24 x .50 MTD-710-0325
...
62
Hub Cap MTD-931-0484A
...
64
SHAFT-STEE MTD-12749
...
65
Hex Scr. Nylon 3/8-16 x 1.25" Lg. MTD-710-0670
...
66
BELT GUARD MTD-11055
...
67
Lower Frame MTD-13879
...
68
BATTERY COVER MTD-731-0708
...
69
Wing Nut 1/4-20 Thd. MTD-912-0113
...
70
HOLD DOWN BATTERY ROD MTD-911-0222A
...
71
Transmission Support Brkt. MTD-12934
...
72
Seat Spring 3.25 High MTD-732-0256
...
73
L-Wash. 1/2" Scr. MTD-736-0921
...
74
HEX NUT MTD-712-0206
...
77
Hitch Bracket MTD-09963
...
79
Rear Fender MTD-11002
...
80
HEX SCREW 1/4-28 x .62 MTD-910-0195
...
82
HEX BOLT 5/16-18 x 1 LG.* MTD-710-0322
...
83
Transmission Panel MTD-13881
...
84
Rear Fender MTD-11002
...
85
Key MTD-925-0201
...
86
Ignition Switch MTD-925-0267B
...
87
Trim Strip 12" Lg. MTD-731-0511
...
89
UNKNOWN MTD-NA
...
90
Hex Nut 1/4-28 Thd. MTD-712-0138
...
91
Ball Joint MTD-923-0156
...
92
Hex Ins. L-Nut 3/8-24 Thd. MTD-712-0116
...
93
Hex Scr. 3/8-16 x .75" Lg. MTD-710-0216
...
94
Lock Washer 3/8" I.D. MTD-736-0169
...
95
Hex Nut 3/8-16 Thd. MTD-712-0798
...
96
Ammeter Optional MTD-925-0925
...
97
Light Switch Optional MTD-925-0634
...
98
Solenoid MTD-925-0771
...
99
Hex AB-Tap Scr. #8 x .50" Lg. MTD-710-0227
...
100
Insulatop Nut Plate MTD-926-0320
...
101
SAFETY SWITCH KIT MTD-725-0759
...
102
SCREW 1/4-14 x .625 Optional MTD-710-0892
...
103
RING HOLDE Optional MTD-09960
...
104
Head Light MTD-925-0222
...
105
FUEL HOSE 1/4-24" MTD-751-22813-24
...
106
HOSE CLAMP MTD-726-0207
...
107
Hex Wash. Hd. Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
108
SPRING WASHER BELL MTD-736-0270
...
109
Flat Wash. .281" I.D. x .625" O.D. x .106 MTD-736-0463
