Lawnflite Mdl 397 Lawn Tractor

Model: Lawnflite Mdl 397

Back To Assemblies

Save Part Not Listed?
product name

Parts03

...
...
1
KEY-HI-PRO #4-3/32X5/8 DIA MTD-914-0129
...
2
TRANSMISSION PULLEY SPLIT MTD-756-0174
...
3
L-Wash. 1/2" I.D.* MTD-736-0921
...
4
NUT MTD-712-3029
...
5
V-BELT 1/2 x 62 MTD-954-0198
...
6
Idler Pulley MTD-756-04209
...
7
Fl-Idler w/Flanges 2.75" O.D. MTD-956-0217
...
8
PULLEY (30" Deck) MTD-756-0436
...
xx
Two Step Engine Pulley (34" Deck) MTD-756-0431
...
10
L-Wash. 7/16" I.D. MTD-736-0171
...
11
Hex Bolt 7/16-20 x 1.0" Lg. MTD-710-0314
...
12
Hex Ins. L-Nut 3/8-24 Thd. MTD-712-0116
...
13
BLADE BRAKE ASSEMBLY (30" Deck) MTD-761-0174
...
xx
Blade Brake Assembly (34" Deck) MTD-961-0168D
...
14
Deck Pulley 4.75 O.D. MTD-756-0251
...
15
V-BELT 5/8 x 64 (30" Deck) MTD-954-0167
...
xx
V BELT 518" x .65" LG. (34" Deck) MTD-754-0279
...
16
Bearing Housing MTD-08253B
...
17
BALL BEARING MTD-741P0919B
...
18
Bearing Housing MTD-08253B
...
19
Sq. Key 1/4" x 1/4" x 2.00" MTD-914-0114
...
20
BLADE SPINDLE MTD-911-0255
...
21
BELT GUARD R.H. MTD-12673
...
23
BRACKET-WH MTD-09082
...
24
30" Deck Ass'y. MTD-13962
...
xx
34" Deck Ass'y. MTD-16003
...
25
BELT GUARD MTD-12672
...
26
Plate Deck Reinforcement MTD-09164A-0637
...
27
Hex Nut 5/16-24 Thd. MTD-912-3057
...
28
Lock Wash. 5/16" I.D. MTD-936-0119
...
29
15" BLADE MTD-742-0118
...
xx
17 INCH BLADE MTD-742-0120
...
30
Hex Bolt 5/16-24 x 1.00" MTD-710-0888
...
31
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
32
L-Wash. 3/8" I.D. H.D. MTD-736-0217
...
33
ADAPTER-BLADE MTD-748-0189
...
xx
BLADE ADAP MTD-10769
...
34
HEX BOLT 5/16-18 x 1 LG.* MTD-710-0322
...
35
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
36
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
37
Hex Wash. Hd. Bolt Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
38
L-Wash. 1/4" I.D. MTD-936-0329
...
39
HEX NUT 1/4-20 MTD-912-0287
...
40
L-Wash. 1/4" I.D. MTD-936-0329
...
41
HEX NUT 1/4-20 MTD-912-0287
...
42
Shld. Bolt .498" Dia. x 1.53" MTD-938-0373
...
43
DECK WHEEL (5.0 DIA X 1.38) MTD-734-06265
...
44
Hex Jam L-Nut 3/8-16 Thd. MTD-712-0181
...
45
Bell-Wash. .400 I.D. x .88 O.D. MTD-736-0105
...
46
BAR-WHEEL PIVOT MTD-10937
...
47
LEVER ASSEMBLY-SPRING MTD-14082
...
48
BRACKET-WH MTD-09080
...
50
BLADE SPINDLE ASSEMBLY MTD-09321
...
51
Lock Wash. 5/16" I.D. MTD-936-0119
...
52
HEX NUT 5/16-18 MTD-712-3010
...
53
ADAPTER ASS'Y. MTD-11399
...
54
Chute Cover Ass'y. MTD-11633
...
55
PUSH NUT MTD-726-0106
...
56
TORSION SPRING MTD-732-0261
...
57
BRAKE DISC MTD-09322
...
58
Deck Pulley 4.75 O.D. MTD-756-0251
...
59
L-Wash. 5/8n I.D. MTD-736-0158
...
60
HEX NUT MTD-912-0261
...
61
SHIELD-BRG MTD-13703
...
62
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
63
GUARD ASSEMBLY MTD-10426
...
64
BELT GUARD MTD-11055
...
65
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
66
Hex Bolt 3/8-16 x 1" Lg. MTD-710-0514
...
67
SHOULDER SPACER MTD-748-0279
...
68
HINGE PIN MTD-711-0571
...
69
#6 Hi-Pro Key 5/32 x 5/8" MTD-714-0365
...
xx
30" Deck Ass'y. Comp. (For Service Only) MTD-13978
...
xx
34" Deck Ass'y. Comp. (For Service Only) MTD-16030

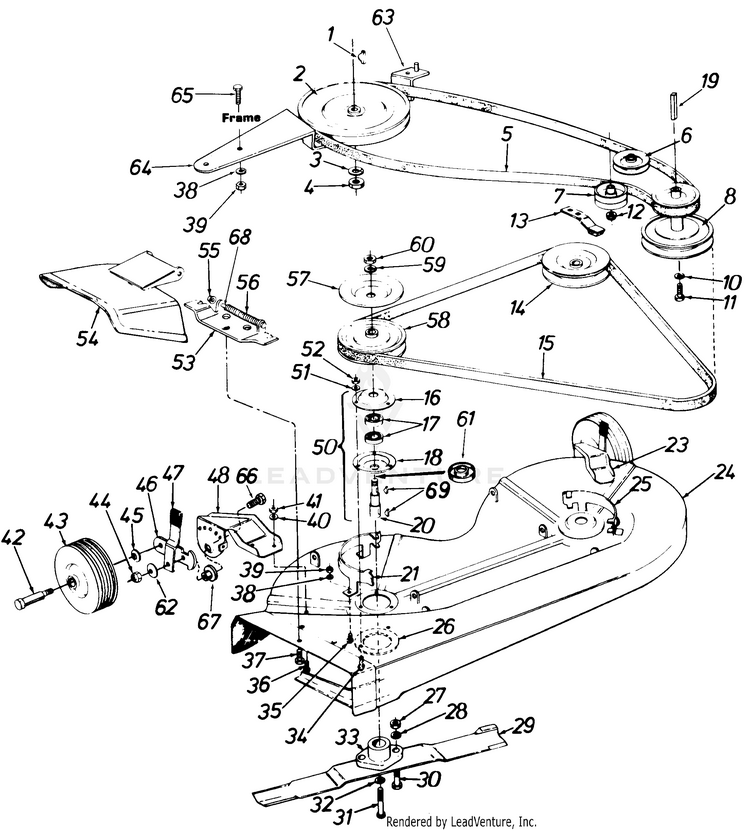

Schematic Image Zoomed
