Lawnflite Mdl 397 Lawn Tractor

Model: Lawnflite Mdl 397

Back To Assemblies

Save Part Not Listed?
product name

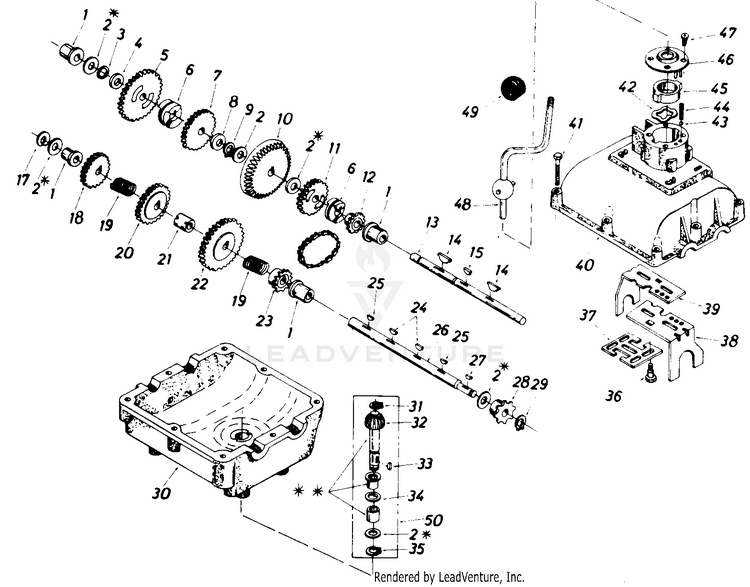

Transmisson

...
...
1
FLANGE BEARING MTD-FF-1101
...
2
FLAT WASHER MTD-936-0337
...
xx
FLAT WASHER MTD-936-0336
...
xx
WASHER-PLA MTD-FF-1358
...
xx
WASHER, PLAIN (.025) MTD-FF-1423
...
xx
WASHER-PLA MTD-FF-1424
...
xx
WASHER-PLA MTD-FF-1425
...
xx
FLAT WASHER MTD-936-0349
...
3
RETAINING RING-SPIROLOX MTD-FF-3395
...
4
Spacer MTD-FF-3422
...
5
GEAR ASSEMBLY- MTD-FF-2770
...
6
COLLAR-CLUTCH MTD-FF-1574
...
7
Assembly, Gear, Kit, 25T MTD-FF-2772
...
8
Spacer MTD-FF-3423
...
9
RING, RETAINING MTD-FF-1099
...
10
Gear, Bevel, 42T MTD-FF-1085
...
11
SPUR GEAR- MTD-FF-3460
...
12
Sprocket, Special, 12T MTD-FF-1087
...
13
Shaft, Drive MTD-FF-3443
...
14
KEY-HI-PRO MTD-FF-3068
...
15
Woodruff Key MTD-914-0868
...
xx
CHAIN MTD-FF-1090
...
17
E-Ring MTD-716-0106
...
18
SPUR GEAR- MTD-FF-3149
...
19
Spring, Compression MTD-FF-1095
...
20
Assembly, Gear, Kit, 25T MTD-FF-2771
...
21
Spacer MTD-FF-3409
...
22
SPUR GEAR- MTD-FF-3153
...
23
SPROCKET-12T SPECI MTD-FF-1104
...
24
KEY-WOODRU MTD-FF-1375
...
25
WOODRUFF KEY #3-1/8X1/2 DIA MTD-914-0112
...
26
Shaft, Output MTD-FF-1094
...
27
KEY-HI-PRO #4-3/32X5/8 DIA MTD-914-0129
...
28
SPROCKET-7T MTD-FF-1089
...
29
RETAINING RING MTD-FF-1300
...
30
Housing, Lower MTD-FF-1064-A
...
31
Snap Ring MTD-716-0865
...
32
PINION, BEVEL, 16T MTD-FF-1105
...
33
Key, Wdrf., #4 MTD-FF-1370
...
34
O-Ring MTD-FF-1926
...
35
RING, RETAINING MTD-FF-1099
...
36
Screw, Shoulder MTD-FF-1073
...
37
LOCK PLATE MTD-FF-1074
...
38
FORK-SHIFT MTD-FF-1070
...
39
Fork, Shifter, R.H. MTD-FF-1657
...
40
Housing, Upper MTD-FF-1065-J
...
41
BOLT-HEX H MTD-FF-1360
...
42
WASHER-WAV MTD-FF-1096
...
43
Ball, Detent MTD-FF-1037
...
44
SPRING-DET MTD-FF-1475
...
45
INSERT-NYL MTD-FF-1091
...
46
COVER-NYLO MTD-FF-1670
...
47
Screw, Tapping, #10-24 MTD-FF-3405
...
48
LEVER ASSEMBLY MTD-FF-2683
...
49
Knob MTD-920-0232
...
50
Assembly, Kit, Input Shaft Complete kit is required for proper service replacement MTD-FF-2571
