Lawnflite Mdl 397 Lawn Tractor

Model: Lawnflite Mdl 397

Back To Assemblies

Save Part Not Listed?

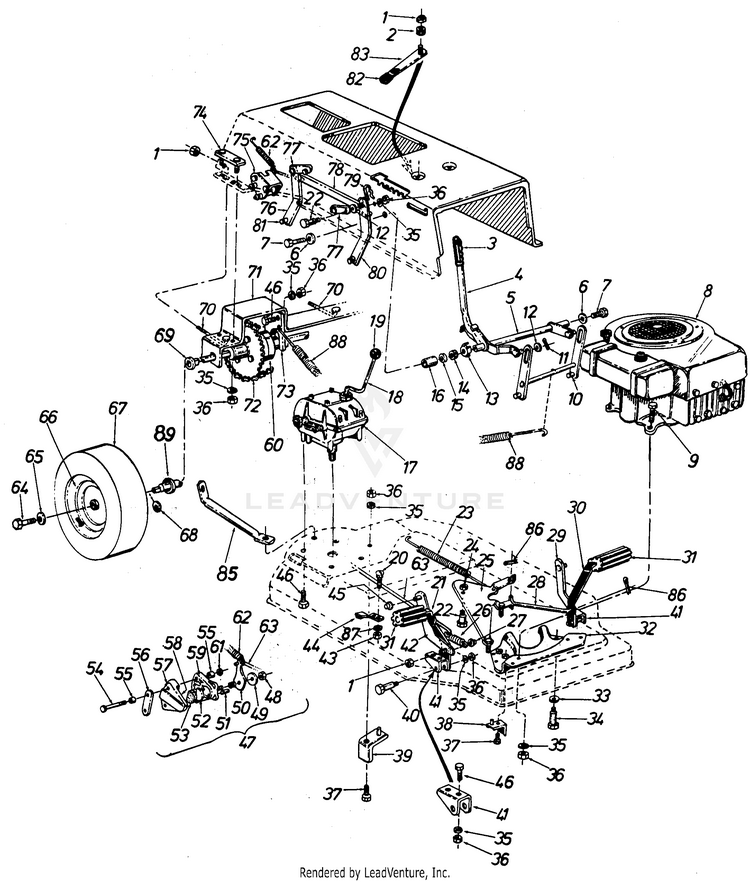

product name

Parts02

...
...
1
Hex Ins. L-Nut 5/16-18 Thd. MTD-712-0429
...
2
RUBBER WASHER MTD-735-0126A
...
3
GRIP-LIFT HANDLE MTD-08118
...
4
Lift Handle-R.H. MTD-749-0212
...
5
Lift Handle Brkt. Ass'y. MTD-13630
...
6
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
7
Hex Bolt 3/8-16 x .75" Lg. MTD-710-0216
...
8
Engine MTD-NA
...
9
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
10
LINK ASSEMBLY- MTD-15947
...
11
Cotter Pin 1/8" Dia. x 1.00" MTD-714-0115
...
12
Fl-Wash. .531 I.D. x .93 O.D. MTD-736-0192
...
13
BRACKET-HD MTD-11029
...
14
RUBBER WASHER MTD-735-0195
...
15
Flat-Wash . MTD-736-0237
...
16
SPACER MTD-748-0273
...
17
Three Speed Trans.-Comp. MTD-717-0806
...
18
SHIFT LEVER MTD-747-0172
...
19
Knob MTD-920-0232
...
20
Carr. Bolt 1/4-20 x .62" Lg. MTD-710-0134
...
21
Brake Pedal Ass'y. MTD-14219
...
22
Shld. Scr. .431 Dia. x .18" MTD-738-0140
...
23
SPRING MTD-732-0191
...
24
Hex Ins. L-Nut 3/8-24 Thd. MTD-712-0116
...
25
Idler Brkt. Ass'y. MTD-12446
...
26
BRAKE SPRING MTD-732-0245
...
27
Push Nut 3/8" Dia. Rod MTD-726-0100
...
28
Clutch Rod MTD-11061
...
29
LEVER ASSEMBLY MTD-11057
...
30
Clutch Pedal Ass'y. MTD-14220
...
31
FOOT PAD (Clutch and Brake) MTD-735-0201
...
32
ENGINE BELT GUARD ASS'Y. MTD-12654
...
33
Bell-Wash. .400 I.D. x .88 MTD-736-0105
...
34
Shld. Scr. .498" x 3.0" Lg. (30" Deck) MTD-738-0215A
...
xx
Shld. Bolt .498 Dia. x 3.25" (34" Deck) MTD-738-0411
...
35
Lock Wash. 5/16" I.D. MTD-936-0119
...
36
HEX NUT 5/16-18 MTD-712-3010
...
37
HEX SCREW SEMS 5/16-18 x .62 MTD-710-0259
...
38
BELT GUARD MTD-12160
...
39
GUARD ASSEMBLY MTD-10426
...
40
Shld. Bolt .498 Dia. x 1.450" MTD-738-0213
...
41
BRACKET AS MTD-11039
...
42
Parking Brake Lever Ass'y. MTD-11056
...
43
HEX NUT 1/4-20 MTD-912-0287
...
44
BLADE BRAKE ASSEMBLY MTD-761-0174
...
45
PUSH CAP 1/4 IN MTD-726-0121
...
46
HEX SCREW SEMS 5/16-18 x .75 MTD-910-0198
...
47
DISC BRAKE ASS'Y.-COMP. MTD-761-0130
...
48
Hex Cent. L-Nut 5/16-24 Thd. MTD-712-0237
...
49
FLAT WASHER .345X1.0X.100 MTD-736-3089
...
50
CAM LEVER MTD-HH-18-03493
...
51
PIN-PUSH MTD-HH-05-03034
...
52
3ISC-BACK MTD-HH-03-03303
...
53
PAD-FRICTI MTD-HH-15-02124
...
54
Hex Bolt 5/16-18 x 2.75" Lg MTD-710-0176
...
55
BUSHING MTD-761-0133
...
56
PLATE-BRAK MTD-11010
...
57
CASTING-CAM-D-RECESS MTD-HH-12-03292
...
58
PAD-FRICTI MTD-HH-15-03149
...
59
CASTING-CAM-D-RECESS MTD-HH-12-03292
...
60
DIFFERENTIAL ASSEMBLY MTD-717-0318
...
61
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
62
Spring .380 O.D. x 8.25n Lg. (Brake Return) MTD-732-0157
...
63
BRAKE ROD-.25 DIA x 24.12 LG MTD-747-0107
...
64
Hex Scr. w/Lock 5/16-24 x .750" Lg. MTD-710-0627
...
65
Bell-Wash. .345" I.D. x .88" MTD-736-0242
...
66
Rear Wheel-Rim Ass'y. MTD-NA
...
xx
RIM ONLY (Front) MTD-734-1183
...
xx
WHEEL RIM-RR 6.0 x 4.50 MTD-734-0521
...
xx
Rim Assembly MTD-634-0138
...
67
Rear Wheel-Tire Only MTD-NA
...
xx
Pneumatic Tire 10.0 x 4.0 (Front) MTD-734-1598-0901
...
xx
Tire Only MTD-734-1731-0901
...
xx
TUBELESS TIRE-16 x 6.5 x 8.0 MTD-734-0275
...
68
Fl-Wash. MTD-736-0134
...
69
Flange Brg. w/Flats .75" I.D. MTD-941-0490
...
70
ADJUSTMENT LINK 5/16-18 x 4-9/1 6" LG. MTD-710-0437
...
71
REARAXLE BRKT. MTD-11009
...
72
#41 CHAIN 1/2 PITCH 65 LINKS MTD-713-0104
...
xx
#41 MASTER LINK 1/2 PITCH TYPEII MTD-913-0723
...
73
Rear Axle Plate MTD-10364
...
74
PLATE ASSEMBLY-AXLE BO MTD-10360
...
75
BRACKET AS MTD-11011
...
76
DECK LINK MTD-11024
...
77
LINK ASSEMBLY- MTD-09721
...
78
Connecting Lift Brkt. MTD-11014
...
79
Int. Cotter Pin 1/2" Dia. MTD-714-0101
...
80
LINK ASSEMBLY- MTD-11023
...
81
Clevis Pin MTD-911-0332
...
82
Ht. Adj. Knob MTD-11249
...
83
BRACKET AS MTD-11027
...
85
Reinforcement Brkt. MTD-749-0469
...
86
Cot-Pin 1/8n Dia. x 3/4" Lg. MTD-714-0474
...
87
L-Wash. 1/4" I.D. MTD-936-0329
...
88
EXTENSION SPRING MTD-732-0440
...
89
SPACER MTD-750-0345
