Lawn Hawk Mdl 120-478R111 Self-Propelled Mower

Model: Lawn Hawk Mdl 120-478R111

Back To Assemblies

Save Part Not Listed?
product name

Parts

...
...
1
Battery Pack - 12 Volt MTD-925-1276
...
2
Wire Harness MTD-725-1283
...
3
UPPER BATTERY TRAY MTD-731-0891A
...
5
KEY SWITCH MTD-925-0873
...
6
Key MTD-925-0201
...
7
PLUG MTD-925-1206
...
8
Truss Mach- Scr. #12 x 1.5" MTD-710-0796
...
9
Battery Charger MTD-925-0727
...
10
Lower Battery Tray MTD-16542B
...
11
HEX NUT 5/16-18 MTD-712-3010
...
12
Lock Wash. 5/16" I.D. MTD-936-0119
...
13
Truss Mach. H-Riser Tap Scr. 1" Lg. MTD-710-0969
...
14
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
15
BAIL (LH) MTD-731-0609
...
xx
Truss Mach. B-Tap Scr. #12 x 1.5" Lg. MTD-710-0796
...
17
PANEL HALF-CONTROL MTD-731-0817A
...
18
CLUTCH PANEL HALF MTD-731-0816A
...
19
Throttle Control Lever MTD-931-0972
...
20
CONROL DISC PIN MTD-731-0524
...
21
LABEL-ERS THROT. CONT. MTD-777-5812
...
22
Throttle Wire-58" Lg. MTD-946-0674A
...
23
CONTROL HOUSING COMP. MTD-753-0430
...
24
CONTROL CABLE MTD-946-0477A
...
xx
7.5 AMP FUSE (Not Shown) MTD-925-0298

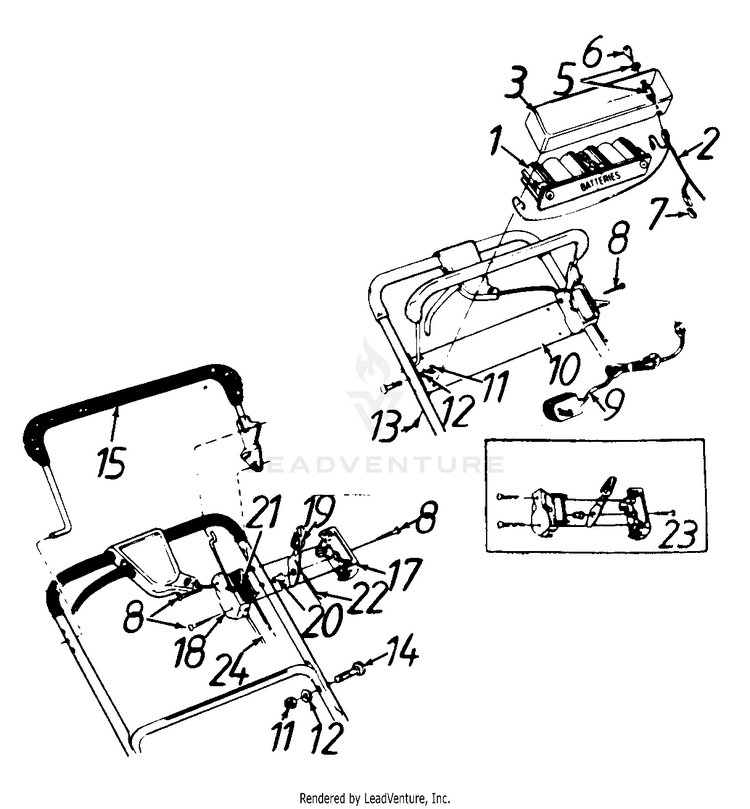

Schematic Image Zoomed
