Lawn Hawk 126-478C111 (1996) Self-Propelled Mower

Model: 126-478C111 (1996)

Save
 Part Not Listed?Part Not Listed?
product name

Engine Shrouds

...
...
751B281439
Engine Shroud - Dark Red MTD-751B281439
...
751B281440
Engine Shroud - Black MTD-751B281440
...
751B281443
Engine Shroud - Bright Red MTD-751B281443
...
710-1256
Screw MTD-710-1256
...
731-1395
Engine Shroud - Red MTD-731-1395
...
731-1396
Engine Shroud - Black MTD-731-1396A
...
731-1397
Engine Shroud - Black MTD-731-1396A
...
710-1256
Screw MTD-710-1256
...
731-1587
Engine Shroud - Black MTD-731-1587
...
731-1603
Engine Shroud - Yellow MTD-731-1603
...
731-1610
Engine Shroud - Pewter MTD-731-1610
...
710-1184
Screw MTD-710-1184
...
731-1561
Engine Shroud - Black MTD-731-1561
...
731-1612
Engine Shroud - Red MTD-731-1612
...
7510042823
Screw MTD-7510042823
...
731-1402A
Engine Shroud - Yellow MTD-731-1402A
...
731-1694
Engine Shroud - Black MTD-731-1694
...
731-1695
Engine Shroud - Silver MTD-731-1695
...
710-1256
Screw MTD-710-1256
...
7510014308
Engine Shroud - Black MTD-7510014308
...
7510042823
Screw MTD-7510042823
...
731-1585A
Engine Shroud - Black MTD-731-1585A
...
710-1274
SCREW-PAN #10-32X1 MTD-910-1274
...
731-1586A
Engine Shroud - Black MTD-731-1586A
...
7510042823
Screw MTD-7510042823

Front Axle Assembly

...
...
1
Torx Mach. AB-Tap Scr. 1/4 x .62" Lg. MTD-710-1017
...
2
Height Adjustment Support MTD-721-0216
...
3
Height Adjustment Plate MTD-17323
...
4
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329
...
6
Height Adj. Connecting Rod MTD-747-0699
...
7
Cotter Pin 3/32" Dia. MTD-714-0507
...
8
Front Axle Ass'y. MTD-17022-0637
...
9
Hex L-Wash. Hd. AB-Tap Scr. 1/4 x .38" Lg. MTD-710-0352
...
10
Extension Spring 2.39" Lg. MTD-732-0589
...
11
Bell-Wash. .380" I.D. x .88" MTD-736-0105
...
12
Ball Bearing 1/2" I.D. MTD-NA
...
xx
BALL BEARING MTD-941-0484
...
xx
BALL BEARING MTD-941-0484
...
xx
BALL BEARING MTD-941-0484
...
13
Hub Cap Optional Hub Caps MTD-NA
...
14
Wheel Ass'y. Comp. - Front MTD-NA
...
xx
8" x 1.75" Bar Tread Front Wheels MTD-634-0020
...
xx
8" x 1.75" "T" Wave Front Wheels MTD-734-1268
...
xx
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826
...
xx
Wheels - Front MTD-753-08093
...
xx
8" x 2" "S" Wave (Yellow Rim) Front Wheels MTD-734-1790
...
15
Shld. Bolt .498" Dia. x 1.45" MTD-738-0102
...
16
Wave Washer.510 ID x.750 OD (Used w/Ball Bearings) MTD-936-0504
...
17
Mach. Scr. 1/4 - 20 x .5" Lg. MTD-710-0286
...
18
Hex Jam Nut 1/4-20 Thd. MTD-912-0298
...
xx
Hub Cap Gray (3-1/2" Dia.) Optional MTD-920-0249
...
xx
Hub Caps - Black (4-1/4" Dia.) Optional MTD-731-0354
...
xx
Hub Caps - Gray (4-1/4" Dia.) Optional MTD-731-0355A
...
xx
Hub Cap Optional MTD-731-0981C
...
xx
Hub Cap (Beige) Optional MTD-731-0982C
...
xx
Hub Cap - Yellow Optional MTD-731-1426B
...
xx
8" x 1.75" "T" Wave Sleeve Brg. Rear Wheels MTD-741-0486B
...
xx
8" x 2" "S" Wave (Gray Rim) Sleeve Brg. Rear Wheels MTD-741-0486B
...
xx
8" x 2" "S" Wave (Yellow Rim) Sleeve Brg. Rear Wheels MTD-741-0486B
...
xx
8" x 1.75" Bar Tread Rear Wheels MTD-634-0020
...
xx
8" x 1.75" "T" Wave Rear Wheels MTD-734-1412
...
xx
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826
...
xx
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826
...
xx
8" x 2" "S" Wave (Yellow Rim) Rear Wheels MTD-734-1791

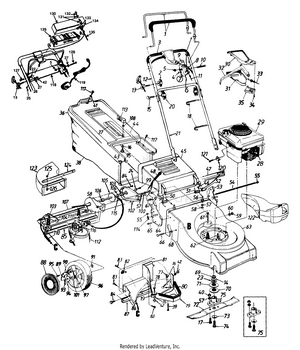

General Assembly

...
...
1
Std. Control Handle MTD-747-0824B-0637
...
xx
Std. Control Handle (Deluxe) MTD-747-0824B-0637
...
2
Handle Knob 1/4-20 Thd. MTD-720-0279
...
3
FOAM GRIP - 9" (Optional) MTD-720-0294A
...
4
Curved Spring Wash. .66" I.D. MTD-936-0501
...
5
Hex L-Nut 1/4 - 20 Thd. MTD-712-0324
...
6
Throttle Wire 55" Lg. For models (478 Series) MTD-946-0671A
...
xx
Throttle Cable For models (475 Series) MTD-946-1115
...
7
Throttle Box Comp. (Incl. Ref. 4, 5, 8, 9, 10) MTD-811-0185
...
8
Throttle Lever MTD-946-0876
...
9
Throttle Body MTD-946-0875
...
10
Oval C-Sunk Scr. MTD-710-0605
...
11
Control Cable (brake) For models (478 Series) MTD-946-0554
...
xx
Control Cable - 55" (Tecumseh) For models (475 Series) MTD-946-0555
...
12
Upper Handle MTD-749-0539C-0637
...
13
Rope Guide MTD-710-1205
...
14
Spring Washer, .890 x 1.70 MTD-936-0513
...
15
Curved Hd. Bolt 5/16 - 18 x 2" MTD-710-1174
...
16
Bowed Washer MTD-936-0286
...
17
Hex Bolt 3/8 - 24 x 1" Lg. MTD-710-1055
...
18
Cable Tie MTD-725-0157
...
19
Stop Brkt. MTD-782-7010
...
20
Hand Knob MTD-920-0276
...
21
Lower Handle MTD-749-0928A-0637
...
22
HEX NUT 5/16-18 For model E478 (Electric Start) only; For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010
...
23
Fl-Wash. .88" I.D. x 1.85" MTD-736-0514
...
24
SPRING WASHER BELL MTD-736-0270
...
25
Truss Mach. Tap Scr. 1" Lg. For model E478 (Electric Start) only. MTD-710-0969
...
26
Bell-Wash. 5/16" I.D. For model E478 (Electric Start) only. MTD-736-0242
...
27
SPRING WASHER BELL For model E478 (Electric Start) only. MTD-736-0270
...
28
Spark Plug Boot (Optional) MTD-735-0639
...
29
Engine MTD-NA
...
30
Control Cover Half-Lower MTD-753-0833
...
31
Control Cover Half-Lower MTD-753-0833
...
32
Drive Control MTD-731-0620A
...
33
Drive Cable MTD-946-0711B
...
34
Flat C-Sunk Hd. Tap Scr. #10 x .75" Lg. MTD-710-0841
...
35
Control Cover Half-Lower MTD-753-0833
...
36
Hardtop Bag Cover MTD-631-0003
...
37
Hardtop Bag Cover MTD-631-0003
...
38
Grass Bag MTD-964-0252
...
39
Truss Mach. Scr. 1/4-20 x 1.0" Lg. MTD-710-0166A
...
40
Hex Nut 3/8 - 24 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-0241
...
41
Fl-Wash. .281" I.D. x .62" MTD-736-0463
...
42
Hex Nut 1/4-20 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-0287
...
43
Front Catcher Frame MTD-764-0411-0637
...
44
Rear Catcher Frame MTD-749-0736A
...
45
Chute Deflector MTD-931-0859A
...
46
Deflector Plug MTD-731-0970B
...
47
Seal - Extrusion MTD-731-0858
...
48
Grip MTD-720-0223
...
49
Spring Lever MTD-732-0580
...
50
Torsion Spring - R.H. MTD-732-0578B
...
51
Torsion Spring - L.H. MTD-732-0577B
...
52
Spacer, .260 x .372 x 1.030 MTD-750-0566A
...
53
Handle Brkt. Ass'y. - L.H. MTD-12297B
...
54
Hinge Pin 17.75" Lg. MTD-747-0698B
...
55
PUSH NUT MTD-726-0106
...
56
SHOULDER PIN 3/8-24X1.43 MTD-711-0805
...
57
L-Wash. 3/8" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-736-0169
...
58
Hex Jam Nut 3/8 - 24 Thd. MTD-712-0711
...
59
Hex L-Nut 3/8-24 Thd. MTD-912-0296
...
60
Bell-Wash. .38" I.D. x .88" MTD-736-0105
...
61
Hex Tap Scr. 1/4 - 20 x 1.5" Lg. MTD-710-0778
...
62
Hex Scr. 3/8 - 16 x 1" Lg. MTD-710-0654A
...
63
21" Deck Ass'y. MTD-16997
...
64
Handle Brkt. Ass'y.-R.H. MTD-12296B-0637
...
65
Hex AB-Tap Scr. 1/4 x .62" Lg. MTD-710-0896
...
66
Hex Tap Scr. 3/8 - 16 x .75" Lg. New Part MTD-710-0623
...
67
Hex Tap Scr. 1/4 - 20 x .5" Lg. MTD-710-0599
...
68
Spacer .383" I.D. x .503" O.D. MTD-950-0736
...
69
Crankshaft Spacer MTD-748-0358
...
70
Pulley Half - Lower MTD-756-0961
...
71
Pulley Half - Upper MTD-756-0962
...
72
21" Blade MTD-942-0621
...
xx
21" Mulching Blade (Optional) MTD-942-0721
...
73
Bell-Wash. .39" I.D. MTD-736-0452
...
74
Hex Bolt 3/8 - 24 x 1.5" Lg. MTD-710-1044
...
75
Blade Adapter Kit MTD-753-0484
...
76
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329
...
77
Hex Jam Nut 1/4-20 Thd. MTD-912-0298
...
78
Truss Mach. Scr. 1/4-20 x 1.0" Lg. MTD-710-0166A
...
79
Ext. Baffle MTD-682-5009
...
80
CARRIAGE BOLT 1/4-20X.50" For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-05177
...
81
Rear Panel Baffle MTD-17006
...
82
Corner Plug MTD-731-0931
...
83
Torx Mach. AB-Tap Scr. 1/4 x .62" Lg. MTD-710-1017
...
84
Hex Tap Scr. 1/4 x .38" Lg. MTD-710-0653
...
85
Rear Flap MTD-731-1488
...
86
Rear Chute Baffle MTD-17008-0637
...
87
Retaining Strip MTD-782-5010
...
88
Hub Cap (Optional) MTD-NA
...
89
Plastic Spring MTD-10622B
...
90
Pawl .345" I.D.- R.H. MTD-748-0381
...
xx
Pawl LH (Not Shown) MTD-948-0188B
...
91
Weld Top L-Nut 1/4 - 20 Thd. MTD-712-0414
...
93
Cotter Pin 1/8" Dia. MTD-714-0115
...
94
Wheel Ratchet MTD-948-0318
...
95
Shld. Bolt .342" Dia. x .268" MTD-738-0137
...
96
Rear Wheel Ass'y. Comp. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-NA
...
97
Bearing 1/2" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-NA
...
98
Shld. Spacer .50" Dia. MTD-750-0624
...
99
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
100
SHOULDER PIN 3/8-24X1.43 MTD-711-0805
...
101
Pawl Plate MTD-16855
...
102
Chain Cover Ass'y. MTD-17053A
...
103
Flge Bearing .506 ID x .590 Lg MTD-741-0324A
...
104
Fl-Wash. .531" I.D. x .93" MTD-736-0160
...
105
Rear Axle Ass'y. MTD-738-0719A
...
106
Hex Flange Bearing MTD-741-0522
...
107
Chain Axle Ass'y. MTD-17009
...
108
Internal L-Wash. 1/4" I.D. MTD-736-0498
...
109
Spacer .513" I.D. MTD-748-0190
...
110
Extension Spring 3.8" Lg. MTD-732-0481
...
111
Spacer.325" I.D. MTD-950-0589
...
112
V - Belt MTD-954-0346
...
113
Grass Catcher Locking Knob MTD-920-0224
...
114
Internal Cotter Pin 5/16" Dia. MTD-714-0104
...
115
#48 Chain .50" Pitch x 30 Links MTD-713-0353
...
116
Transmission Comp. See Transmission For Breakdown MTD-917-0417B
...
117
Hex AB-Tap Scr. 1/4 x .62" Lg. MTD-710-0892
...
118
Lower Battery Tray For model E478 (Electric Start) only. MTD-782-9012-0637
...
119
Battery Charger For model E478 (Electric Start) only. MTD-925-0727
...
120
Cable Clamp (B&S) For model (478 Series) MTD-BS-690798
...
xx
Cable Clamp For model (475 Series) MTD-7510007755
...
121
Hex Self-Tap Scr. #10 - 32 x .62" Lg. For model (478 Series) MTD-710-1237
...
xx
Hex Sems Scr. #10 - 32 x .38" Lg. For model (475 Series) MTD-710-0871
...
122
Mulching Plug (Optional) MTD-931-1446
...
123
Chute Deflector (Optional) MTD-931-1461
...
124
Chute Mounting Bracket (Optional) MTD-782-7011-0637
...
125
Hex L-Nut 1/4 - 20 Thd. MTD-712-0324
...
126
Mach. Scr. 1/4 - 20 x .5" Lg. MTD-710-0286
...
127
Curved Carr. Bolt 5/16 - 18 x 1 For model E478 (Electric Start) only. MTD-710-1250
...
128
Hex Bolt 1/4 - 20 x 2" Lg. For model E478 (Electric Start) only; For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0501
...
129
Battery Pack - 12 Volt For model E478 (Electric Start) only. MTD-925-1276
...
130
Battery Tray For model E478 (Electric Start) only. MTD-731-0891A
...
131
Ignition Switch For model E478 (Electric Start) only. MTD-925-0873
...
132
Key For model E478 (Electric Start) only. MTD-925-0201
...
133
Fuse Holder For model E478 (Electric Start) only. MTD-925-1428
...
xx
Fuse 7-1/2 Amp (Not Shown) For model E478 (Electric Start) only. MTD-925-0298
...
134
Plug For model E478 (Electric Start) only. MTD-925-1206
...
135
Wire Harness For model E478 (Electric Start) only. MTD-725-1442
...
xx
Ext. Harness (Not Shown) For model E478 (Electric Start) only. MTD-725-1538
...
xx
Hub Cap Gray (3-1/2" Dia.) Optional MTD-920-0249
...
xx
Hub Caps - Black (4-1/4" Dia.) Optional MTD-731-0354
...
xx
Hub Caps - Gray (4-1/4" Dia.) Optional MTD-731-0355A
...
xx
Hub Cap Optional MTD-731-0981C
...
xx
Hub Cap - Yellow Optional MTD-731-1426B
...
xx
8" x 1.75" "T" Wave Sleeve Brg. Rear Wheels MTD-741-0486B
...
xx
8" x 2" "S" Wave (Gray Rim) Sleeve Brg. Rear Wheels MTD-741-0486B
...
xx
8" x 2" "S" Wave (Yellow Rim) Sleeve Brg. Rear Wheels MTD-741-0486B
...
xx
8" x 1.75" Bar Tread Rear Wheels MTD-634-0020
...
xx
8" x 1.75" "T" Wave Rear Wheels MTD-734-1412
...
xx
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826
...
xx
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826
...
xx
8" x 2" "S" Wave (Yellow Rim) Rear Wheels MTD-734-1791

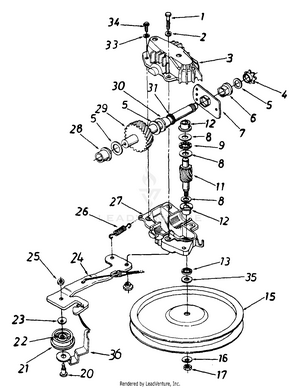

Transmission

...
...
1
Hex Bolt 1/4-20 x 1.25" Lg. w/Patch MTD-710-1062
...
2
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329
...
3
Upper Hsg. Half MTD-717-0418A
...
4
#48 Sprocket 7 Tooth x 1/2 Pitch MTD-713-0400
...
5
FLAT WASHER MTD-936-0336
...
6
Hex Flange Brg. .631" I.D. MTD-741-0413
...
7
Hex Bearing Cup MTD-16500A-0637
...
8
Thrust Wash. .382" I.D. x .70" O.D. MTD-736-0314
...
9
Thrust Bearing .375" I.D. x .812" O.D. MTD-741-0479
...
11
11 Tooth Helical Gear MTD-917-1216
...
12
Flange Bearing MTD-748-0208A
...
13
Oil Seal MTD-721-0212
...
15
Fl-Pulley 5.06" O.D. MTD-756-0330A
...
16
SPRING WASHER BELL Not part of Transmission Complete MTD-736-0270
...
17
Jam Nut, 1/4-28, LH Not part of Transmission Complete MTD-712-04326
...
?18
Shld. Spacer .375" Dia. x .170 Not part of Transmission Complete MTD-738-0440
...
20
Shld. Bolt .375" Dia. x .40" Not part of Transmission Complete MTD-738-0826
...
21
Pulley Ass'y Idler w/ Bearing (Incl. ref. #22) Not part of Transmission Complete MTD-956-0008
...
22
Needle Brg. .375" x .31 Not part of Transmission Complete MTD-741-0556
...
23
SPRING WASHER BELL Not part of Transmission Complete MTD-736-0270
...
24
Idler Bracket Not part of Transmission Complete MTD-682-0054
...
25
Hex Patch L-Nut 1/4 - 28 Thd. Not part of Transmission Complete MTD-712-0138
...
26
Extension Spring 1.12" Lg. Not part of Transmission Complete MTD-732-0357A
...
27
Lower Hsg. Half New Part MTD-717-0419B
...
28
Flange Bearing .566 ID MTD-941-0415
...
29
Shaft Ass'y. MTD-717-0616A
...
30
Flange Bearing .629 Dia. New Part MTD-741-0414
...
31
Oil Seal .625 Dia. MTD-721-0213
...
33
L-Wash. #10 I.D. MTD-736-0722
...
34
Hex Wash. Hd. Self-Tap Scr. MTD-710-0651
...
35
Hex Washer .26" x .88" Not part of Transmission Complete MTD-736-0410
...
36
Belt Keeper Not part of Transmission Complete MTD-782-7569
...
xx
Transmission Comp. See Transmission For Breakdown MTD-917-0417B
...
...
...
Processing
