Lawn Chief 31AE172-022 (2001) Snow Thrower

Model: 31AE172-022 (2001)

Save Part Not Listed?
product name

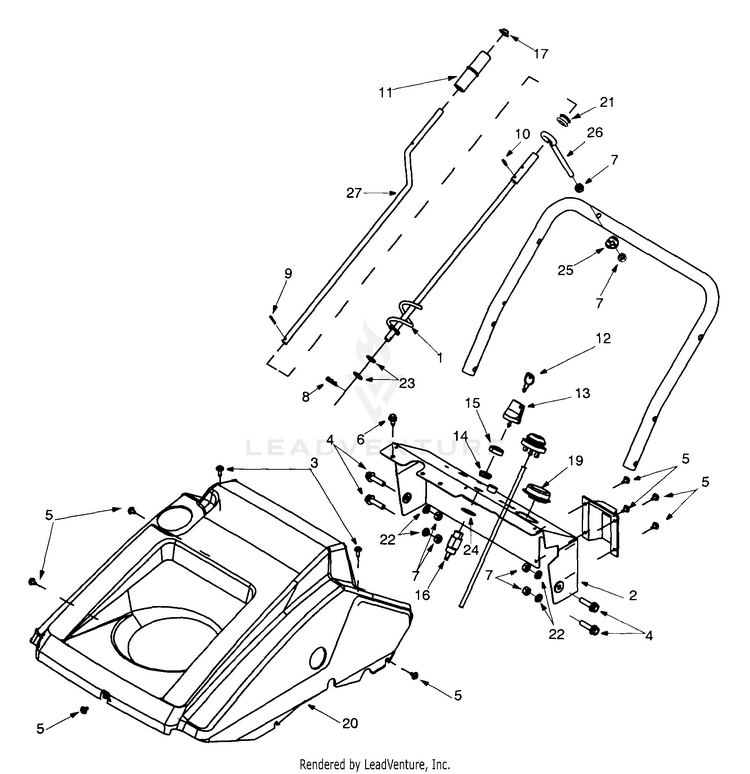

Chute, Crank And Dash

...
...
1
LOWER CHUTE CRANK (POWDER BLACK) MTD-684-0126-0637
...
2
PANEL ASSEMBLY-DASH MTD-684-0160
...
3
Special Screw, #10-16 x .625 MTD-710-04669
...
4
Hex Flange Screw 5/16-18 x 1.25" MTD-710-1090
...
5
Special Screw MTD-710-1268
...
6
Self-Tapping Screw 1/4-20 x .625" MTD-710-1652
...
7
HEX NUT 5/16-18 MTD-712-3010
...
8
Hairpin Clip MTD-714-0104
...
9
Cotter Pin MTD-714-0507
...
10
Rolled Pin, 1/8 x .63 MTD-915-0138
...
11
Knob: Chute Crank MTD-720-0201A
...
12
Key MTD-925-0201
...
xx
Key MTD-925-0201
...
13
UNKNOWN MTD-NA
...
14
IGNITION SWITCH NUT MTD-925-1346
...
15
Ignition Switch Cap MTD-725-1347
...
16
Ignition Switch MTD-925-1425
...
17
Push Cap MTD-726-0100
...
?18
COVER-CHOK MTD-731-1089A
...
19
Cap MTD-731-11338
...
20
SHROUD - BLACK MTD-731-1765
...
21
Rubber Grommet MTD-735-0234
...
22
Lock Wash. 5/16" I.D. MTD-936-0119
...
23
Flat Washer: .375 x .738 x .063 MTD-736-0185
...
24
Int. Lock Washer: 5/8 x 1.058 x .046 MTD-736-0225
...
25
Saddle Washer 320 ID x .93 OD MTD-736-0451
...
26
EYEBOLT MTD-747-0697
...
27
Upper Chute Crank MTD-747-0737-0637
...
?28
SPACER-.38IDX.500 x 2.50LG MTD-950-0785

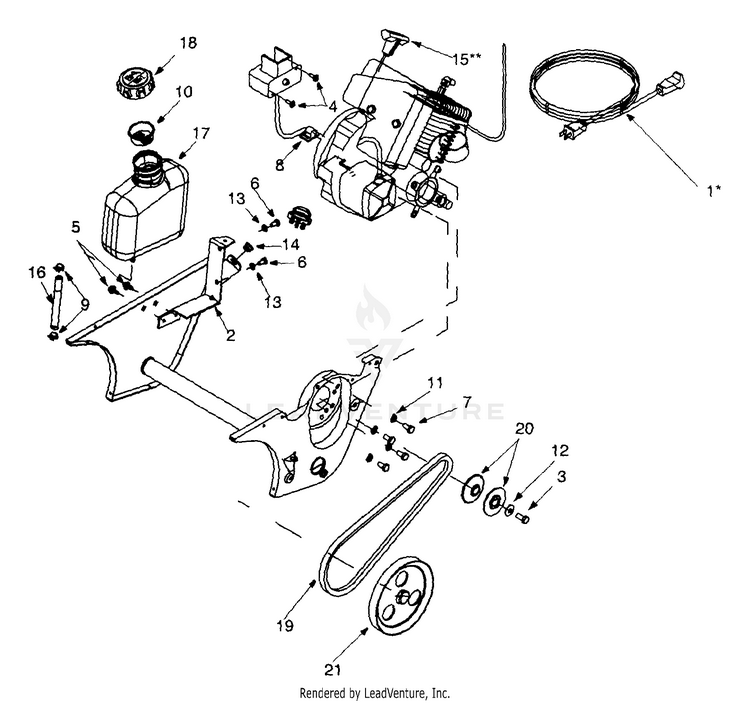

Drive And Fuel Tank

...
...
1
2 PRONG EXTENSION CORD MTD-629-0236
...
2
FUEL TANK BRACKET MTD-705-5139A-0637
...
3
Hex Screw 5/16-24 x .75" MTD-710-0157
...
4
Special Screw, #10-16 x .625 MTD-710-04669
...
5
Self-Tapping Screw MTD-710-1652
...
6
Hex Screw 114-20 x .50" MTD-710-3013
...
7
Hex Screw 5/16-24 x 625 MTD-710-3025
...
8
CLAMP-MTG MTD-726-0152
...
9
Hose Clamp MTD-726-0205
...
10
Cup MTD-731-2113A
...
11
Lock Wash. 5/16" I.D. MTD-936-0119
...
12
Beleville Washer MTD-736-0242
...
13
L-Wash. 1/4" I.D. MTD-936-0329
...
14
BUSHING .380 ID MTD-941-0475
...
15
Recoil Handle Obtain from engine manufacturer MTD-NA
...
16
Fuel Line Hose MTD-751-0535
...
17
FUEL TANK 2 QT. MTD-751-0540A
...
18
TANK CAP MTD-751-0603B
...
19
V-Belt 1/2 x 35.0" Lg. MTD-954-0101A
...
20
V-Pulley Half MTD-756-04168
...
21
Pulley MTD-756-0475
...
xx
STARTER KI (Optional) MTD-OEM-390-996

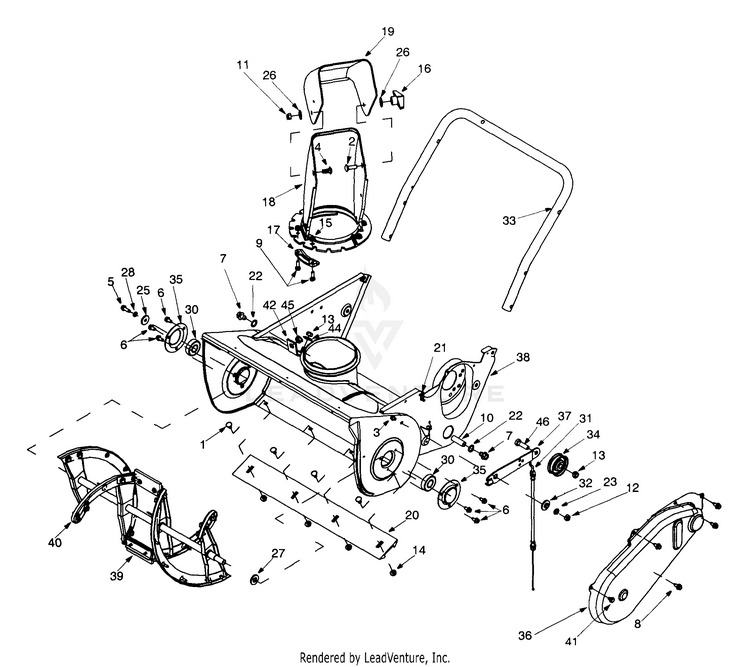

General Assembly

...
...
1
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
2
Carriage Bolt MTD-710-0276
...
3
Pan Head Screw MTD-710-0323
...
4
Carriage Bolt MTD-710-0451
...
5
Hex Washer Screw MTD-710-0642
...
6
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
7
Hex Washer Screw MTD-710-0773
...
8
Hex Washer Screw MTD-710-0896
...
9
Hex Cap Screw MTD-710-3015
...
10
WHEEL AXLE SERVICE KIT MTD-753-05480
...
11
Hex Center Lock Nut MTD-712-0429
...
12
HEX NUT 5/16-18 MTD-712-3010
...
13
Hex Lock Nut MTD-712-0116
...
14
LOCK NUT 1/4 MTD-912-3027
...
15
LOCK NUT 1/4 MTD-912-3027
...
16
Knob MTD-720-0284
...
17
Chute Keeper MTD-731-0851A
...
18
Lower Chute MTD-731-09158
...
19
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
20
Shave Plate MTD-731-1033
...
21
Extension Spring MTD-732-0357A
...
22
Flat Washer MTD-736-0108
...
23
Lock Wash. 5/16" I.D. MTD-936-0119
...
25
Flat Washer MTD-736-0176
...
26
Washer MTD-736-0159
...
27
Flat Washer MTD-736-0326
...
28
L-Wash. 1/4" I.D. MTD-936-0329
...
30
BALL BEARING MTD-941-0600
...
31
Cable, 41.78" MTD-946-0910A
...
32
Spacer MTD-748-0234
...
33
LOWER HANDLE MTD-749-0796
...
34
Flat Idler MTD-756-0313
...
35
BEARING CUP (POWDER BLACK) MTD-784-5174-0637
...
36
BELT COVER SINGLE (POWDER BLACK) MTD-790-00045C-0637
...
37
Idler/Brake Bracket MTD-784-5175E
...
38
21" HOUSING MTD-684-0114
...
39
AUGER ASSEMBLY MTD-984-04027A
...
40
Auger Rubber Replacement MTD-753-0613
...
41
Hex Washer Screw MTD-710-0352
...
42
CRANK BRACKET MTD-784-5720-0637
...
?43
Cap Screw MTD-710-0451
...
44
Bell Washer MTD-736-0242
...
45
BUSHING .380 ID MTD-941-0475
...
46
Hex Screw MTD-710-0191

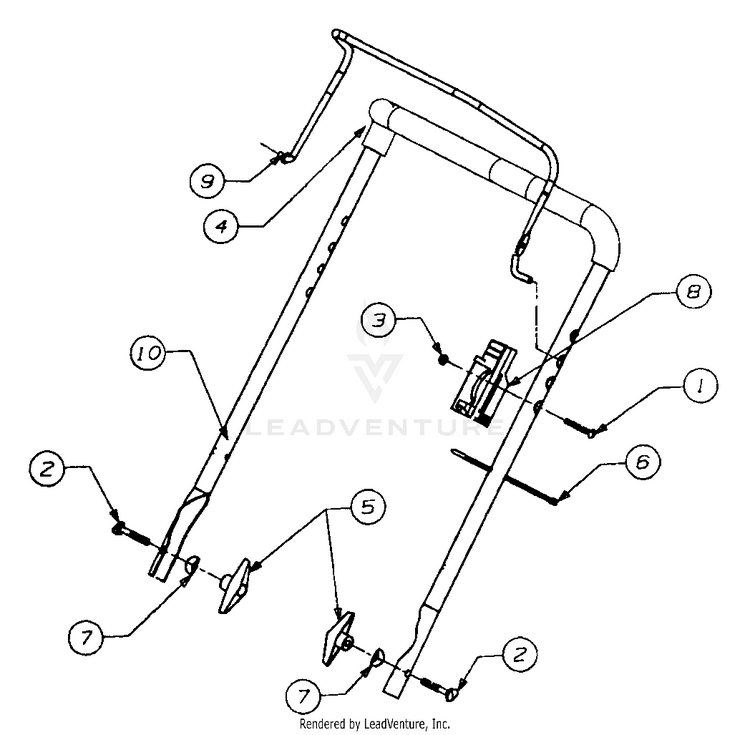

Upper Handle

...
...
1
SCREW 1/4-20 x 1.310 MTD-710-1270
...
2
Carriage Bolt MTD-710-0487
...
3
Lock Nut MTD-712-0324
...
4
Foam Grip MTD-720-0295
...
5
Handle Knob MTD-720-0284
...
6
Cable Tie MTD-725-0157
...
7
Saddle Washer MTD-736-0451
...
8
Control Lever MTD-746-0883
...
9
Control Handle Assembly MTD-747-0956
...
10
UPPER HANDLE MTD-749-0711A

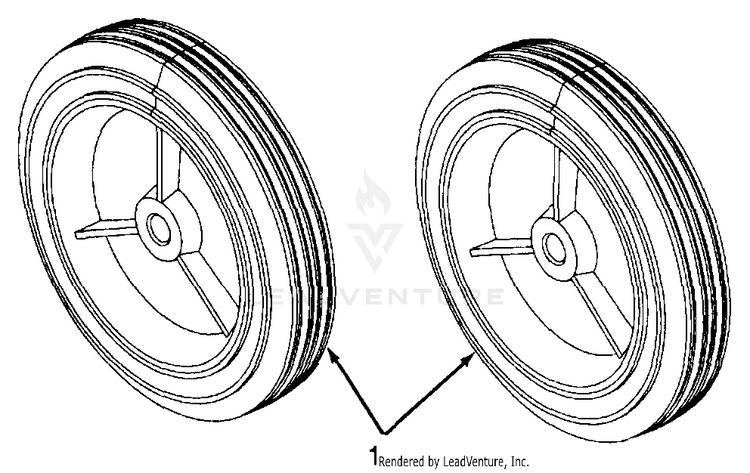

Wheel Assembly

...
...
1
WHEEL ASSEMBLY W/TIRE MTD-734-1176
