Lawn Chief 13AH660F022 (1999) Lawn Tractor

Model: 13AH660F022 (1999)

Back To Assemblies


product name

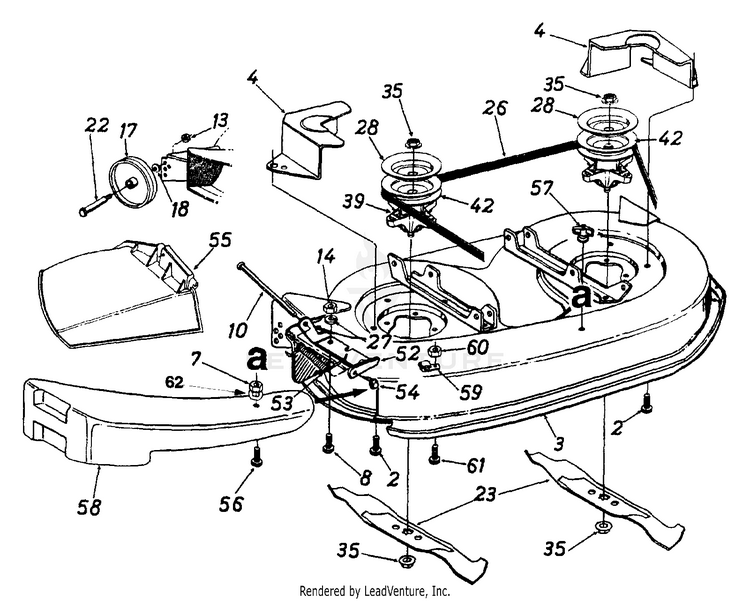

Deck Assembly "F"

...
...
2
Hex Wash. TT-Tap Scr. 5/16-18 x .75" MTD-710-1260A

...
3
38" DECK ASSEMBLY (Must be ordered with 4 digit color code.) MTD-983-0129A

...
xx
KIT-DECK 38" S (For Service) (Must be ordered with 4 digit color code.) MTD-753-0694

...
4
DECK BELT COVER MTD-783-0343A

...
7
HEX NUT (Optional) MTD-712-3006

...
8
SCREW 1/4-20 x .620 GR5 MTD-710-0751

...
10
Hinge Pin MTD-911-0792

...
13
Hex Top L-Nut 3/8-16 Thd. MTD-712-0181

...
14

...
17
DECK WHEEL (5.0 DIA X 1.38) MTD-734-06265

...
18
Bell-Wash. .40" I.D. x .88" O.D. MTD-736-0105

...
22
Shld. Bolt .498" Dia. x 1.53" MTD-938-0373

...
23
3 in 1 Blade MTD-942-0610A

...
26

...
27
SPRING WASHER BELL MTD-736-0270

...
28
BRAKE DISC BRACKET MTD-783-0342A

...
?33
Hex Bolt 5/16-24 x .75" Lg. MTD-710-0157

...
35
HEX NUT Deck pulleys and blades nuts must be torqued to 100 ft. lbs. if removed or replaced MTD-712-0417A

...
?37
L-Wash. 5/8" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-736-0158

...
39
Blade Spdl Ass'y. (Incl. Ref. 28, 35, 42) MTD-918-0138C

...
42
5" Dia. Pulley Deck pulleys and blades nuts must be torqued to 100 ft. lbs. if removed or replaced MTD-756-0969

...
52
Hinge Mtg. Brkt. MTD-703-1693A

...
53
Torsion Spring MTD-732-0602A

...
54
PUSH NUT MTD-726-0106

...
55
CHUTE ASSEMBLY (Incl. Ref.10, 52, 53, 54, 55) MTD-631-05229

...
56
SCREW 1/4-20 X1.00 GR5 (Optional) MTD-710-0597

...
57
WING NUT 1/4-20 (Optional) MTD-712-3087

...
58
MULCH KIT- 38/42" (Optional) MTD-OEM-190-116

...
59
Retainer Hook Bracket MTD-96606

...
60
Hex Sems Nut 1/4-20 Thd. MTD-712-0271

...
61
SCREW 1/4-20 x .620 GR5 MTD-710-0751

...
62
Flat Washer .28 ID x .74 OD MTD-736-0173
Schematic Image Zoomed
