Lawn Chief 13AG619H022 (2000) Lawn Tractor

Model: 13AG619H022 (2000)

Back To Assemblies

Save Part Not Listed?
product name

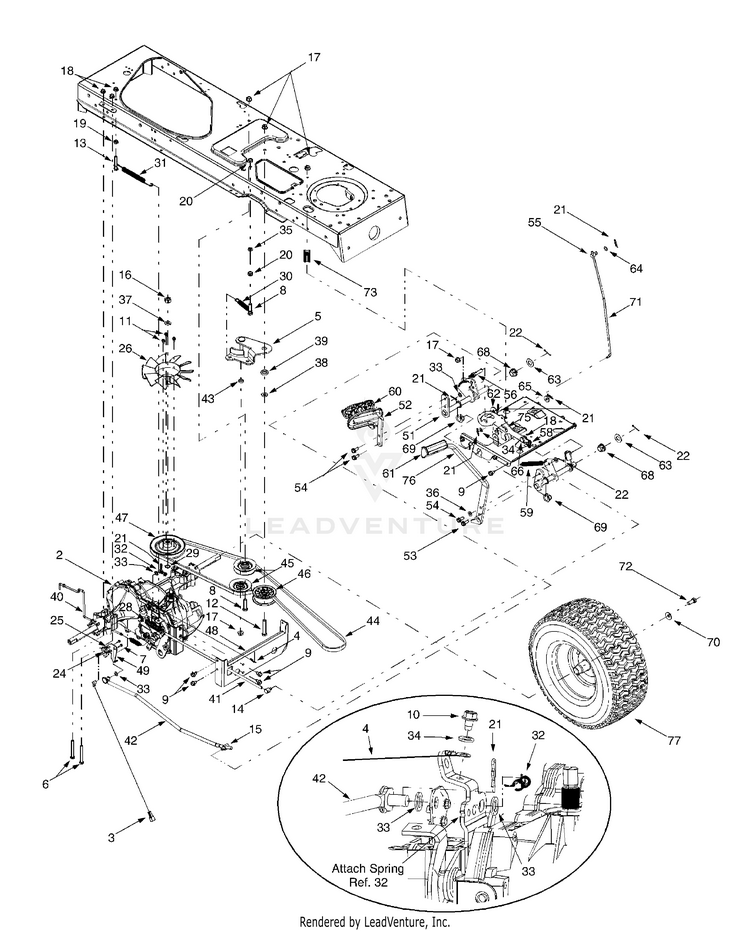

Drive, Wheels Rear, Pedals

...
...
?1
Transaxle Mounting Bracket MTD-17840-0637
...
2
TRANSMISSION ASSEMBLY MTD-918-0319
...
3
Reverse Wire Harness Adapter MTD-629-0922
...
4
Reverse Wire Harness Ground MTD-629-0933
...
5
BRACKET-DOUBLE IDLER PWR BL MTD-683-0251
...
6
Hex Cap Screw, 5/16-18 x 2.75 MTD-710-0176
...
7
Screw, #8-18 x .5 MTD-710-0227
...
8
Hex Cap Screw, 3/8-16 x 1.5 MTD-710-0344
...
9
Self-tapping Screw, 5/16-18 x .625 MTD-710-0604A
...
10
Self-tapping Screw, 1/4-20 x .375 MTD-710-0653
...
11
Screw, #12-24 x .375 MTD-710-3007
...
12
Hex Cap Screw, 3/8-16 x 2.25 MTD-710-3011
...
13
Hex Cap Screw, 5/16-18 x 2.0 MTD-710-3103
...
14
Engagement Ferru MTD-911-0677
...
15
Ferrule 3/8-24 Thd. MTD-911-0832
...
16
HEX NUT GRADE 2 MTD-712-0333
...
17
Flange Lock Nut 3/8-16 MTD-912-0431
...
18
HEX FLANGE NUT MTD-712-3004A
...
19
HEX NUT 5/16-18 MTD-712-3010
...
20
HEX NUT 3/8-16 GR5 MTD-712-3017
...
21
Internal Cotter Pin MTD-714-0104
...
22
Cotter Pin MTD-714-0111
...
?23
Cable Tie MTD-725-0157
...
24
SAFETY SPRING SWITCH MTD-725-1644
...
25
Insulatop Nut Plate MTD-926-0320
...
26
Fan MTD-931-1449A
...
?27
Spring MTD-932-0209
...
28
Ext. Spring .59 OD x 4.00 Lg. MTD-732-0716D
...
29
Wire Ring MTD-732-0729
...
30
EXTENSION SPRING .50"DIA x 3.5"LG MTD-732-0965
...
31
Extension Spring, .5 x 7.0 MTD-732-0994
...
32
Extension Spring, 3/8 x 1.44 MTD-732-3118
...
33
Flat Washer, .385 x .62 x .063 MTD-736-0140
...
34
Flat Washer, .281 x .50 x .063 MTD-736-0142
...
35
Lock Washer, 3/8 MTD-736-0169
...
36
FLAT WASHER MTD-736-0275
...
37
Lock Washer, 1/2 MTD-736-0921
...
38
Flat Washer, .407 x .812 x .135 MTD-736-3010
...
39
Shoulder Spacer, .380 ID MTD-738-0372B
...
40
Hydrostatic Bypass Rod MTD-747-1149
...
41
BRAKE ROD MTD-747-1150
...
42
CONTROL ROD MTD-747-1151
...
43
Spacer.380" I.D. x .625" O.D. x .227 MTD-950-0535
...
44
V-Belt MTD-954-0349
...
45
Idler Pulley MTD-756-04209
...
46
Flat Idler Pulley MTD-756-04224
...
47
INPUT PULLEY 5" DIA MTD-756-1166
...
48
TRANSMISSION TORQUE BRACKET MTD-783-0810B-0637
...
49
SWITCH BRACKET MTD-783-1019B
...
?50
SERVICE REPLACEMENT KITLAC MTD-753-05606
...
51
HYDRO CONTROL ASSEMBLY (POWDER BLACK) MTD-647-0049A-0637
...
52
CONTROL PEDAL ASSEMBLY MTD-683-0267C
...
53
Self-tapping Screw, 5/16-18 x .875 MTD-710-0650
...
54
Self-tapping Screw, 5/16-18 x .75 MTD-710-1260A
...
55
ADJUSTMENT FERRULE 1/4-20 x 1.00 MTD-711-0736
...
56
PIN 3/8-16 x 2.21 MTD-711-1363
...
?57
Compression Spring, .34 OD x 1.0 MTD-732-0437
...
58
Extension Spring, .50 OD x 1.41 MTD-732-0955
...
59
Extension Spring, .50 OD x 6.37 MTD-732-0963
...
60
Drive Pedal Pad MTD-735-0662
...
61
Brake Pedal Pad MTD-735-3049A
...
62
Flat Washer, .411 x 1.25 x 1.0 MTD-736-0133
...
63
Flat Washer, .64 x 1.24 x .06 MTD-736-0187
...
64
Flat Washer, .344 x .062 x .03 MTD-736-0204
...
65
Flat Washer, .406 x .875 x .105 MTD-736-3004
...
66
Shoulder Bolt MTD-938-0155
...
?67
Shoulder Screw, .5 x .434 MTD-738-0507B
...
68
FLANGE BEARING MTD-941-0225
...
69
Split Hex Flange Bearing MTD-741-3065B
...
70
Bell Washer, .34 x .872 MTD-736-0242
...
71
LOCK CONTROL BRAKE ROD MTD-747-1138
...
72
Hex Cap Screw, 5/16-24 x .75 MTD-710-0627
...
73
SPACER .385ID x 1.54" MTD-748-0415B
...
?74
Steering Support Bracket MTD-783-04612-0637
...
75
LOCKOUT BRACKET MTD-783-0663E
...
76
BRAKE PEDAL MTD-783-0773
...
77
Wheel Assembly Complete, 20 x 10 x 8, Square Shoulder MTD-634-0177
...
xx
Wheel Assembly Complete 20 x 8 x 8, Square Shoulder MTD-634-0104
...
xx
Wheel Assembly Complete 20 x 8 x 8, Round Shoulder MTD-734-1675
...
xx
Rim Only MTD-634-0077
...
xx
TUBELESS VALVE (Not Shown) MTD-934-0255
...
xx
Tire Only, 20 x 10 x 8, Square Shoulder MTD-734-1873
...
xx
TIRE-20X8 MULTI TRAC MTD-734-1730
...
xx
Tire Only, 20 x 8 x 8, Round Shoulder MTD-734-1596
