product name

Lawn Chief 13AG619H022 (2000) Lawn Tractor

Model: 13AG619H022 (2000)

Back To Assemblies

Save Part Not Listed?
product name

Electrical System

...
...
725-1736
SEAT SWITCH MTD-925-1747
...
725-1657A
Safety Switch MTD-925-1657A
...
725-1741
Ignition Switch MTD-925-1741
...
725-1657A
Safety Switch MTD-925-1657A
...
725-1426
Solenoid MTD-925-1426A
...
725-1381
FUSE-20A MTD-925-1381
...
725-1643
Reverse Sw. MTD-725-1643

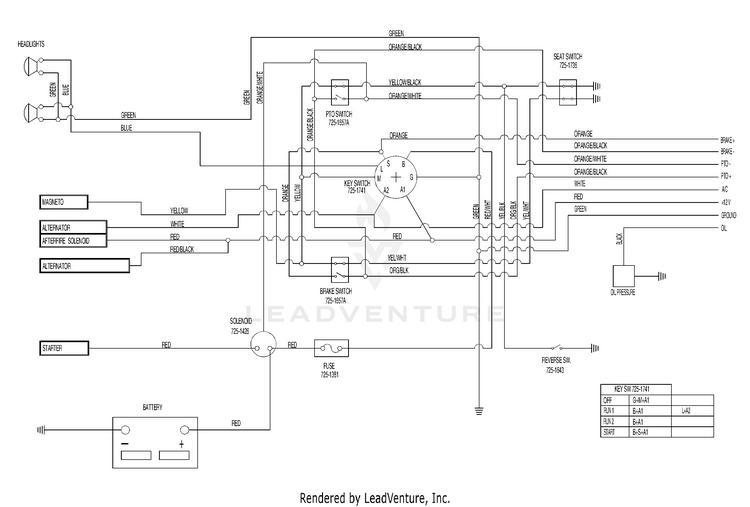

Schematic Image Zoomed
