LG ZW6510R.AWYAZNU

Model: ZW6510R.AWYAZNU

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Capacitor,film,box L-G-0CZZA20007W
...
35211A
Tube Assembly,suction L-G-AJR73084902
...
130410
(130410) Base Assembly,weld L-G-3041A20036R
...
130910
Cabinet L-G-MBH61852210
...
135301
(135301) Grille Assembly,front L-G-3530AR1615S
...
135312
Grille Assembly,front L-G-3531A20087H
...
135313
(135313) Grille,inlet L-G-MDX41759001
...
145200
Holder L-G-4520AR3191A
...
147582-1
Vane L-G-5990AR3190C
...
147582-2
Vane L-G-5990AR3190D
...
149980
Shroud L-G-MHN61903101
...
152302
Room Air Conditioner Air Filter L-G-5231AR2148A
...
237200
Control Panel L-G-3720A20017A
...
238310
(238310) Escutcheon L-G-MDD42503001
...
249950
Case Assembly,control L-G-ABQ57504316
...
263230
Room Air Conditioner Thermistor L-G-6323A20003S
...
264110
Room Air Conditioner Power Cord L-G-6411A20056A
...
267110
Remote Controller Assembly L-G-AKB73016001
...
268711-1
Display Board L-G-6871A20432B
...
268711-2
Power Control Board Assembly L-G-EBR39266613
...
346811
Motor Assembly,ac,single L-G-4681A10016Z
...
349480
Orifice L-G-4948A10016C
...
352113
Tube,discharge L-G-MJU62089101
...
352115
Tube Assembly,evaporator(in) L-G-AJR73084404
...
352390-1
(352390-1) Guide Assembly,air L-G-AEC36811301
...
352390-2
Air Guide L-G-AEC36596101
...
354210
Evaporator L-G-ADL72909101
...
359012
Turbo Fan L-G-MDG41758702
...
550140
Room Air Conditioner Compressor Grommet L-G-5040AR4195A
...
552113
Tube Assembly,condenser(out) L-G-AJR73084601
...
554030
Condenser L-G-5403A20038H
...
554160
Compressor Set,china L-G-TBZ34781401
...
559011
Axial Fan L-G-5901A20011B
...
567502
(567502) Overload Protect L-G-6750U5L007A
...
731273
Room Air Conditioner Accordion Filler Kit L-G-3127A20074B
...
749740
Guide Assembly, Air L-G-5210AR3196N

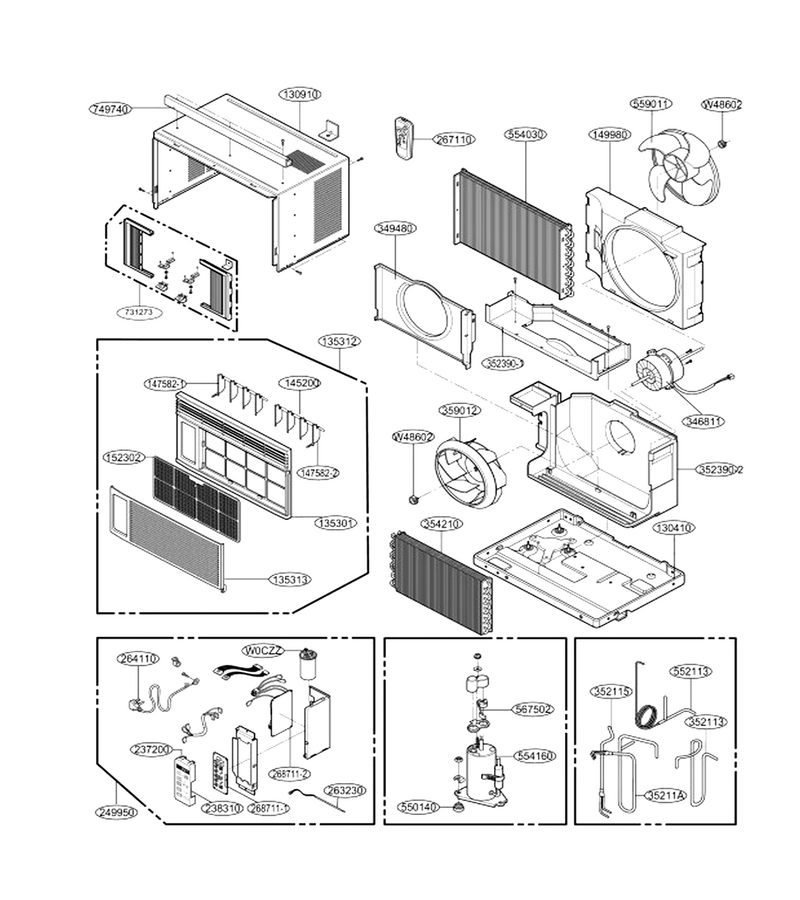

Schematic Image Zoomed
