product name

LG ZQ05C10.AWYAFRD

Model: ZQ05C10.AWYAFRD

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-0CZZA20005B
...
35211A
Tube Assembly,suction L-G-5211A10062K
...
130410
Base Assembly,weld L-G-3041A20036G
...
130910
Cabinet L-G-3091AR6055M
...
135312
Grille Assembly,front L-G-3531AR1644B
...
135313
Grille,inlet L-G-3530AR1617A
...
135500
Terminal Cover L-G-3550UTL006A
...
147581
Holder L-G-4520AR3191A
...
147582-1
Vane L-G-5990AR3190A
...
147582-2
Vane L-G-5990AR3190B
...
149410
Knob Assembly L-G-4941AR7315A
...
149980
Shroud L-G-4998A10025A
...
152302
Room Air Conditioner Air Filter L-G-5231AR2148A
...
249950
Case Assembly,control L-G-4995A21015B
...
264110
Room Air Conditioner Power Cord L-G-6411A20056A
...
266003
Switch L-G-2H00154H
...
269310
Thermostat L-G-2H01109X
...
346811
Motor Assembly,ac,outdoor L-G-4681A10016C
...
349480
Orifice L-G-4948A10016B
...
352111
Tube Assembly,capillary L-G-5211A20743B
...
352113
Tube Assembly L-G-5210A21748B
...
352115
Tube Assembly,evaporator(in) L-G-5211A10063G
...
352380
Duct L-G-5238A20013B
...
352390
Air Guide L-G-5239A30003G
...
354210
Evaporator Assembly,first L-G-5421A10008C
...
359012
Turbo Fan L-G-5900A10005B
...
550140
Room Air Conditioner Compressor Grommet L-G-5040AR4195A
...
554030
Condenser L-G-5403A20038H
...
554160
Compressor L-G-2520UABC2JA
...
559011
Axial Fan L-G-5901A20011B
...
567502
Protector L-G-6750U-L050A
...
731273
Room Air Conditioner Accordion Filler Assembly L-G-3127A20074A
...
749740
Guide L-G-5210AR3196C

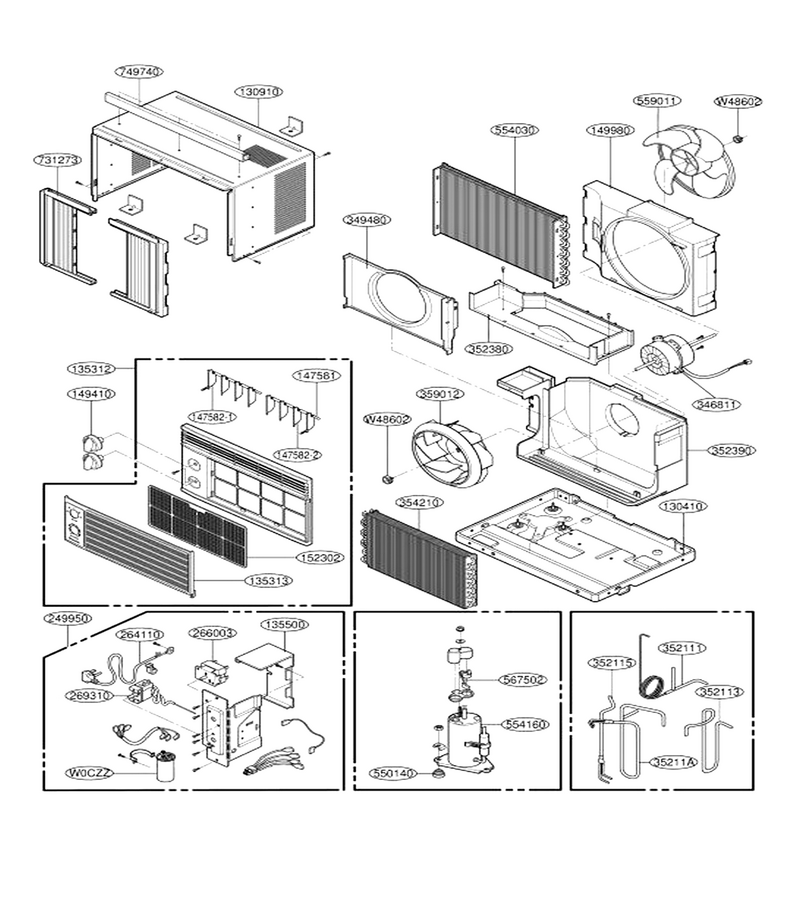

Schematic Image Zoomed
