LG YMT5071SG.ABKEWPC

Model: YMT5071SG.ABKEWPC

Save Part Not Listed?
product name

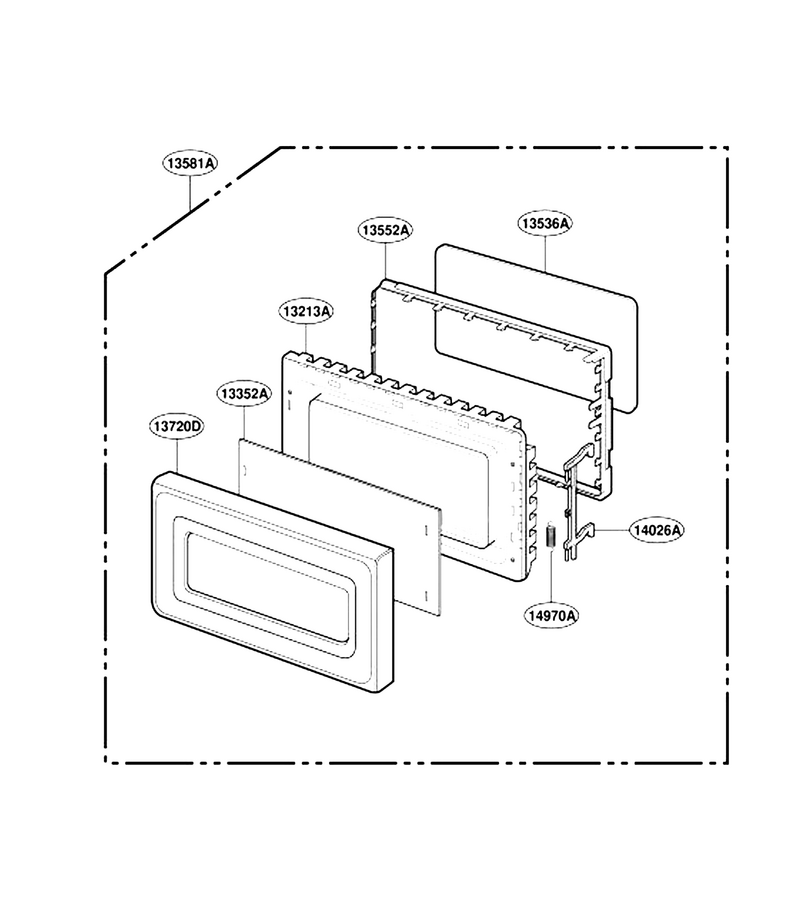

Door Parts

...
...
13213A
Frame Assembly,door L-G-3213W1A027B
...
13352A
Window,screen L-G-3352W2A039D
...
13536A
Tape,sealing L-G-3536WRA001J
...
13552A
Cover,choke L-G-3552W1A023A
...
13581A
Door Assy L-G-3581W1A163M
...
13720D
Panel,[door] L-G-3720W1D100R
...
14026A
Locker L-G-4026W2A011A
...
14970A
Spring L-G-4970WRA001C

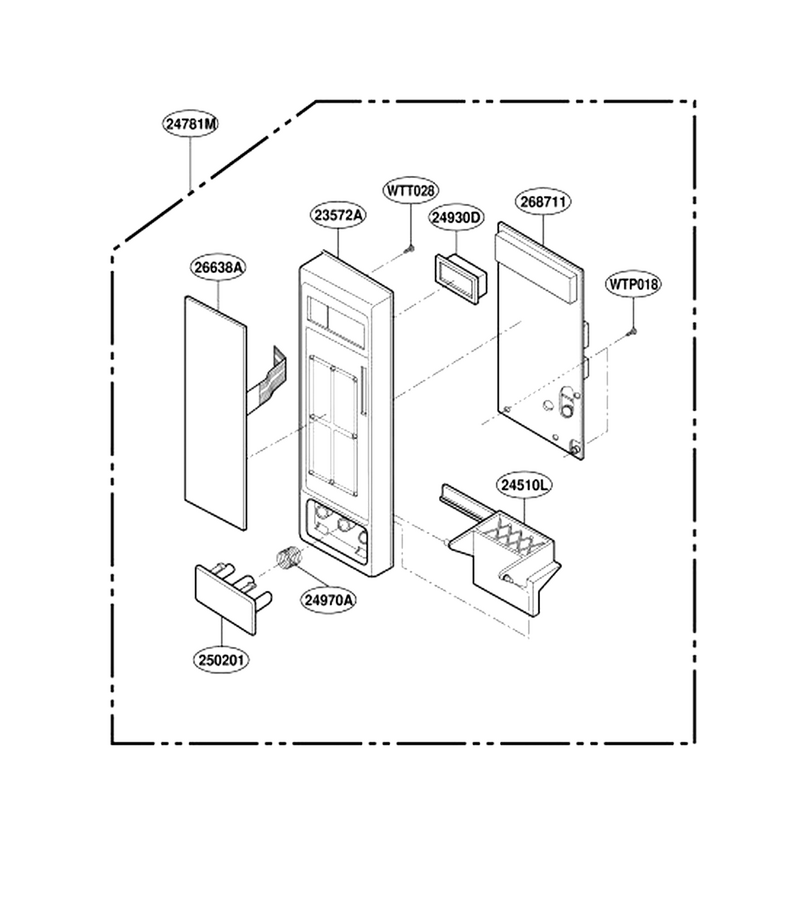

Controllel Parts

...
...
WTP018
Screw L-G-1TPL0402818
...
WTT028
Microwave Screw L-G-1TTL0402818
...
23572A
Panel,control L-G-3572W1A110B
...
24510L
Lever L-G-4510W3L002A
...
24781M
Controller Assy,[micom] L-G-4781W1M142C
...
24930D
Holder,display L-G-4930W3B027B
...
24970A
Microwave Door Release Button Spring L-G-4B72023A
...
26638A
Membrane L-G-6638W2A132B
...
250201
Button L-G-5020W3G098B
...
268771
Pcb Assembly,sub L-G-6871W2S110B

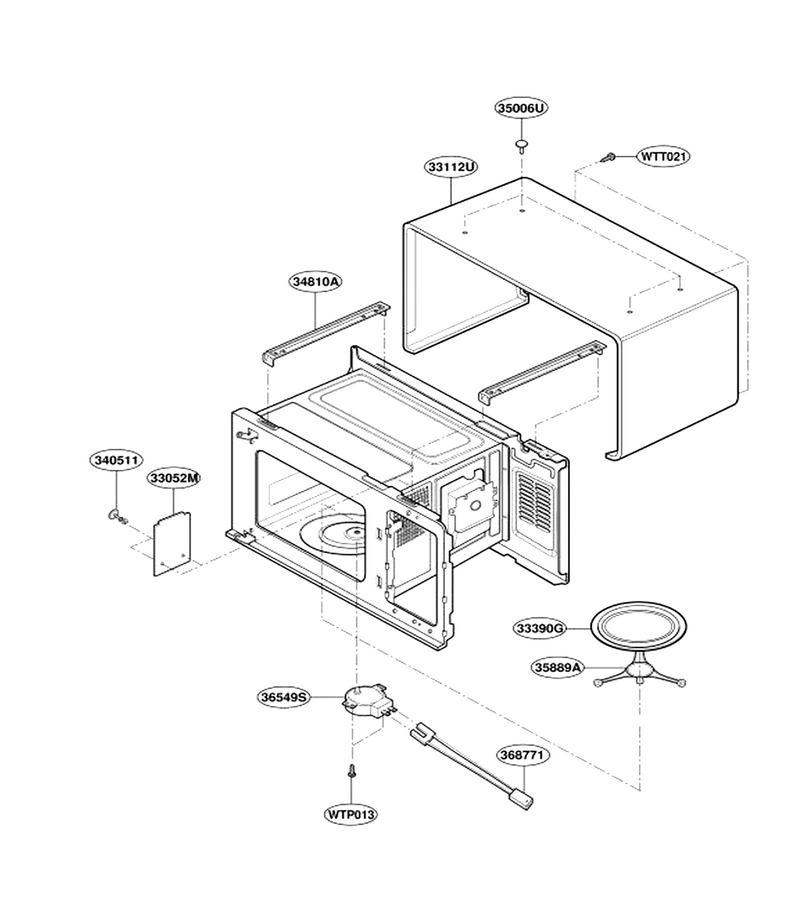

Oven Cavity Parts

...
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
33112U
Out Case,[u-Bending] L-G-3112W0U022T
...
33390G
Tray,glass L-G-3390W1G005A
...
34810A
Bracket,idle L-G-4810W2G044A
...
35006U
Cap,under Cabinet L-G-4B74749F
...
35889A
Turntable Assembly L-G-5889W2A009A
...
36549S
Motor, Ac Synchronous L-G-6549WRS001N
...
340511
Microwave Waveguide Cover Rivet L-G-4051W3A001A

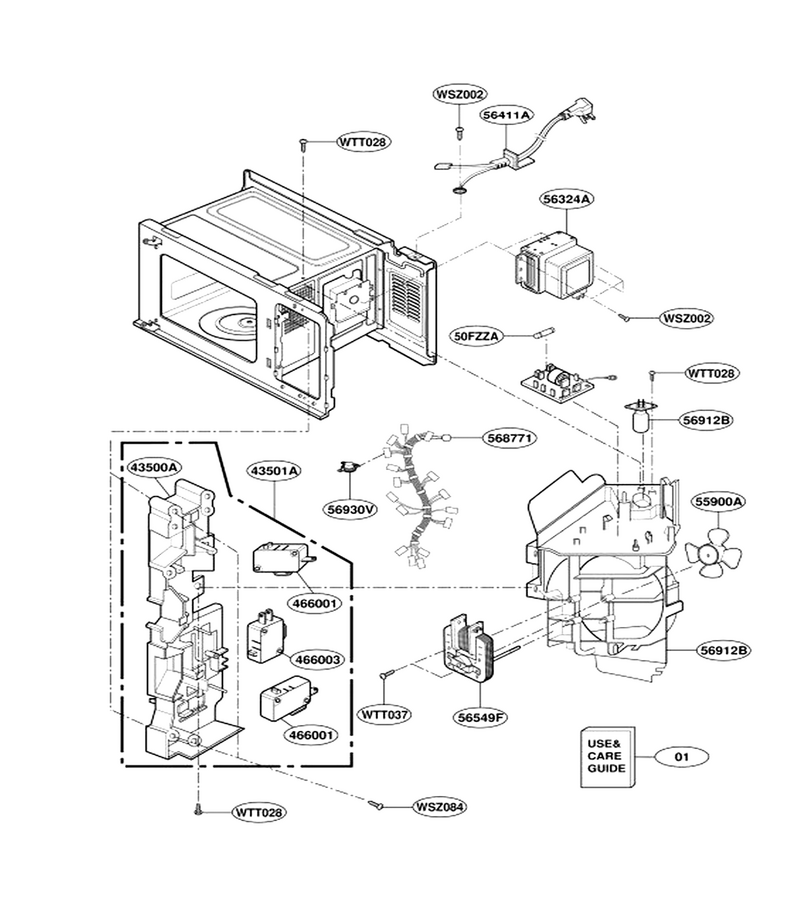

Interior Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WSZ084
Screw L-G-4B70188B
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WTT037
Microwave Tapping Screw L-G-1TTL0403818
...
50FZZA
Fuse, 15a L-G-3B70856G
...
43500A
Holder,locker L-G-3500WRA001A
...
43501A
Holder Assembly,locker L-G-3501WRA001E
...
55900A
Blower Fan L-G-2B72279B
...
56324A
Microwave Magnetron L-G-2B71732B
...
56411A
Power Cord Assembly L-G-6411W2A002G
...
56549F
Motor,ac Fan L-G-6549W2F017A
...
56912B
Microwave Light Bulb L-G-6912W3B002G
...
56930V
Microwave Thermostat L-G-6930W1A001J
...
466001
Microwave Micro Switch L-G-3B73362F
...
466003
Switch Micro L-G-3B73361E
...
568771
Harness,single L-G-6877WRT007D

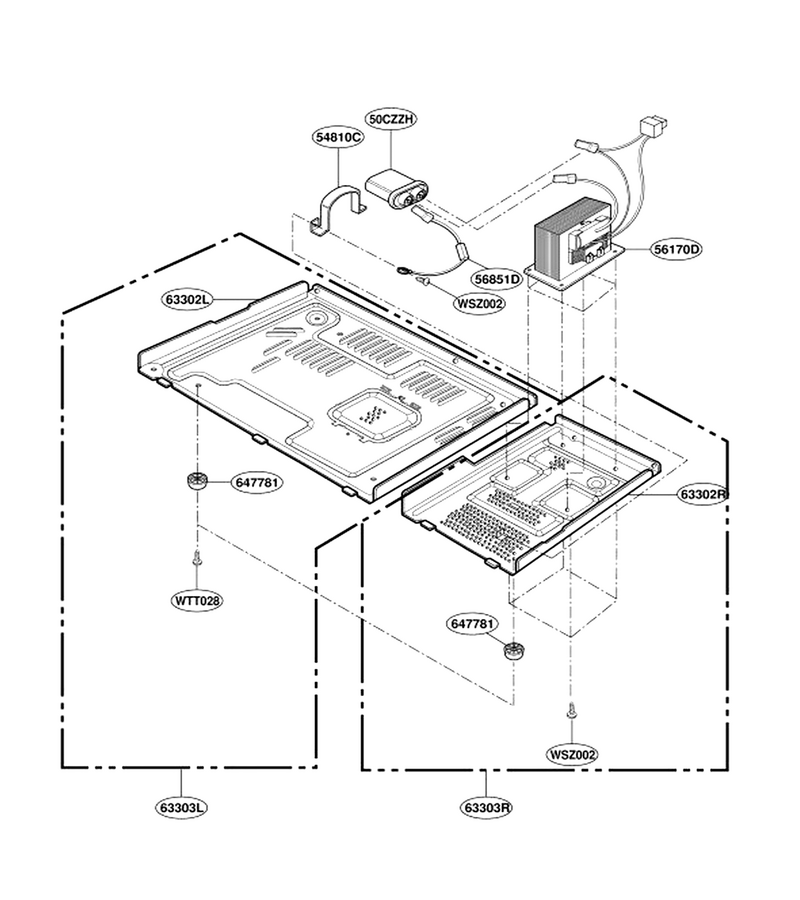

Base Plate Parts

...
...
50CZZH
Capacitor,high Voltage L-G-6120W3H003C
...
54810C
Bracket,capacitor L-G-4810W3C001A
...
56170D
Transformer,high Voltage L-G-6010W2H100A
...
56851D
Microwave High-Voltage Diode L-G-6021W3B001A
...
63302L
Base Plate L-G-3302W1A039A
...
63302R
Plate,base L-G-3302W1A040A
...
63303L
Base Plate Assy L-G-3303W1A019A
...
63303R
Plate Assembly,base L-G-3303W2A001A
...
647781
Foot L-G-4B73900A
